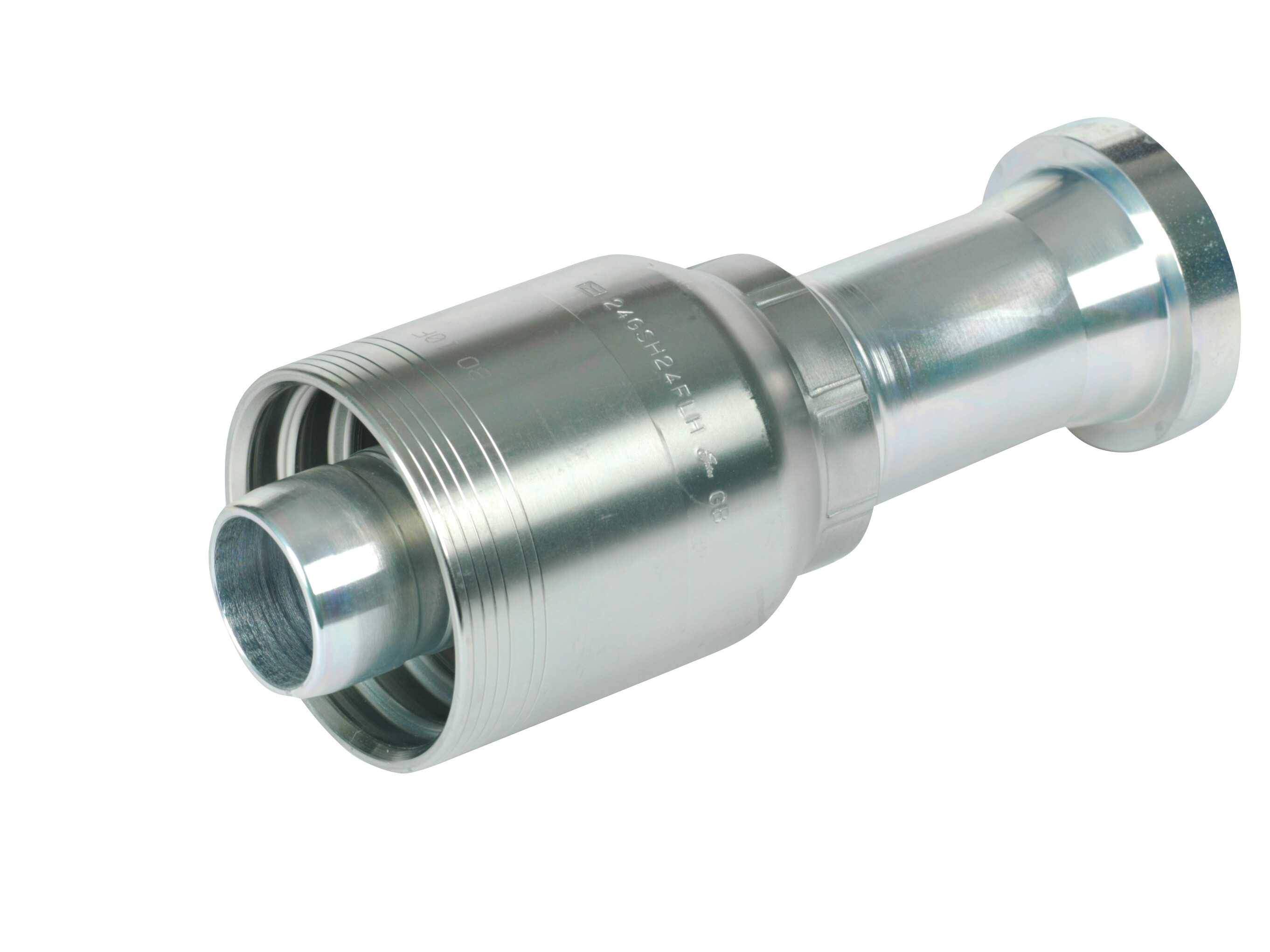

1.1/2" Coupling - 1.1/2" SAE6000 flange
Connection: SAE flange.
Sealing: O-ring against metal.
Varenummer:
24GSM24FLH
Pakke str.:
1 pcs
Min. bestillingsenhed er:
1 pcs
A
200 mm
Angle
0 °
B
105 mm
Brand Name
Gates
Corrosion resistance
500 hours salt spray ASTM B-117
D
1.1/2"
DN
40 mm
Diameter flange
63.5 mm
Flange
1.1/2 "
Flange SAE/DIN
6000 PSI
Hose coupling type
With fixed ferrule
Hose size
1.1/2 "
K
63,5 mm
Material
Steel
Model code
24GSM-24FLH
O-ring
47,22X3,53 mm
Pressure max.
420 bar
REACH compliant
Yes
RoHs compliant
Yes
Shore
90
Standard ISO
ISO 6162-2
Standard SAE
SAE J518 Code 62
Surface treatment
TuffCoat™
Torque tightening
158 - 181 Nm
Package size
1 pcs
Barcode
288069
Gross weight
1,87 Kg
Net weight
1,87 Kg
Country of origin
USA
Intrastat code
73269098
Connection: SAE flange.
Sealing: O-ring against metal.
