1.1/2" Coupling - 1.1/2" SAE3000 flange - 45°

Connection: SAE flange. Code 61.

Sealing: O-ring against metal.

Partnumber:

24GSM24FL45M

Package size:

1 pcs

Min. order quantity is:

1 pcs

Accessories (1)

SKYDDSHUV SAE3000-11/2

Partnumber: SAE3-11/2

Specifications
Dimensions and shipping

230 mm

135 mm

1.1/2"

40 mm

Diameter fläns

60.3 mm

44 mm

Fläns

1.1/2 "

Fläns SAE/DIN

3000 PSI

60,3 mm

Modell kod

24GSM-24FL45

Märke namn

Gates

O-ring

47,22X3,53 mm

REACH compliant

Yes

RoHs compliant

Yes

Rostbeständighet

500 hours salt spray ASTM B-117

Shore

Slangdimension

1.1/2 "

Slangkopplingstyp

With fixed ferrule

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Tillverkningsmaterial

Steel

Tryck max.

210 bar

Vinkel

45 °

Ytskiktbehandling

TuffCoat™

Package size

1 pcs

Barcode

288810

Gross weight

2,06 Kg

Net weight

2,06 Kg

Country of origin

USA

Intrastat code

73269098

Product information

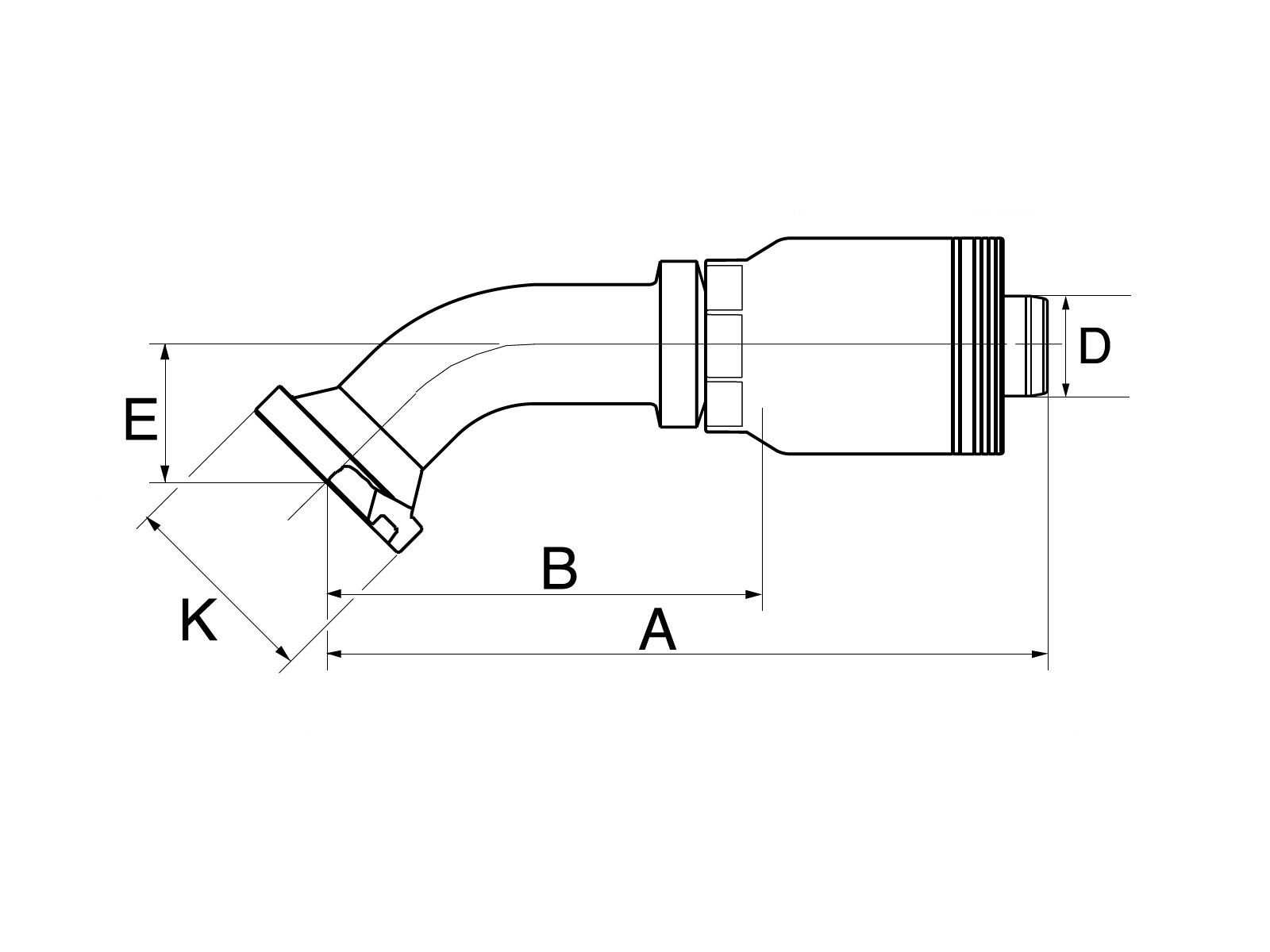

Measure sketch

Connection: SAE flange. Code 61.

Sealing: O-ring against metal.
