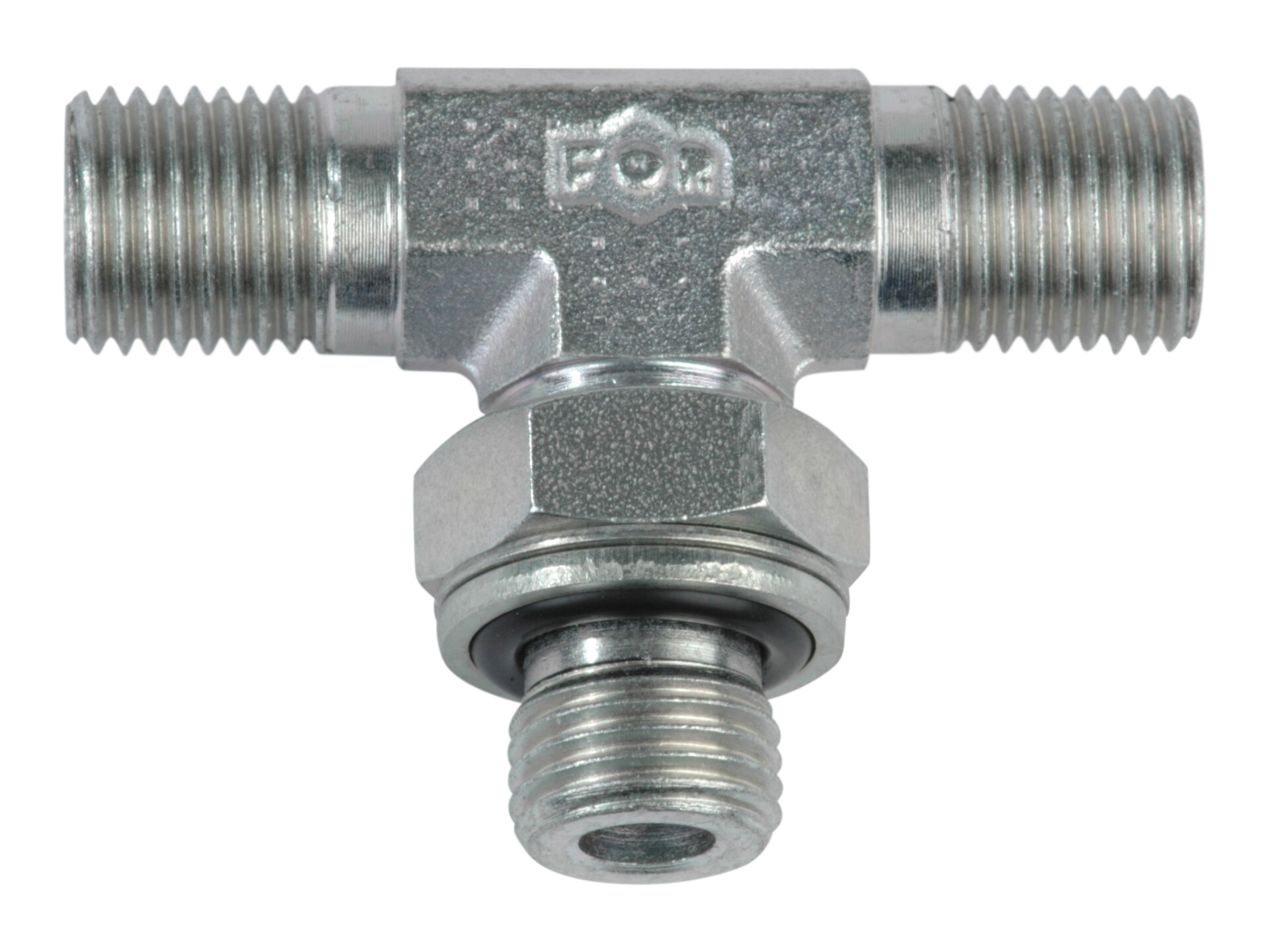

Tee with lock-nut

Partnumber:

239-04-04

Package size:

1 st

Min. order quantity is:

1 st

Specifications
Dimensions and shipping

Brand Name

FOR

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Dimension B

27 mm

Dimension B1

27 mm

Dimension CH

19 mm

Dimension D

31.5 mm

Dimension D

31.5 mm

Material

Steel

Pressure max.

400 bar

Size

6 mm

Surface treatment

Electro zinc plated

Thread F (See drawing)

G1/4 - BSP

Thread F1 (See drawing)

G1/4 - BSP

Thread F2 (See drawing)

G1/4 - BSP

Thread outer

G 1/4 BSP

Package size

1 st

Barcode

195118

Gross weight

0,07 Kg

Net weight

0,07 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

Tee with lock-nut

Note: Opening 3D files requires a program that supports the file format
