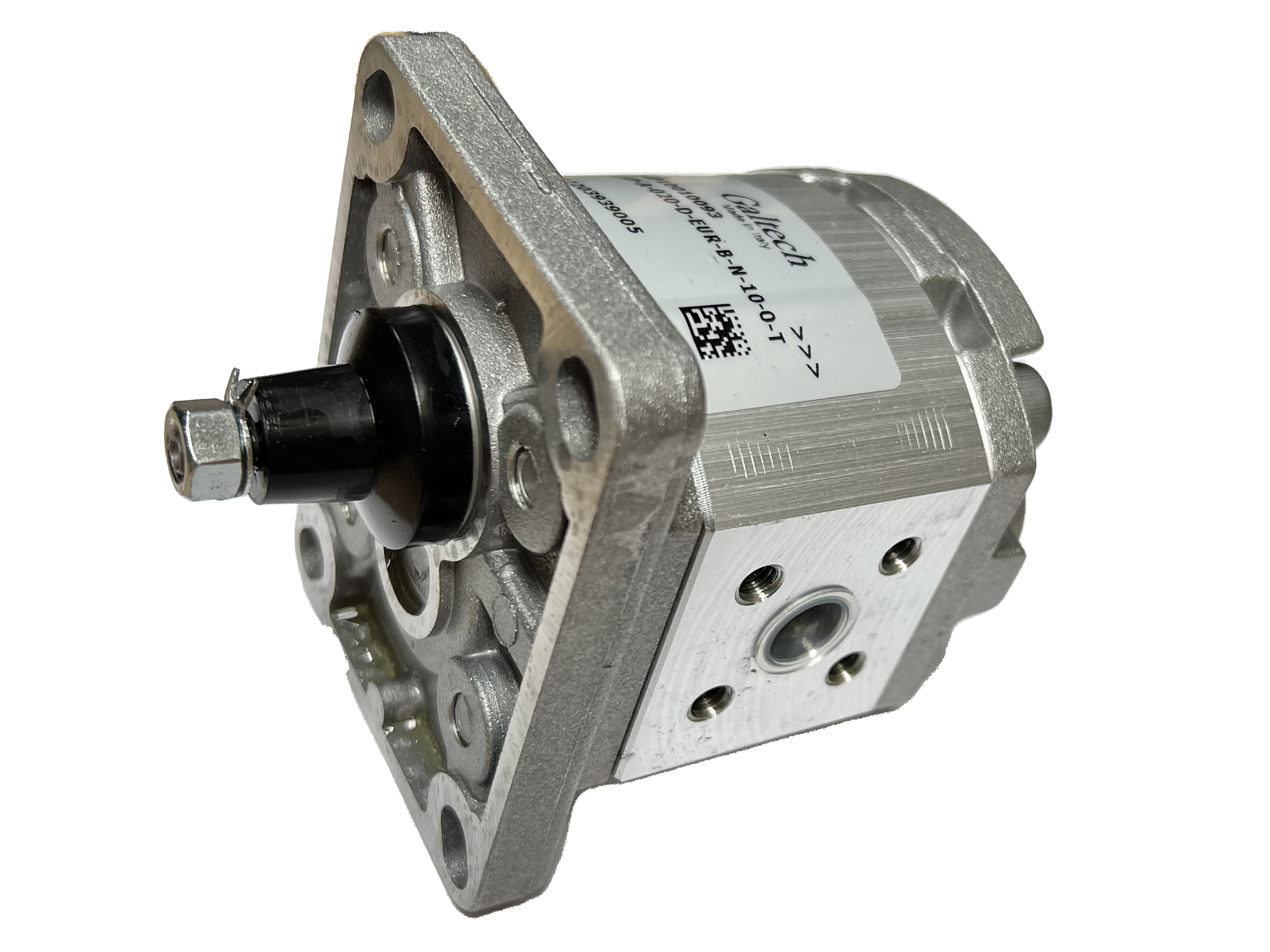

Pump 1SP-A-020-D-EUR-B-N-10-0-T

Gear Pump Gr.1 2.0ccm Flange 52X72 Shaft EUR 1:8 Ports GER 4-bolt-Aluminium Right

Partnumber:
1GP10010093

Package size:
1 st

Min. order quantity is:
1 st
Brand Name
Walvoil

Contamination level max.
21/18/15 - ISO 4406

Displacement
2 cm3

Flange size suction
1/2

Material
Aluminium

Model code
1SP-A-020-D-EUR-B-N-10-0-T

Mounting flange
EU25 - 72x52

Number of mounting holes
4

Oil viscocity recommended
15 - 92 cSt

Port inlet
EU30

Port outlet
EU30

Pressure continous max.
260 bar

Pressure intermittent max.
280 bar

Pressure peak max.
290 bar

Pump group
1

Recess
25,0 mm

Rotation direction
Right (CW)

Rotational speed max.
4000 rpm

Sealing material
NBR

Shaft cone
1:8

Shaft keyway
2,4 mm

Shaft type
Tapered

Temperature max.
+80 °C

Temperature min.
-20 °C

Torque input
3 daNm
Package size
1 st

Barcode
467917

Gross weight
Kg

Net weight
Kg

Country of origin
ITA

Intrastat code
84136031

Gear Pump Gr.1 2.0ccm Flange 52X72 Shaft EUR 1:8 Ports GER 4-bolt-Aluminium Right
