RELIEF VALVE CP211-1-B-0-E-B-XXX
CP211-1, Relief Valve, Direct Acting, Spool Type

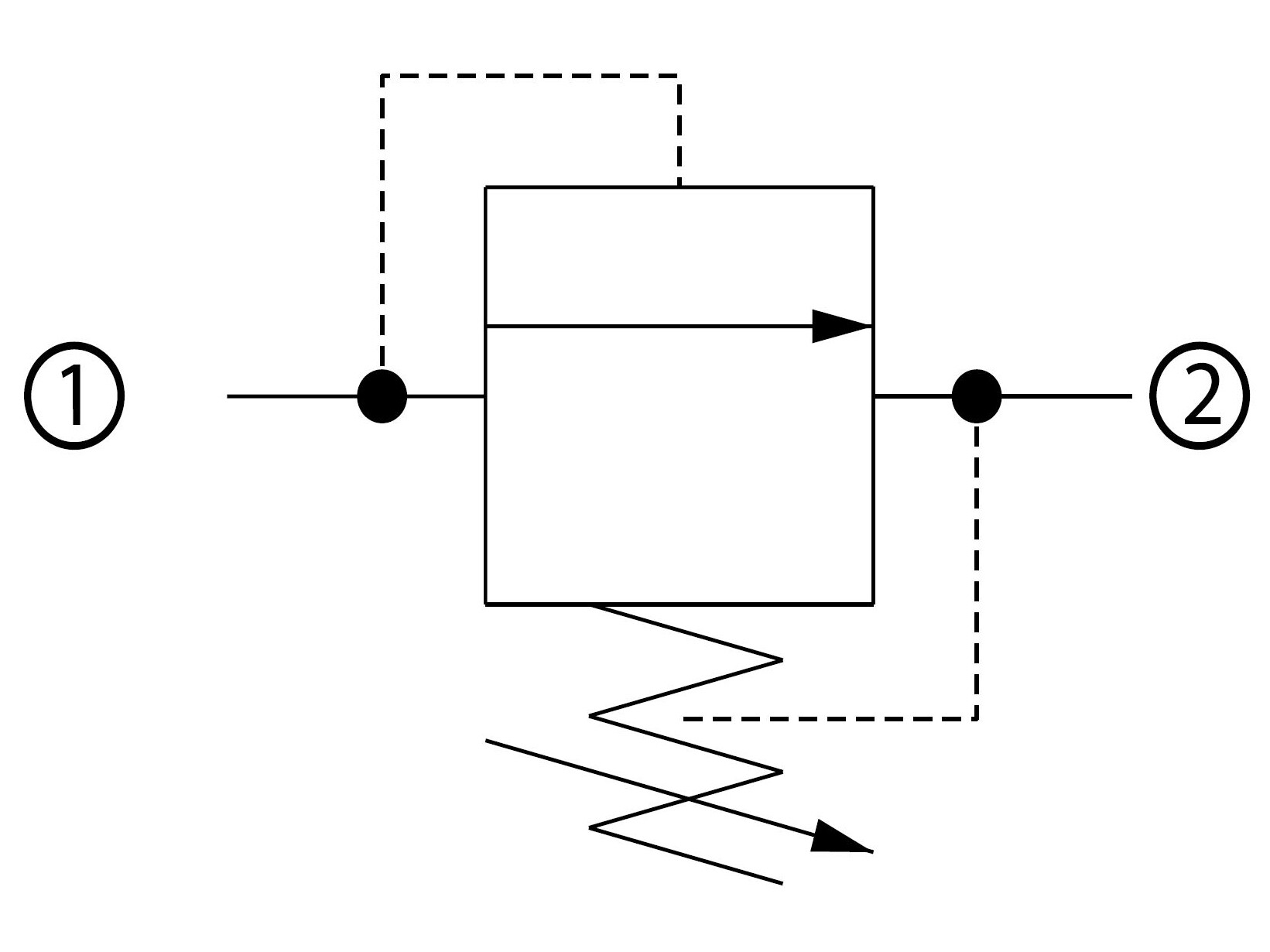

This is a direct acting spool, type relief valve that relieves from port 1 to 2. It has been designed to give stable performance at lower pressure and can be used as a purge relief, bypass filter elements or in applications that require better control.
Varenummer:
140018.000
Pakke str.:
1 st
Min. bestillingsenhed er:
1 st
Cavity
CP12-2
Flow Nominel
76 lpm
Forureningsgrad maks.
20/18/14 - ISO 4406
Model kode
CP211-1-B-0-E-B-XXX
Mærke navn
Danfoss
Nøglevidde
31.75 mm
Olieviskositet anbefalet
12 - 54 cSt
Pakningsmateriale
NBR
Tilspændingsmoment
68 - 75 Nm
Tryk maks.
210 bar
Trykindstilling maks.
34 bar
Trykindstilling min.
3.4 bar
Förpackningsstorlek
1 st
Streckkod
451331
Bruttovikt
0,43 Kg
Nettovikt
0,43 Kg
Ursprungsland
Intrastat artikelkod
84812010
CP211-1, Relief Valve, Direct Acting, Spool Type
This is a direct acting spool, type relief valve that relieves from port 1 to 2. It has been designed to give stable performance at lower pressure and can be used as a purge relief, bypass filter elements or in applications that require better control.
