    • Directional Valve, Manual, 68l/m CP600-2-B-0-10-B

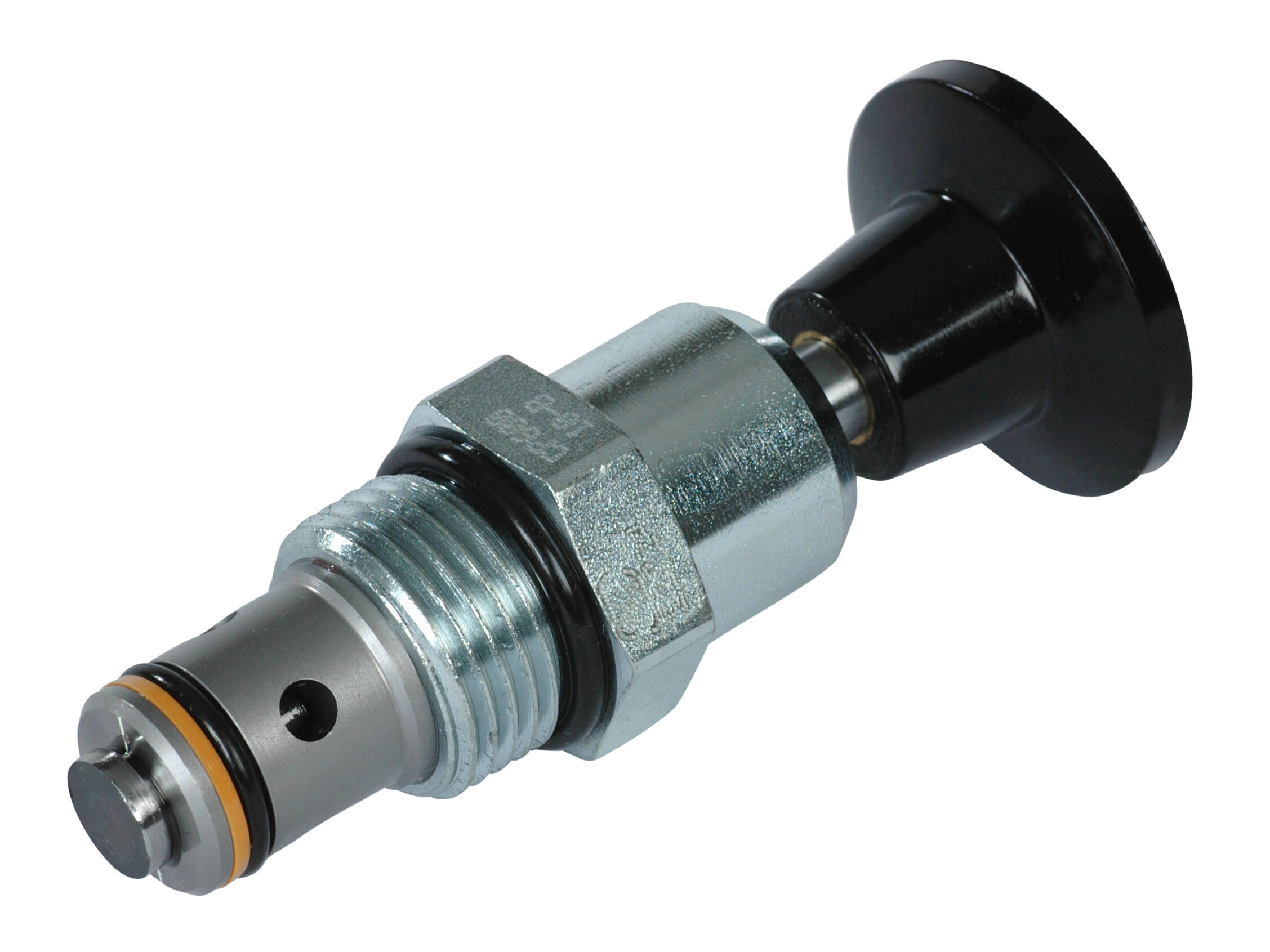

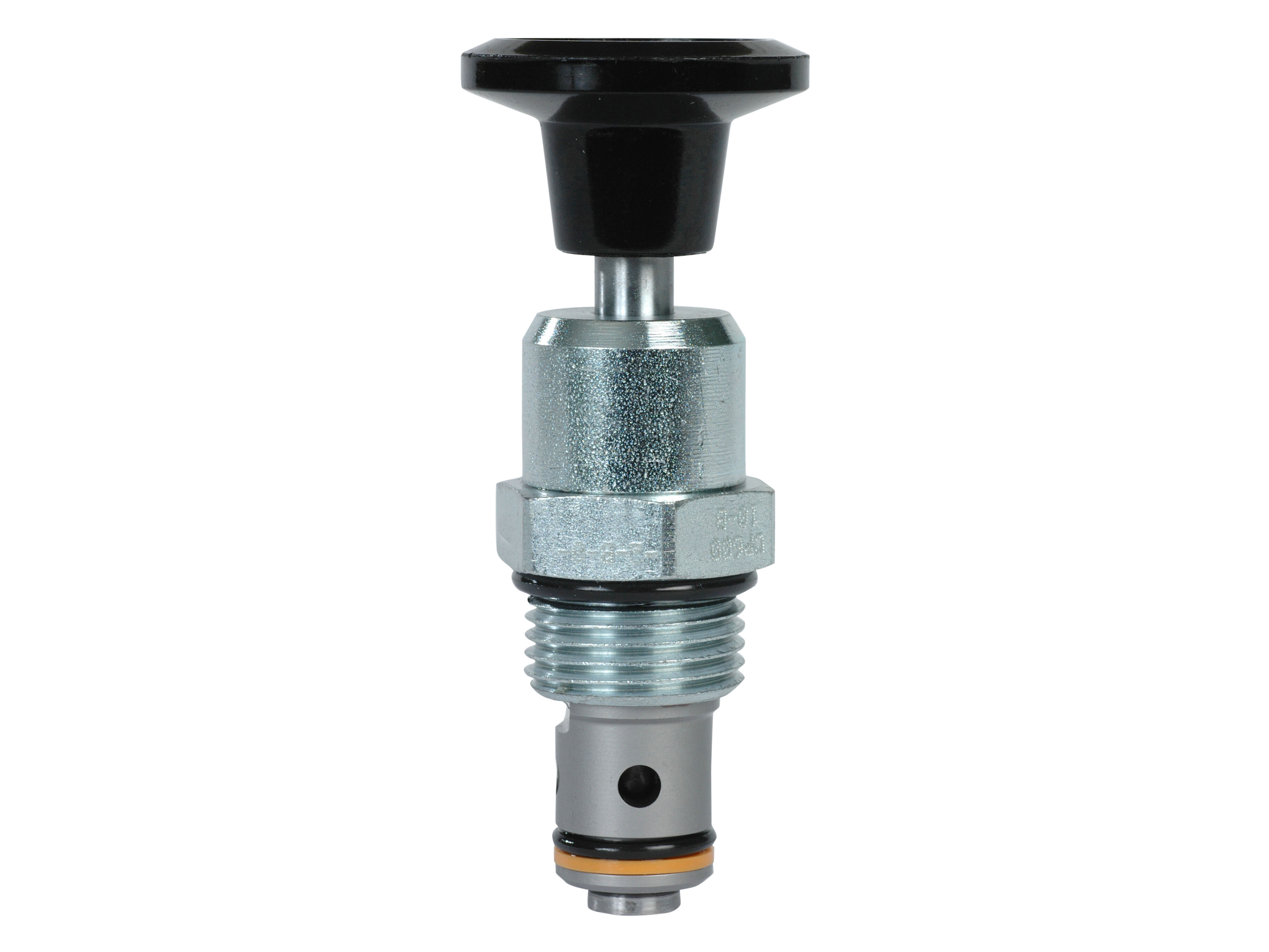

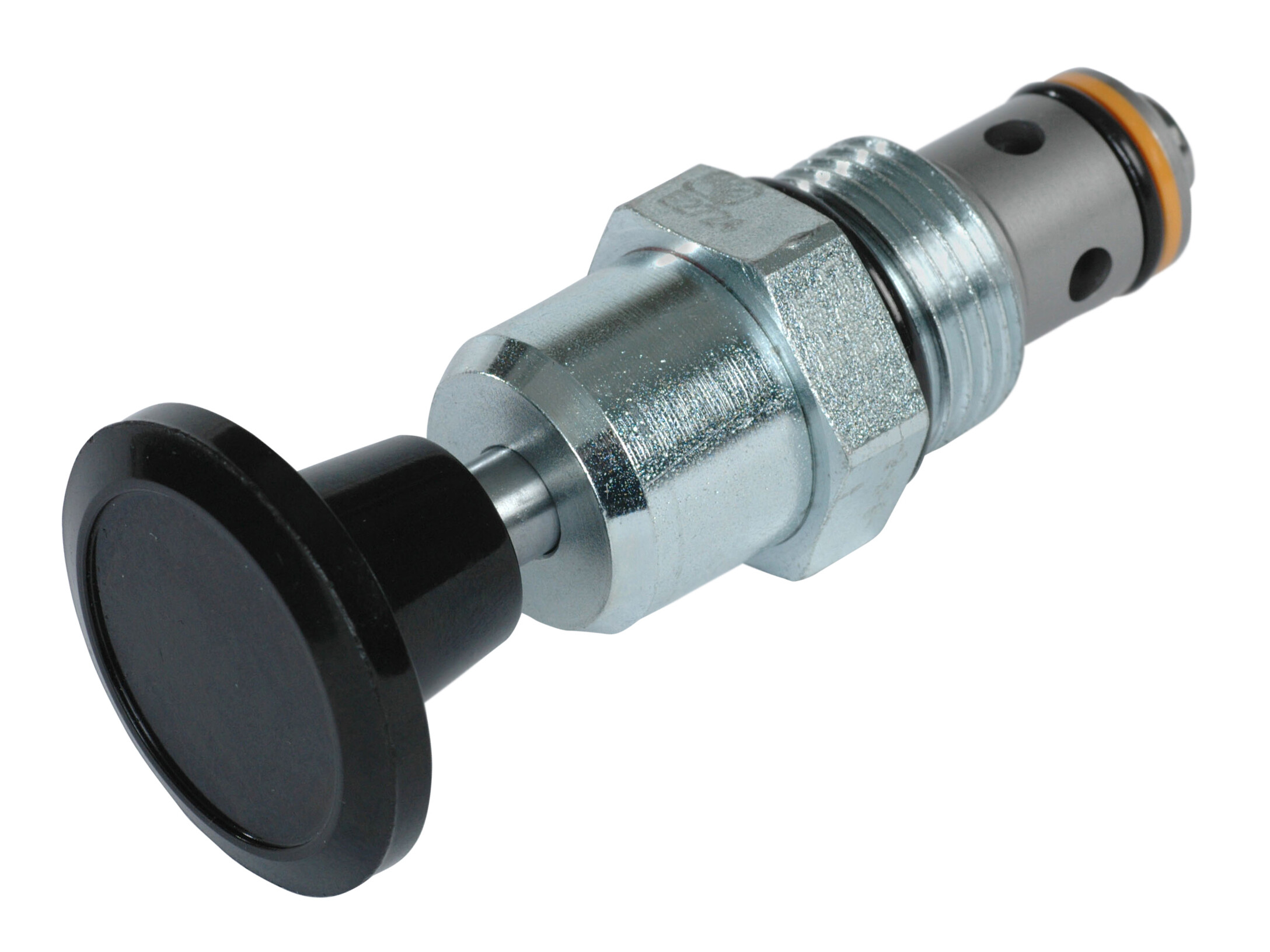

    Directional Valve, Manual, 68l/m CP600-2-B-0-10-B

    Manually activated, 50 l/min. 210 bar. Poppet type cartridge valve, Normally closed.

    Unactivated: Closed in both directions (checkvalve function).

    Activated (manual): Open in both directions. (See symbol for each valve).

    Artikelnummer:
    131337-CP600
    Förpackningsstorlek:
    1 st
    Minsta beställningskvantitet:
    1 st
    Activation
    Manual
    Brand Name
    Danfoss
    Cavity
    SDC10-2
    Contamination level max.
    20/18/14 - ISO 4406
    Filter built-in
    No
    Flow rate nominal LMin
    50 lpm
    Manual operated
    Yes
    Model code
    CP600-2-B-0-10-B
    Number of ways/positions
    2/2
    Oil viscocity recommended
    12 - 54 cSt
    Pressure max.
    210 bar
    Sealing material
    NBR
    Temperature max.
    +100 °C
    Temperature min.
    -40 °C
    Torque tightening
    41 - 47 Nm
    Valve type
    NC - Normally closed
    Förpackningsstorlek
    1 st
    Streckkod
    379552
    Bruttovikt
    0,14 Kg
    Nettovikt
    0,14 Kg
    Ursprungsland
    ITA
    Intrastat artikelkod
    84812010

    Manually activated, 50 l/min. 210 bar. Poppet type cartridge valve, Normally closed.

    Unactivated: Closed in both directions (checkvalve function).

    Activated (manual): Open in both directions. (See symbol for each valve).

    Product datasheet
