Fixed Prio. Flow Cont. valve 38l/m 20l/m CP310-1-B-0-5.0

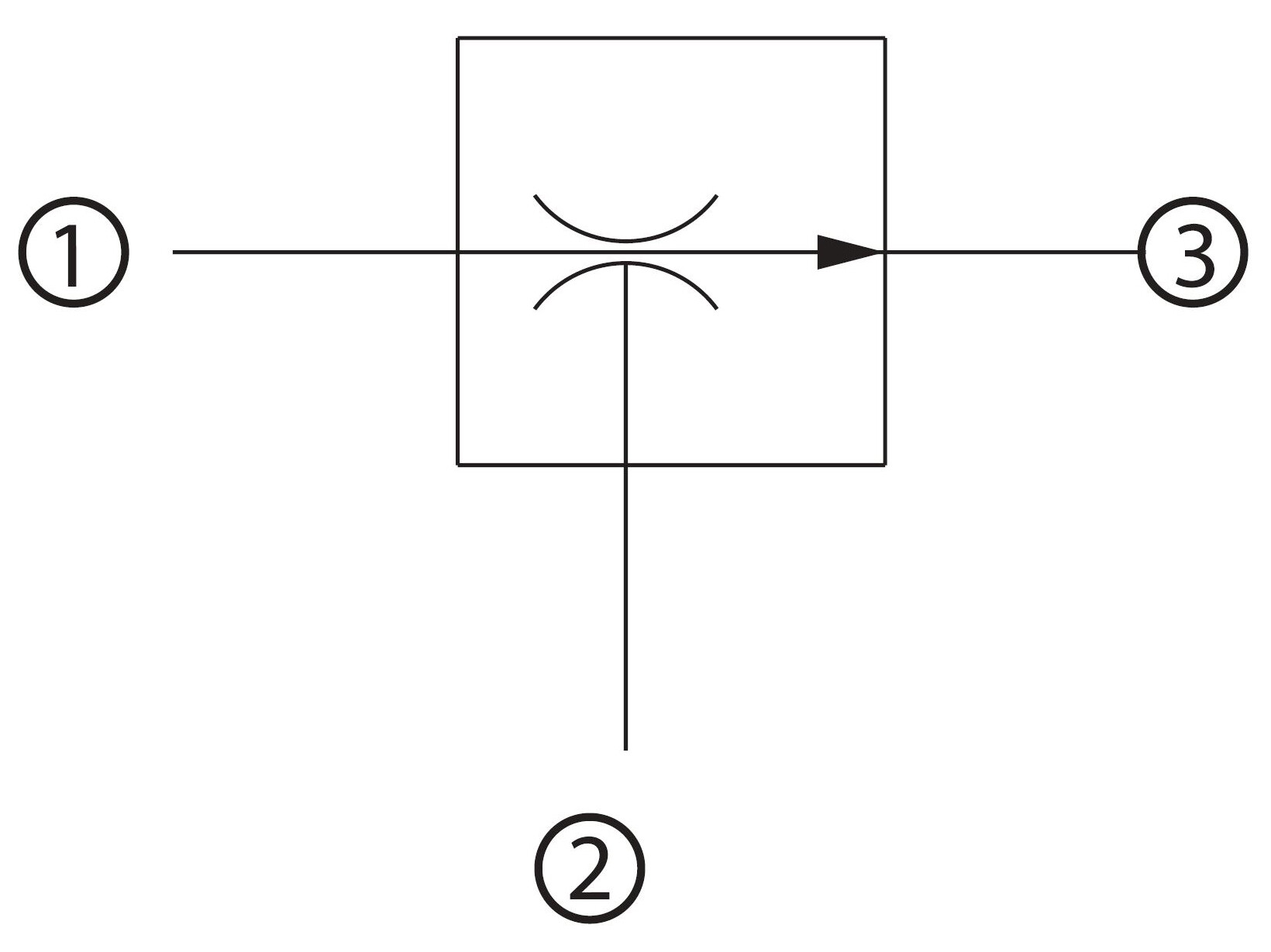

This valve is a fixed, pressure compensated priority-type flow control valve.
Artikelnummer:
130615-CP310
Förpackningsstorlek:
1 st
Minsta beställningskvantitet:
1 st
Brand Name
Danfoss
Cavity
SDC10-3
Contamination level max.
20/18/14 - ISO 4406
Flow max. regulated
20 lpm
Flow min. regulated
20 lpm
Inlet flow max.
38 lpm
Model code
CP310-1-B-0-5.0
Oil viscocity recommended
12 - 54 cSt
Pressure compensated
No
Pressure max.
210 bar
Sealing material
NBR
Temperature max.
+100 °C
Temperature min.
-40 °C
Torque tightening
41 - 47 Nm
Package size
1 st
Barcode
379544
Gross weight
0,13 Kg
Net weight
0,13 Kg
Country of origin
ITA
Intrastat code
84812010
This valve is a fixed, pressure compensated priority-type flow control valve.
