C.B. Valve 60l/m 55-80bar 4.5:1 CB10-HV-1-B-1-F-55-B-00(TN)

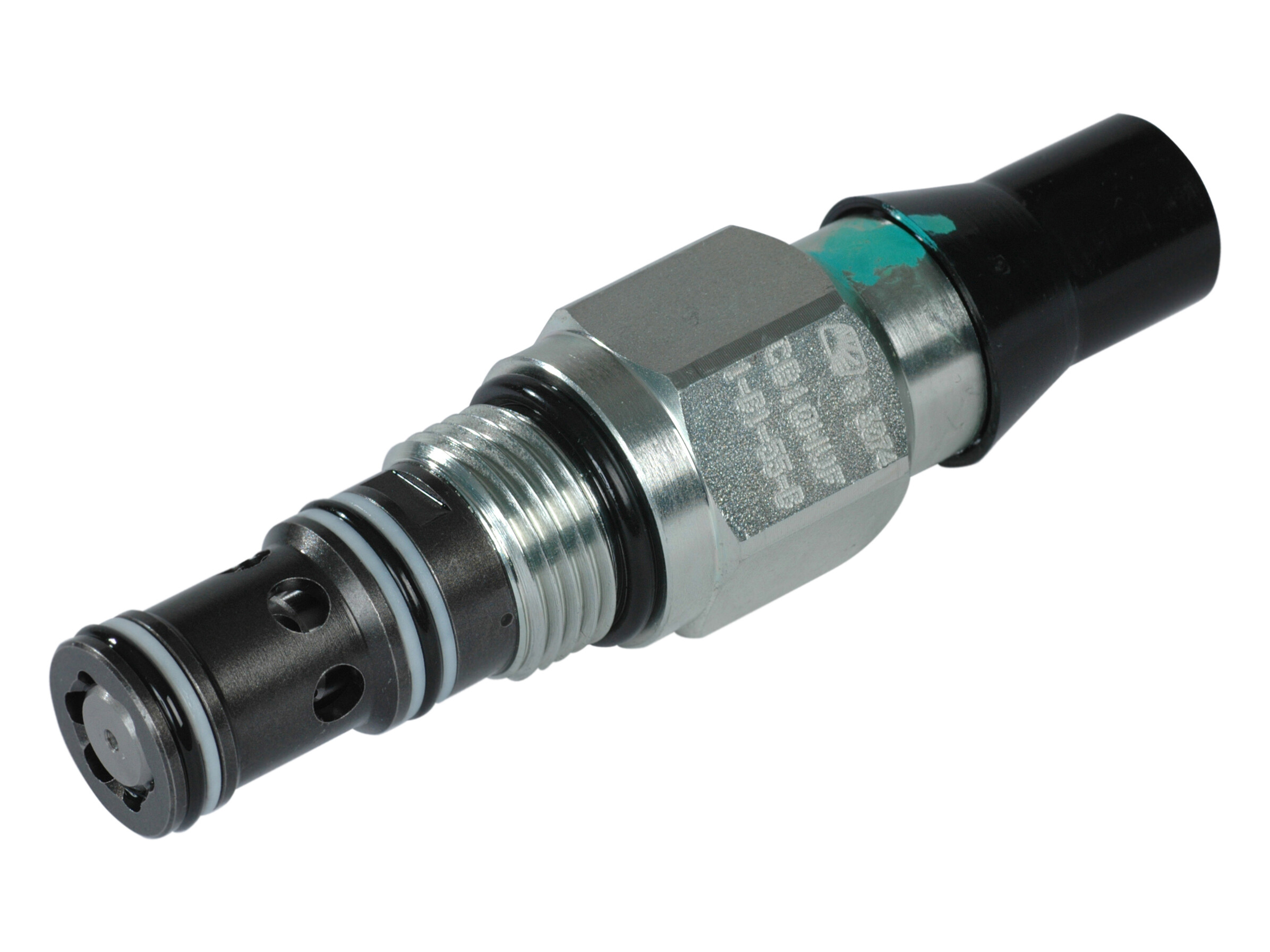

CB10-HV, Hydraulic Vent Valve.

Operation

CB10-HV: Counterbalance valve, 10-size, hydraulic vent. This valve is 3-ported, externally piloted and low leakage. The check section allows free flow from the directional valve (port 2) to the load (port 1), while normally blocking flow from port 1 to port 2. Reverse flow is blocked until pilot pressure is applied at port 3. When the load pressure at port 1 rises above the pressure setting, the integral relief valve is activated, and pressure is relieved from port 1 to port 2.



Applications

Single counterbalance valves are normally used when the load is unidirectional, such as aerial lifts, cranes, or winches. In load holding applications, they can be used as hose-break valves when installed near or within an actuator. Dual valves can be used for controlling loads bi-directionally in motor applications, or for cylinders going over center.

Partnumber:
11107233

Package size:
1 st

Min. order quantity is:
1 st
Flödeshastighet nominell LMin
60 lpm

Föroreningsgrad max.
20/18/14 - ISO 4406

Kavitet
SDC10-3S

Modell kod
CB10-HV-1-B-1-F-55-B-0

Märke namn
Danfoss

Oljeviskositet rekommanderad
12 - 54 cSt

Packningsmaterial
NBR

Pilot förhållande
4,5:1

Tryck max.
350 bar

Tryckinställning max.
55 bar

Åtdragning moment
45 - 50 Nm
Förpackningsstorlek
1 st

Streckkod
374664

Bruttovikt
Kg

Nettovikt
Kg

Ursprungsland
ITA

Intrastat artikelkod
84812010

CB10-HV, Hydraulic Vent Valve.

Operation

CB10-HV: Counterbalance valve, 10-size, hydraulic vent. This valve is 3-ported, externally piloted and low leakage. The check section allows free flow from the directional valve (port 2) to the load (port 1), while normally blocking flow from port 1 to port 2. Reverse flow is blocked until pilot pressure is applied at port 3. When the load pressure at port 1 rises above the pressure setting, the integral relief valve is activated, and pressure is relieved from port 1 to port 2.



Applications

Single counterbalance valves are normally used when the load is unidirectional, such as aerial lifts, cranes, or winches. In load holding applications, they can be used as hose-break valves when installed near or within an actuator. Dual valves can be used for controlling loads bi-directionally in motor applications, or for cylinders going over center.
