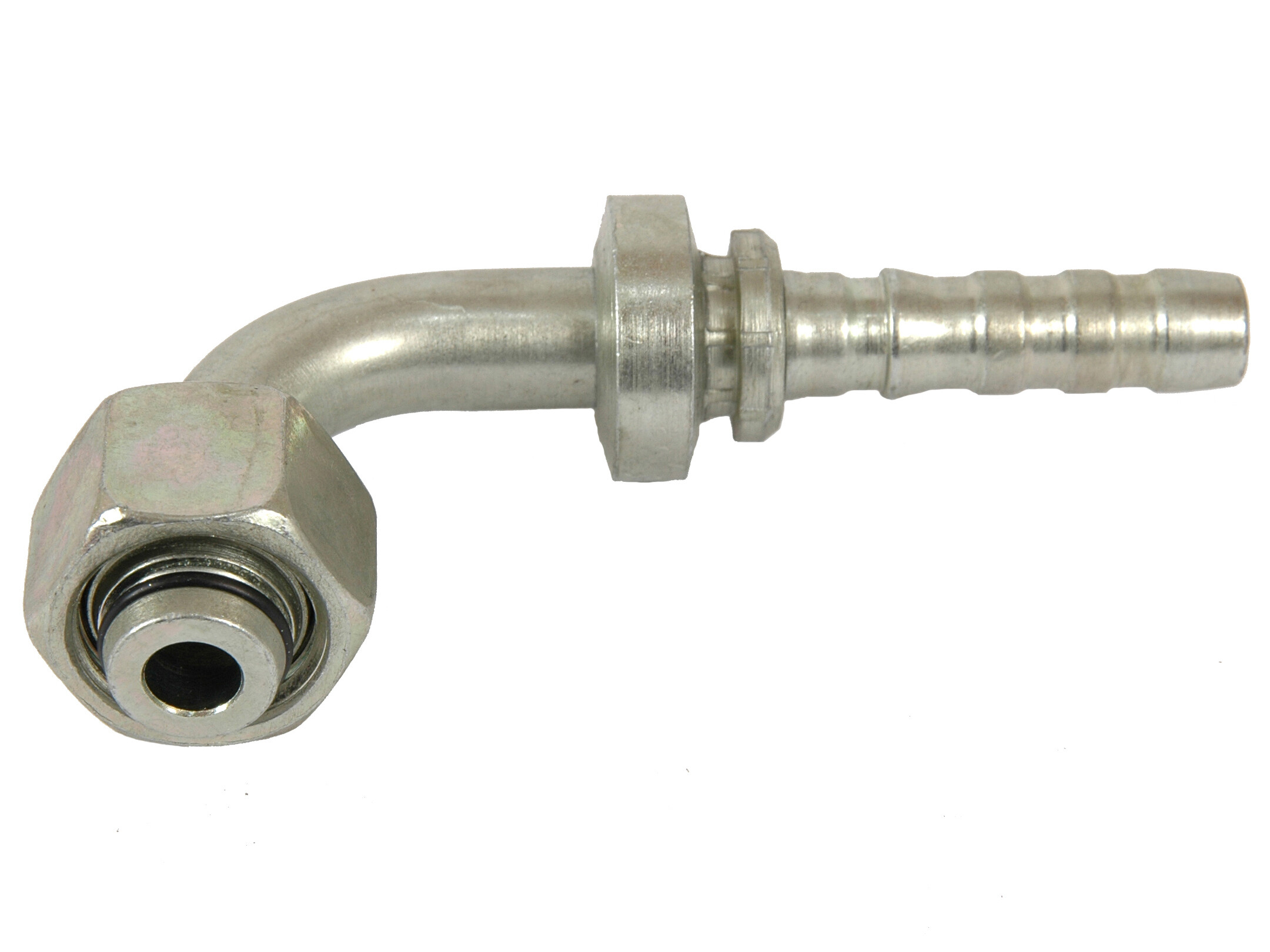

Presskoppling GS 90°, Ø5/8'', Inv-M30-DKO-20S

Presskoppling GS 90B, Ø 5/8'', Inv-M 24x1,5, S-klass

Varenummer:

10GS16FDHORX90

Pakke str.:

1 st

Min. bestillingsenhed er:

1 st

Specifikationer
Dimensioner och frakt

Angle

90 °

Brand Name

Gates

Corrosion resistance

500 hours salt spray ASTM B-117

Diameter pipe

16 mm

Dimension A

110 mm

Dimension B

59.7 mm

Dimension D

5/8 "

Dimension E

46.5 mm

Dimension H

30 mm

Hose coupling type

For separate ferrule

Hose size

5/8 "

Material

Steel

Model code

10GS-16FDHORX90

REACH compliant

Yes

RoHs compliant

Yes

Sealing material

NBR

Series

Surface treatment

TuffCoat™

Temperature max.

+100 °C

Temperature min.

-35 °C

Torque tightening

62 - 68 Nm

Förpackningsstorlek

1 st

Streckkod

413254

Bruttovikt

Nettovikt

Ursprungsland

bel

Produktinformation
Måttskiss

Presskoppling GS 90B, Ø 5/8'', Inv-M 24x1,5, S-klass
