SD5/1-N(KG3-120)/111L walvoil

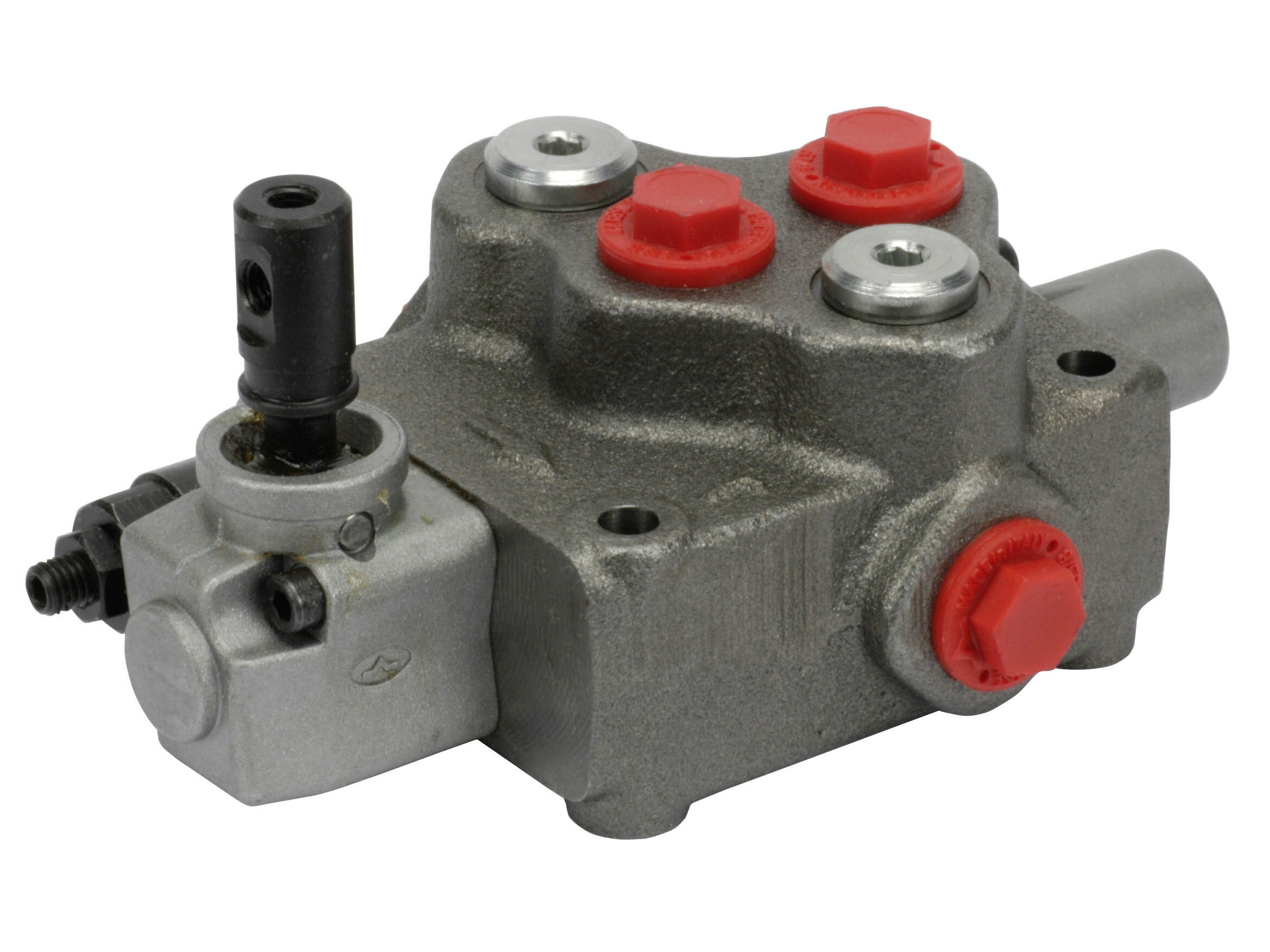

1-section SD5 monoblock directional valve with built-in pressure relief valve and one spool. Manually activated

Spool function: Double acting with port A and B closed in neutral position. Detent in all three spool positions: Neutral, 1 and 2.

Open center, port P to T in neutral position.

Artikelnummer:
102111002

Förpackningsstorlek:
1 st

Minsta beställningskvantitet:
1 st
Brand Name
Walvoil

Contamination level max.
-/19/16 - ISO 4406

Flow rate nominal LMin
45 lpm

Lever
Exclusive

Material
Cast iron

Model code
SD5/1-N(KG3-120)/111L

Number of sections
1

Oil viscocity recommended
12 - 400 cSt

Port P
G 3/8 BSP

Port T
G 3/8 BSP

Pressure T max.
25 bar

Pressure carry-over
No

Pressure max.
315 bar

Pressure relief valve
Yes

Pressure setting max.
200 bar

Pressure setting min.
63 bar

Working ports
G 3/8 BSP
Förpackningsstorlek
1 st

Streckkod
467888

Bruttovikt
3,40 Kg

Nettovikt
3,40 Kg

Ursprungsland
ITA

Intrastat artikelkod
84812010

1-section SD5 monoblock directional valve with built-in pressure relief valve and one spool. Manually activated

Spool function: Double acting with port A and B closed in neutral position. Detent in all three spool positions: Neutral, 1 and 2.

Open center, port P to T in neutral position.
