XLH 315 Ø25mm SAE-A HPS

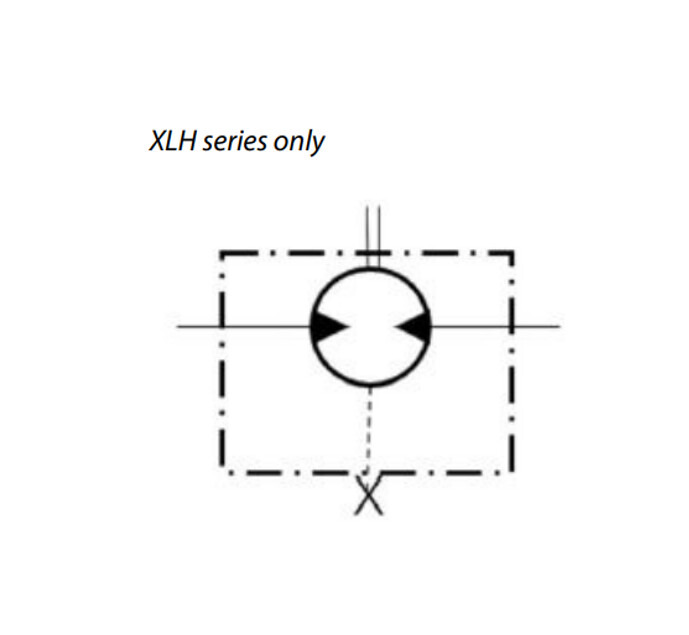

Danfoss XLH Series – Robust Orbital Motors for Medium-Duty Applications
The Danfoss XLH series is designed for medium-duty mobile and industrial applications requiring reliable torque output at low speeds.
Based on the proven orbital motor principle with spool-valve distribution and hydrodynamic journal bearings, the XLH delivers efficient, stable, and durable performance in a compact and cost-effective design.
Each motor in the XLH range features a high-pressure shaft seal and rugged steel construction optimized for reliability and ease of installation. With SAE A 2-bolt flange mounting, multiple shaft options, and straightforward port configurations, the XLH provides flexibility across a wide range of hydraulic systems.
Key Advantages
- High efficiency and consistent torque at low speeds
- Compact and durable design for medium-duty operation
- Equal torque in both rotational directions
- Hydrodynamic journal bearings ensure long service life
- High-pressure shaft seal as standard on all models
- Wide displacement range: 50 – 485 cm³/rev
- Continuous pressure: up to 124 bar
- Intermittent pressure: up to 138 bar
- Continuous torque: up to 426 Nm
- Intermittent torque: up to 547 Nm
- Speed capability: up to 800 rpm (depending on model)
Typical Applications
- Aerial work platforms and lifts
- Augers, mixers, and sweepers
- Conveyors and material-handling systems
- Agricultural and forestry equipment
- Turf care and landscaping machinery
- Winches, drives, and auxiliary mechanisms
Technical Highlights
- Inlet pressure: up to 150 bar
- Recommended oil viscosity: 20–32 cSt
- Operating temperature: –30 °C to +82 °C
- Filtration: ISO 4406: 20/18/13
- Port threads: G ½ (pressure) / G ¼ (drain)
- Mounting flange: SAE A 2-bolt (A2) – Ø 82.5 mm pilot / Ø 106.4 mm bolt circle
- Shaft options: Ø 25 mm straight (code 10) or SAE 6B 1" spline (code 07)
- Shaft seal: High-pressure type (standard)
Note
For continuous high-pressure or high-temperature operation, connecting an external case drain line is recommended to maintain low case pressure and extend seal life.
Artikelnummer:
016-0551-003
Förpackningsstorlek:
1 st
Minsta beställningskvantitet:
1 st
Antal monteringshål
2
Arbetsportar
G 1/2 BSP
Axel diameter
25 mm
Axeltyp
Cyl. Ø 25 mm (10)
Bultcirkel
106.4 mm
Deplacement
315 cm3
Dimension H
179 mm
Dräneringsport
G 1/4 BSP
Filtreringskrav
ISO cleanliness code 4406:20/18/13
Flänsens styrdiameter
82.5 mm
Färg
Black
Föroreningsgrad max.
20/18/13 - ISO 4406
Ingångstryck Max.
150
Integrerad backventil
No
Intermittent Rotationshastighet Max.
209
Intermittent flöde Max.
68
Intermittent vridmoment Max.
508 Nm
Kont. rotation max.
174 rpm
Kontinuerligt flöde Max.
57
Krav på dräneringsledning
Recommended (Required under high case pressure)
Längd
179 mm
Max. driftstemperatur
82 °C
Max. vridmoment på axel
340 Nm
Modell kod
XLH
Moment kontinuerlig max.
377 Nm
Monteringsfläns
SAE-A2
Märke namn
Danfoss
Oljeviskositet rekommanderad
20 - 32 cSt
Portkod
AA
Portplacering
Side
Reces
82,55 mm
Temperatur max.
+180 °C
Temperatur min.
-30 °C
Tryck intermittent max.
124 bar
Tryck kontinuerlig max.
90 bar
Typ av axeltätning
High pressure packing
Förpackningsstorlek
1 st
Streckkod
469874
Bruttovikt
Kg
Nettovikt
Kg
Ursprungsland
CHN
Intrastat artikelkod
84122981
Danfoss XLH Series – Robust Orbital Motors for Medium-Duty Applications
The Danfoss XLH series is designed for medium-duty mobile and industrial applications requiring reliable torque output at low speeds.
Based on the proven orbital motor principle with spool-valve distribution and hydrodynamic journal bearings, the XLH delivers efficient, stable, and durable performance in a compact and cost-effective design.
Each motor in the XLH range features a high-pressure shaft seal and rugged steel construction optimized for reliability and ease of installation. With SAE A 2-bolt flange mounting, multiple shaft options, and straightforward port configurations, the XLH provides flexibility across a wide range of hydraulic systems.
Key Advantages
- High efficiency and consistent torque at low speeds
- Compact and durable design for medium-duty operation
- Equal torque in both rotational directions
- Hydrodynamic journal bearings ensure long service life
- High-pressure shaft seal as standard on all models
- Wide displacement range: 50 – 485 cm³/rev
- Continuous pressure: up to 124 bar
- Intermittent pressure: up to 138 bar
- Continuous torque: up to 426 Nm
- Intermittent torque: up to 547 Nm
- Speed capability: up to 800 rpm (depending on model)
Typical Applications
- Aerial work platforms and lifts
- Augers, mixers, and sweepers
- Conveyors and material-handling systems
- Agricultural and forestry equipment
- Turf care and landscaping machinery
- Winches, drives, and auxiliary mechanisms
Technical Highlights
- Inlet pressure: up to 150 bar
- Recommended oil viscosity: 20–32 cSt
- Operating temperature: –30 °C to +82 °C
- Filtration: ISO 4406: 20/18/13
- Port threads: G ½ (pressure) / G ¼ (drain)
- Mounting flange: SAE A 2-bolt (A2) – Ø 82.5 mm pilot / Ø 106.4 mm bolt circle
- Shaft options: Ø 25 mm straight (code 10) or SAE 6B 1" spline (code 07)
- Shaft seal: High-pressure type (standard)
Note
For continuous high-pressure or high-temperature operation, connecting an external case drain line is recommended to maintain low case pressure and extend seal life.
