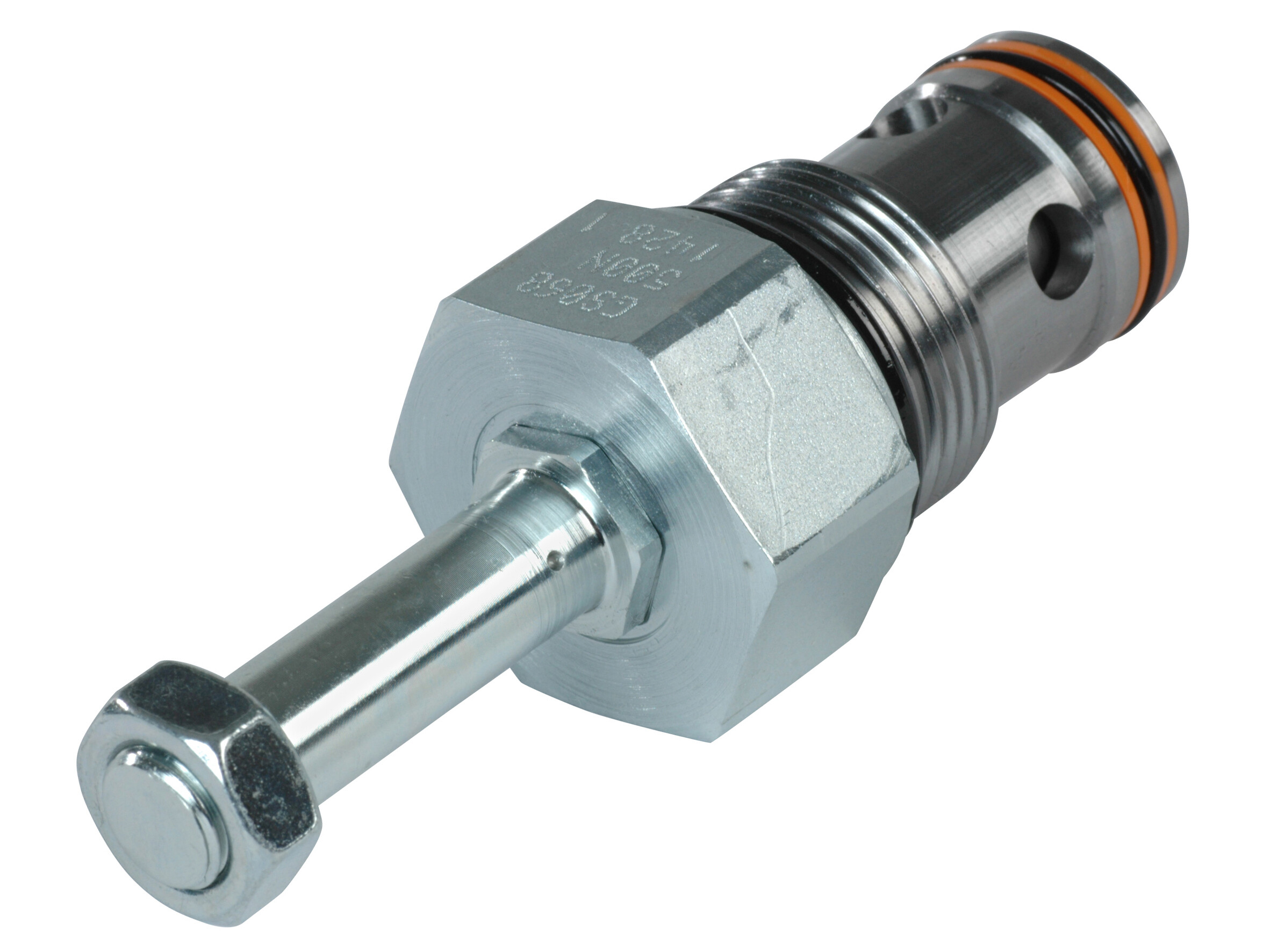

RIKTN.V S-H 16-2 NO 210 BAR
2-Way, 2 Position, Normally Open, Bi-Directional Poppet Valve.
Features
- Built-in thermal relief set at 36 Bar (500 PSI) above rated pressure
- One piece cartridge housing ensures internal concentricity
- Coil: Waterproof, hermetically sealed, requires no O’Rings;Symmetrical coil can be reversed without affecting performance.
- Coil is interchangeable with 02 and 04 series poppet valves;
Artikelnummer:
GS06-85-00N
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Activation
Solenoid
Brand Name
Hydraspecma
Cavity
CAV06-2
Contamination level max.
18/16/13 - ISO 4406
Filter built-in
No
Flow rate nominal LMin
285 lpm
Manualoperated
No
Number of ways/positions
2/2
Oil viscocity recommended
6 - 420 cSt
Pressure max.
210 bar
Sealing material
NBR
Solenoidtype
CCS
Temperature max.
+121 °C
Temperature min.
-34 °C
Torque tightening
108 Nm
Valve type
NO - Normally open
Förpackningsstorlek
0 pcs
Streckkod
5704295218281
Bruttovikt
0,42 Kg
Nettovikt
0,42 Kg
Ursprungsland
gbr
Intrastat artikelkod
84812010
2-Way, 2 Position, Normally Open, Bi-Directional Poppet Valve.
Features
- Built-in thermal relief set at 36 Bar (500 PSI) above rated pressure
- One piece cartridge housing ensures internal concentricity
- Coil: Waterproof, hermetically sealed, requires no O’Rings;Symmetrical coil can be reversed without affecting performance.
- Coil is interchangeable with 02 and 04 series poppet valves;
