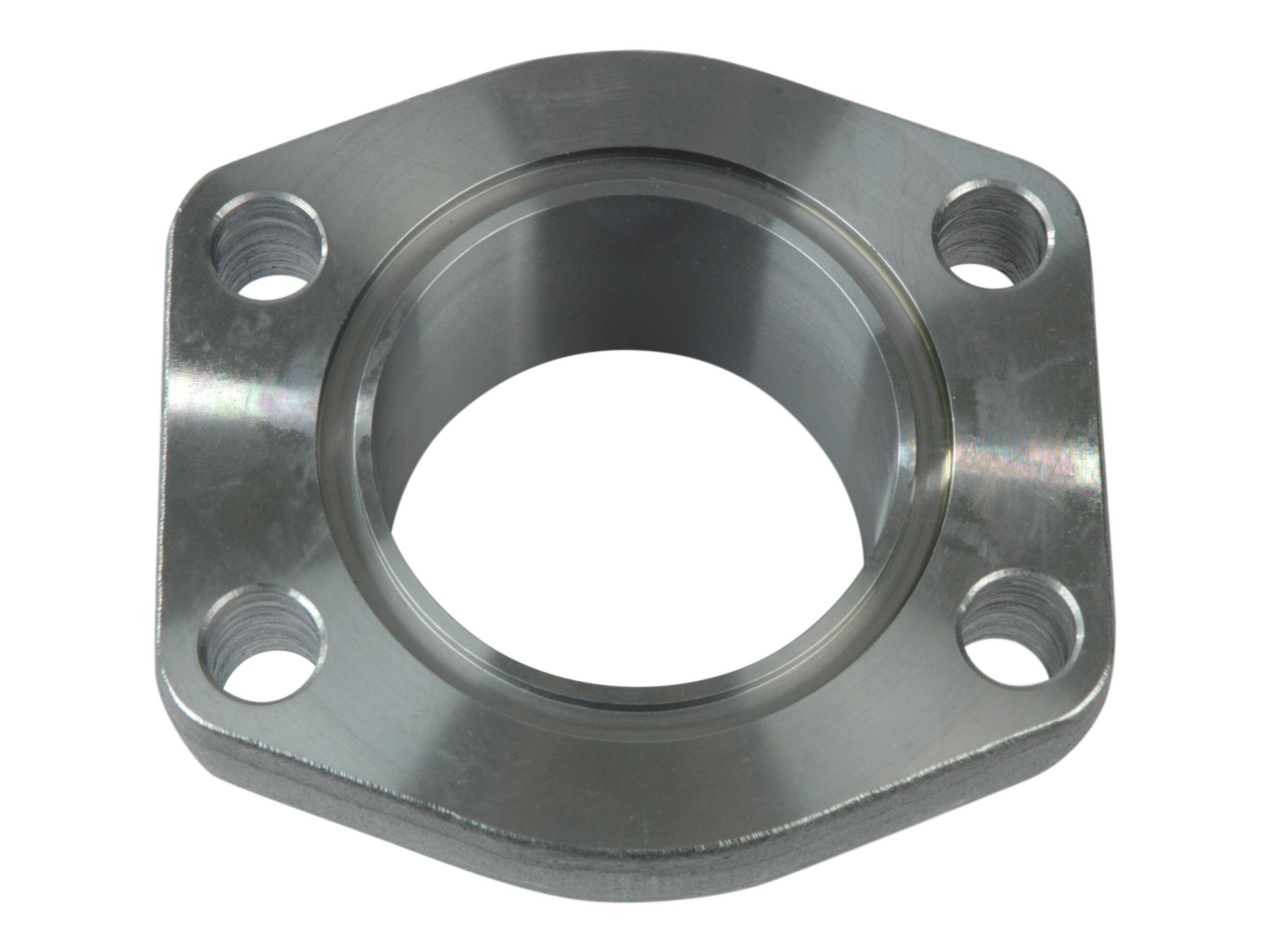

Butt weld flange 2.1/2" SAE3000
Butt weld flange 2.1/2" SAE3000
Partnumber:
0593-40
Package size:
6
Min. order quantity is:
1
A
77 mm
Angle
0 °
B
63 mm
Bolt dimension
M12x45 mm
C
88,9 mm
D
114 mm
Diameter flange
84.1 mm
E
50,8 mm
F
105 mm
Flange
2.1/2 "
Flange SAE/DIN
3000 PSI
G
50 mm
H
25 mm
L
13,5 mm
Material
Steel
O-ring
69,44X3,53 mm
Pressure max.
172 bar
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Temperature max.
+90 °C
Temperature min.
-40 °C
Package size
6
Barcode
198687
Gross weight
1,40 Kg
Net weight
1,40 Kg
Country of origin
DEU
Intrastat code
73079100
Butt weld flange 2.1/2" SAE3000
