Duplomatic MERS/QTM3 flow control valves

Vastusvastaventt. A+B NS6

MERS-SA/50

MERS-SB/50

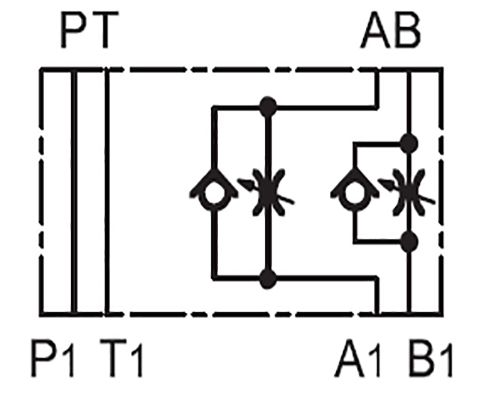

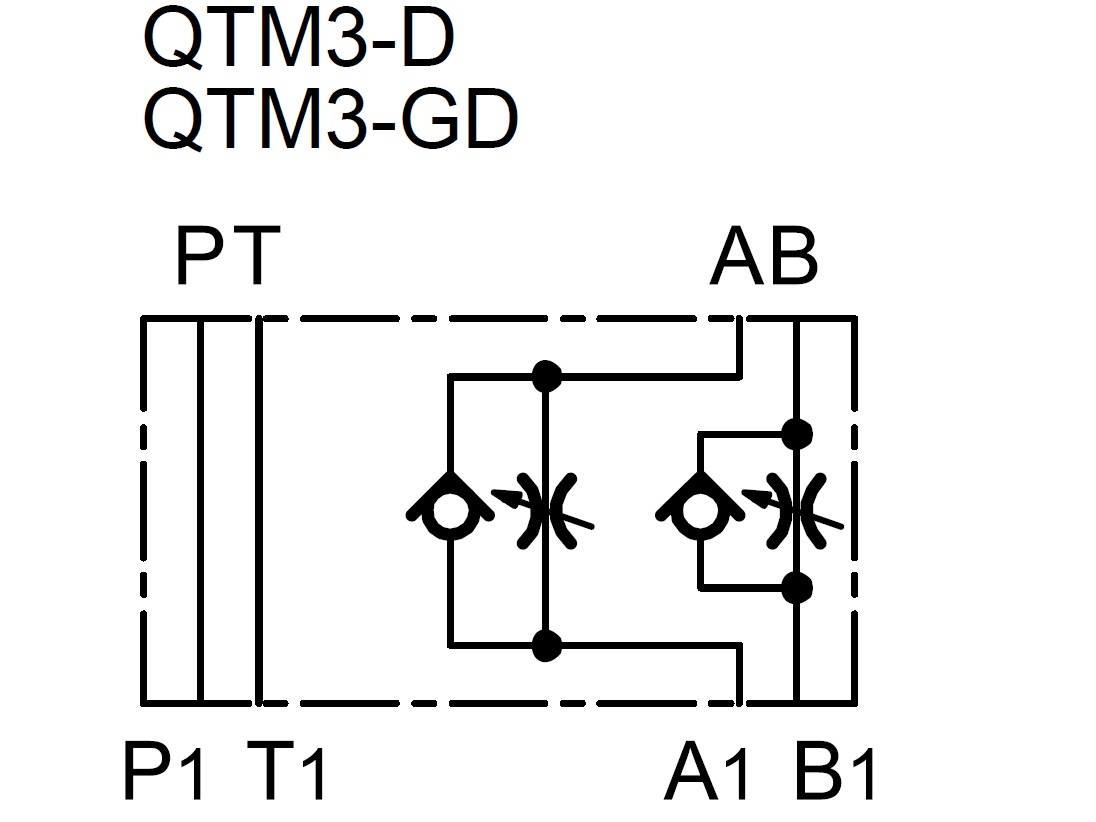

QTM3-D/10N/S Flow control and Check valve A+B Cetop 3

MERS-GD/50

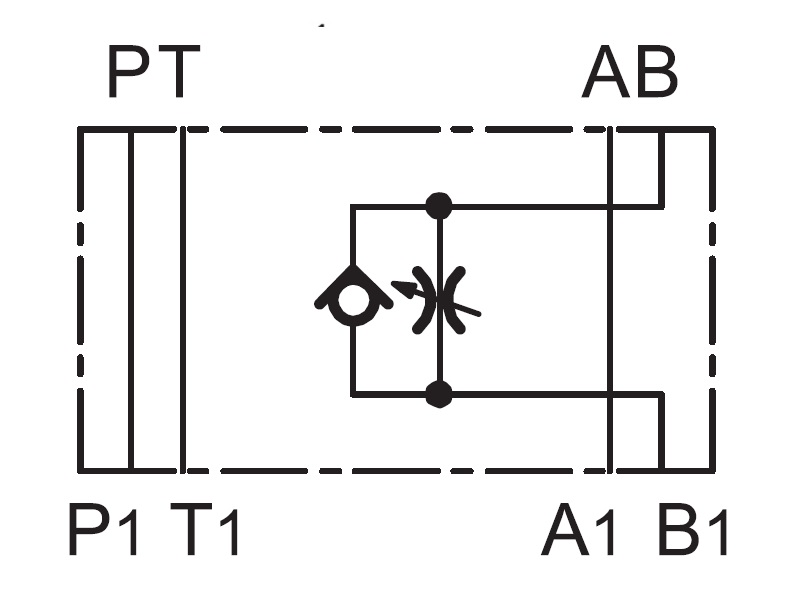

QTM3-SA/10N/S Flow control and Check valve A Cetop 3

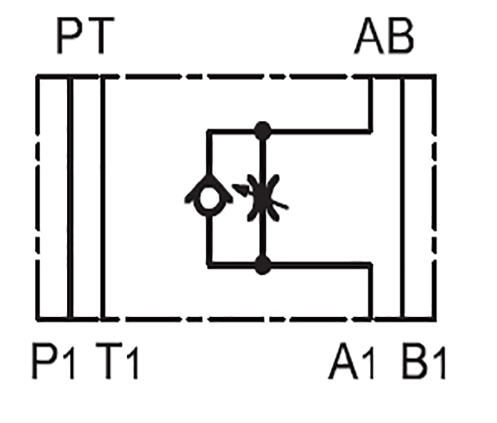

QTM3-SB/10N/S Flow control and Check valve B Cetop 3

SELECT VARIANT

	Partnumber	Description
	MERS-GD/50	Vastusvastaventt. A+B NS6
	MERS-SA/50	MERS-SA/50
	MERS-SB/50	MERS-SB/50
	QTM3-D/10N/S	QTM3-D/10N/S Flow control and Check valve A+B Cetop 3
	QTM3-GD/10N/S	MERS-GD/50
	QTM3-SA/10N/S	QTM3-SA/10N/S Flow control and Check valve A Cetop 3
	QTM3-SB/10N/S	QTM3-SB/10N/S Flow control and Check valve B Cetop 3

Brand Name

Duplomatic

Contamination level max.

20/18/15 - ISO 4406

Flow rate nominal LMin

50, 75

Material

Steel

NG ISO-size

NG06

Oil viscocity recommended

Pressure compensated

Pressure max.

350

Sealing material

NBR

Surface treatment

Phosphated (black)

Temperature max.

+80

Temperature min.

-20

Valve type

Throttle/checkvalve
