SDM080/2-P(TG3-175)/18L/18L/ PSA

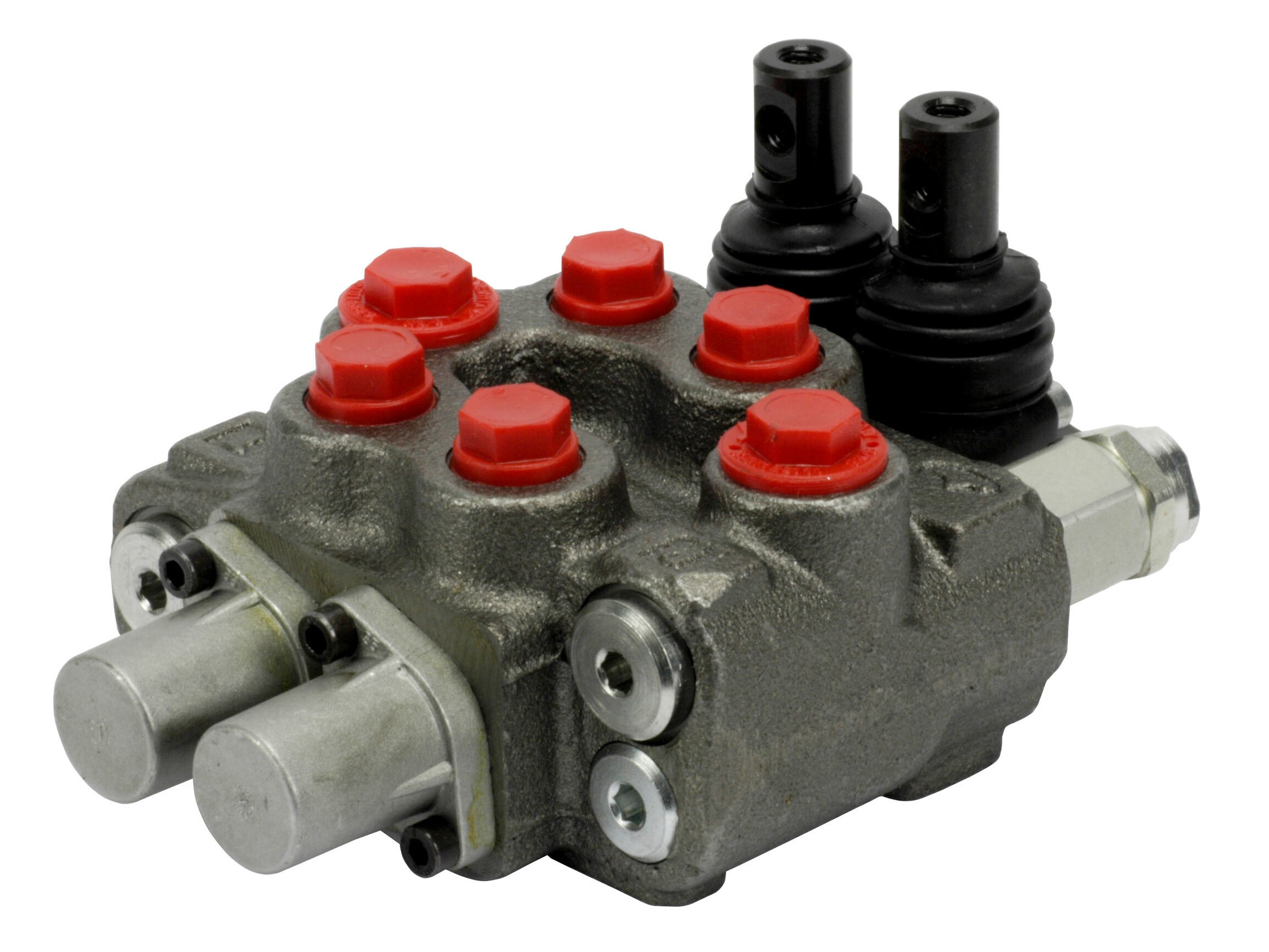

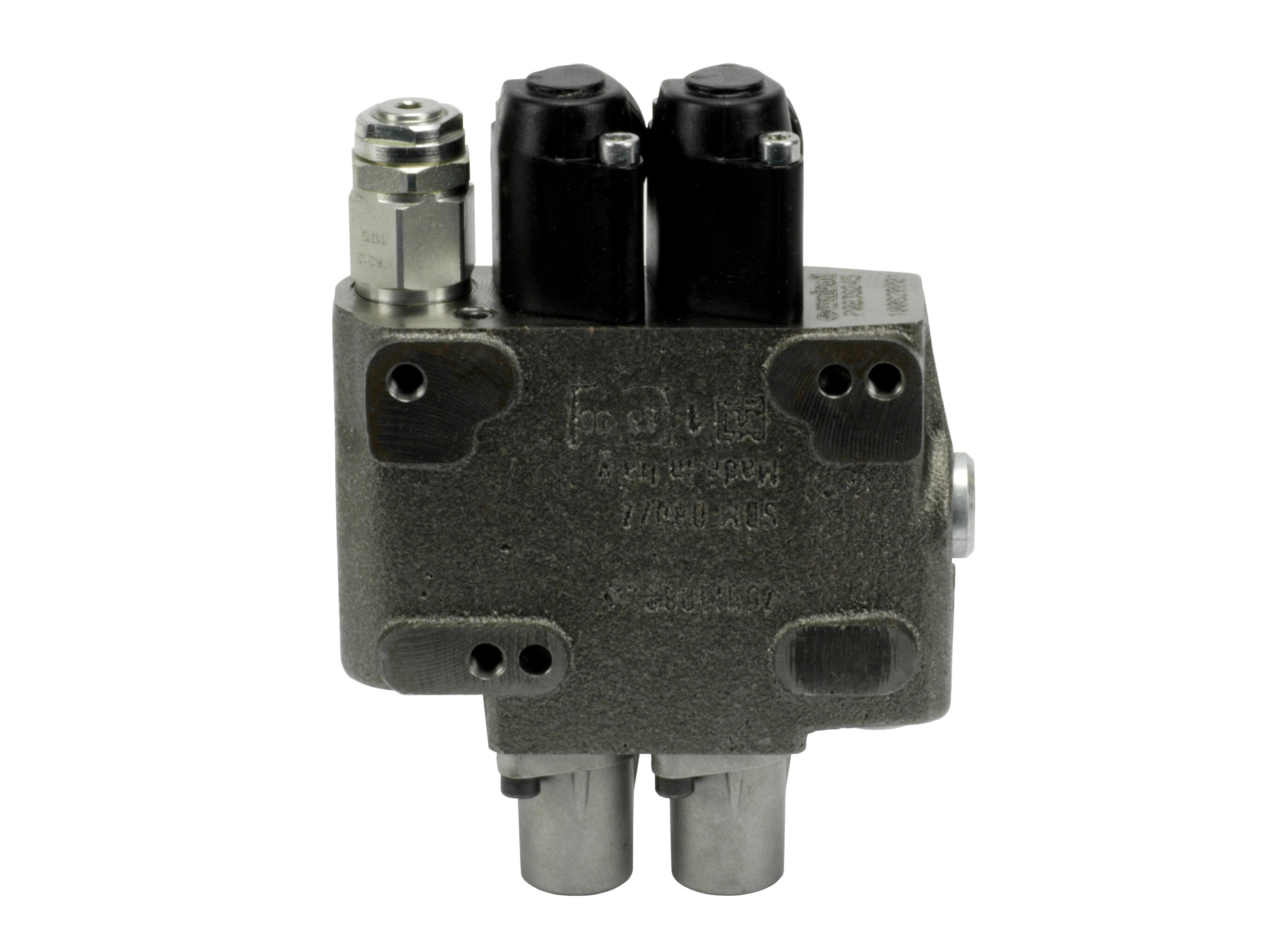

2-section SDM080 monobloc directional valve with built-in pressurerelief valve and 2 spools in parallel. Manually activated
PSA-configuration: Inlet and outlet ports upwards.
Spool function: 2 x double acting with port A and B closed in neutral position. Spring centered.
Open center P to T in neutral position.
Partnumber:
SDM080/2-TG32X18L
Package size:
1 kpl
Min. order quantity is:
1 kpl
Brand Name
Walvoil
Contamination level max.
-/19/16 - ISO 4406
Flow rate nominal LMin
25 lpm
Lever
Exclusive
Material
Cast iron
Model code
SDM080/2-P(TG3-175)/18L/18L/PSA
Number of sections
2
Oil viscocity recommended
12 - 400 cSt
Port P
G 3/8 BSP
Port P1
G 3/8 BSP
Port T
G 3/8 BSP
Port T1
G 3/8 BSP
Pressure T max.
25 bar
Pressure carry-over
No
Pressure max.
315 bar
Pressure relief valve
Yes
Pressure setting max.
200 bar
Pressure setting min.
100 bar
Working ports
G 1/4 BSP
Package size
1 kpl
Barcode
407734
Gross weight
3,98 Kg
Net weight
3,98 Kg
Country of origin
ITA
Intrastat code
84812010
2-section SDM080 monobloc directional valve with built-in pressurerelief valve and 2 spools in parallel. Manually activated
PSA-configuration: Inlet and outlet ports upwards.
Spool function: 2 x double acting with port A and B closed in neutral position. Spring centered.
Open center P to T in neutral position.
