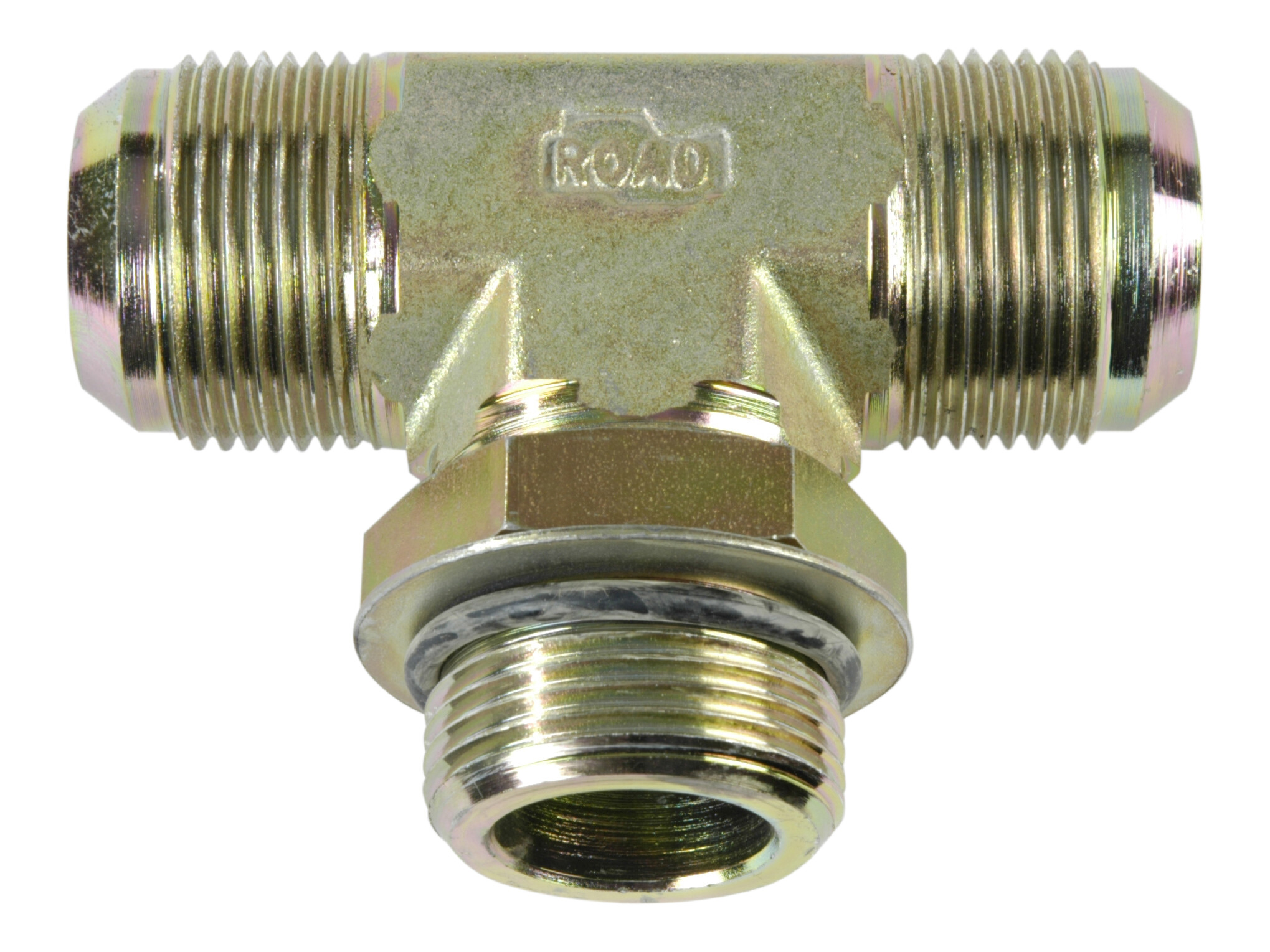

S605-20-26G barrel Tee BSP
BSP 3/4"-JIC 1 1/16"
Partnumber:
S605-12
Package size:
1 kpl
Min. order quantity is:
1 kpl
B
42 mm
B1
42 mm
Brand Name
FOR
C
49 mm
CH
36 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
18-20 mm
Dimension J1
1.1/16-12 JIC
F
G 3/4 BSP
J
1.1/16-12 JIC
J1
1.1/16-12 JIC
Material
Steel
Model code
A113025/2026
Pressure max.
250 bar
Sealing material
NBR
Standard ISO
ISO 1179
Surface treatment
Electro zinc plated
T
20 mm
T1
20 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
1.1/16-12 JIC
Thread outer
G 3/4 BSP
Package size
1 kpl
Barcode
407403
Gross weight
0,37 Kg
Net weight
0,37 Kg
Country of origin
ITA
Intrastat code
73071110
BSP 3/4"-JIC 1 1/16"
