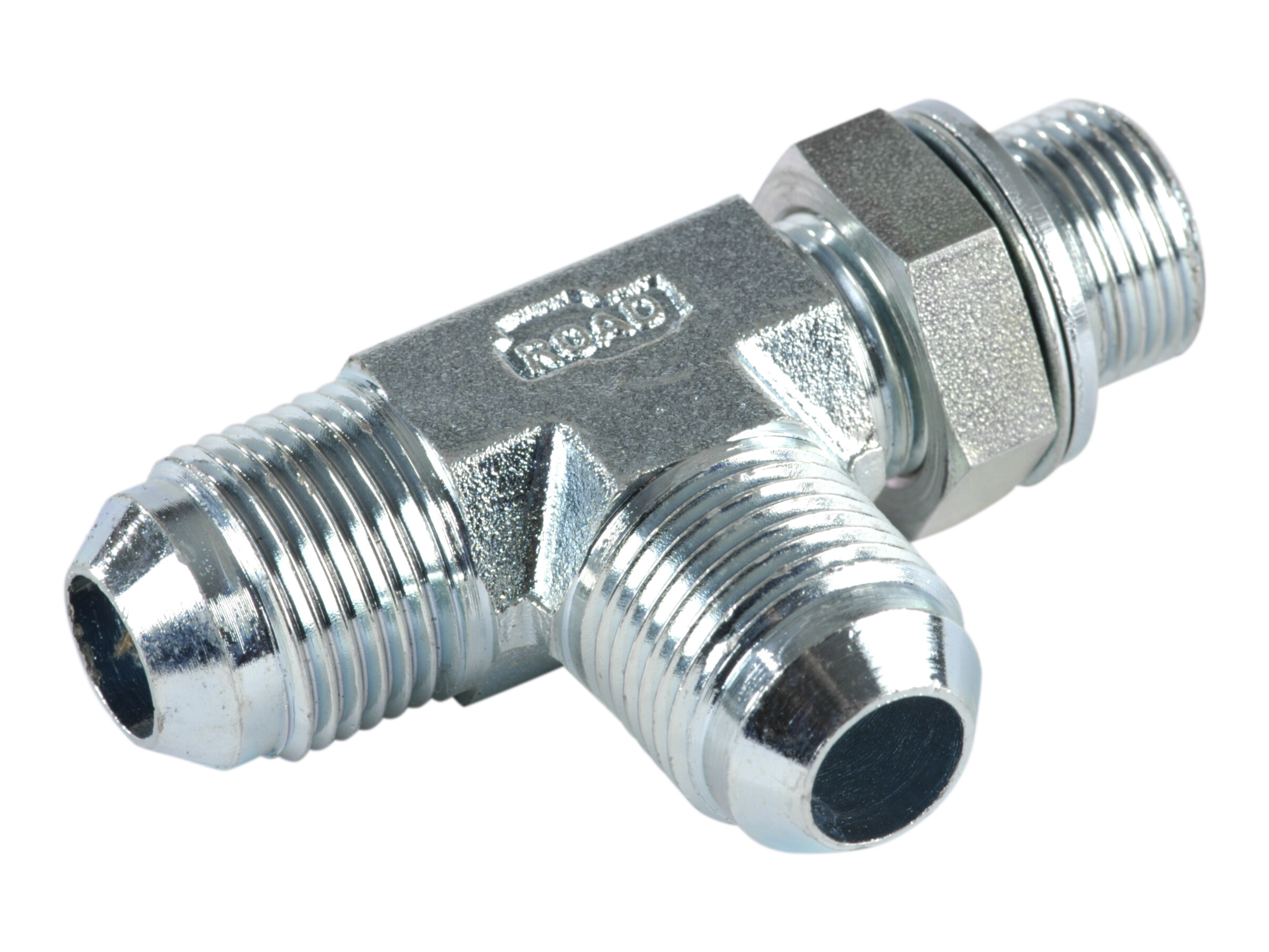

Barrel Tee, cyl. BSP
Barrel tee for creating a T-connection in hydraulic lines, combining two 9/16-18 JIC male connections with one G 3/8 BSPP male port. Suitable for assembling compact branch connections where JIC flare fittings are used together with an ISO 1179 BSPP port connection.
The BSPP male side uses an O-ring sealing interface per ISO 1179. The electro zinc plated surface treatment supports corrosion resistance, specified to 1400 hours salt spray according to DIN EN ISO 9227.
Typical Applications
- Branch connection in hydraulic pipe and hose assemblies
- Adaptation between JIC male connections and an ISO 1179 BSPP port connection
Artikelnummer:
S605-06
Förpackningsstorlek:
1 pcs
Minsta beställningskvantitet:
1 pcs
B
28,5 mm
B1
28,5 mm
C
36,5 mm
CH
22 mm
Diameter rör
10 mm
F
G 3/8 BSP
Gänga utv.
9/16-18 JIC
Gänga utv.
G 3/8 BSP
J
9/16-18 JIC
J1
9/16-18 JIC
Modell kod
A113025/1017
Märke namn
FOR
Rostbeständighet
1400 hours salt spray DIN EN ISO 9227
Standard ISO
ISO 1179
T
10 mm
T1
10 mm
Tillverkningsmaterial
Steel
Tryck max.
250 bar
Ytskiktbehandling
Electro zinc plated
Förpackningsstorlek
1 pcs
Streckkod
407400
Bruttovikt
0,12 Kg
Nettovikt
0,12 Kg
Ursprungsland
ITA
Intrastat artikelkod
73071110
Barrel tee for creating a T-connection in hydraulic lines, combining two 9/16-18 JIC male connections with one G 3/8 BSPP male port. Suitable for assembling compact branch connections where JIC flare fittings are used together with an ISO 1179 BSPP port connection.
The BSPP male side uses an O-ring sealing interface per ISO 1179. The electro zinc plated surface treatment supports corrosion resistance, specified to 1400 hours salt spray according to DIN EN ISO 9227.
Typical Applications
- Branch connection in hydraulic pipe and hose assemblies
- Adaptation between JIC male connections and an ISO 1179 BSPP port connection
