Letkuliitin sk tasapohjaliitin
Temperature/pressure reduction:
-60°C - +20°C = 0%.
+20°C - +50°C = 5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
HPS269-16H
Package size:
1 kpl
Min. order quantity is:
1 kpl

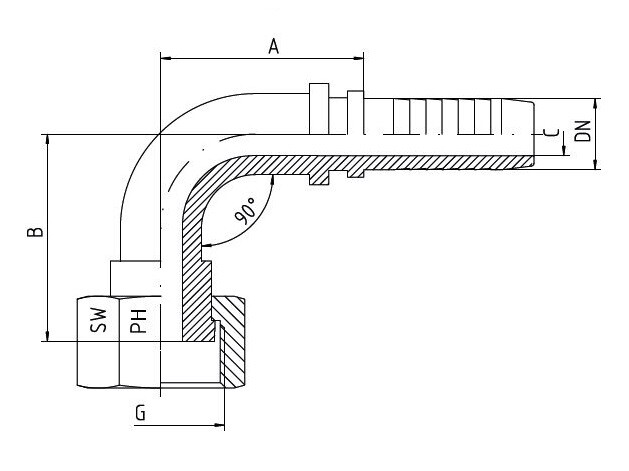

A
78 mm
Angle
90 °
B
64,5 mm
Brand Name
PH Industrie-Hydraulik
C
20 mm
DN
25 mm
G
G 1 BSP
Hose coupling type
For separate ferrule
Hose size
1 "
Key size
41 mm
Material
Stainless steel
Material quality
1.4571 / AISI316Ti
Model code
DRF-1“-90°-DN 25
SW
41 mm
Surface treatment
Uncoated
Temperature max.
+400 °C
Temperature min.
-35 °C
Thread
G 1 BSP
Package size
1 kpl
Barcode
398139
Gross weight
0,20 Kg
Net weight
0,20 Kg
Country of origin
deu
Temperature/pressure reduction:
-60°C - +20°C = 0%.
+20°C - +50°C = 5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
