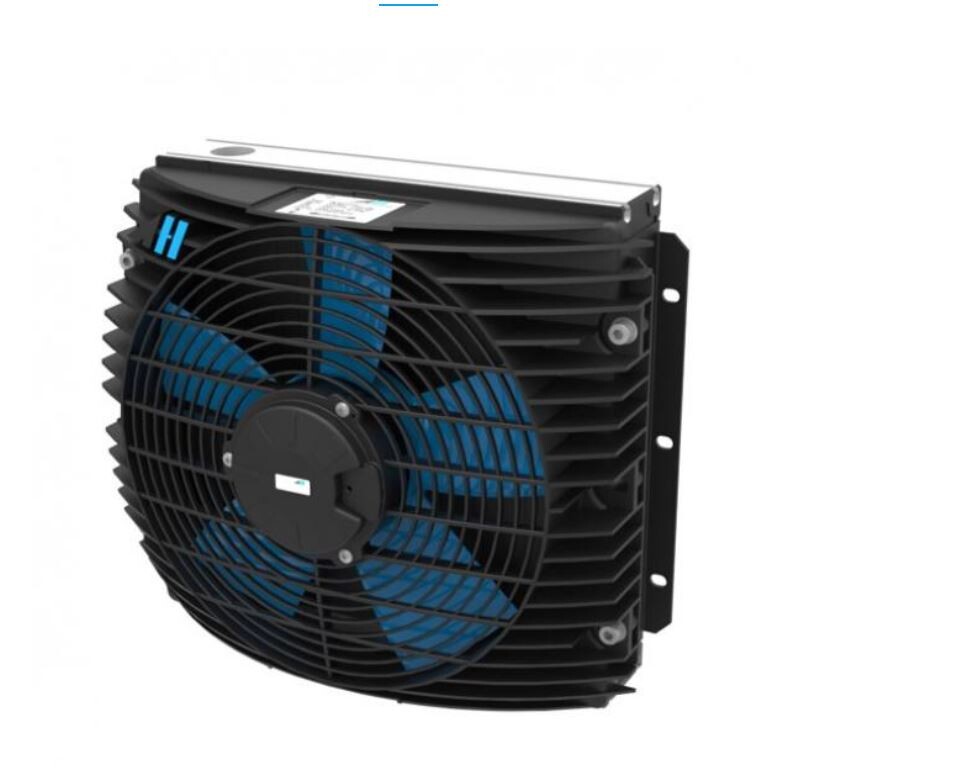

Oil-Air cooler TT 11 rail 12VDC w. pressure by-pass

Oil-Air cooler TT 11 rail 12VDC w. pressure by-pass

NOTE! also requires TT rail connection kit.

Please order separately.

Partnumber:
ASATT11RD01BP
Package size:
1 kpl
Min. order quantity is:
1 kpl
Foot mounting TT 07-36 (heavy duty = mobile use)
Partnumber: ILLEFUSSTTHDK
Mounting feet set ASA-TT 07 - 25
Partnumber: ILLEFUSSTTK
TT Connectorset nominal size 25 Connector: G 1"
Partnumber: ILLZSET5G25
TT-rail Connector Kit Mixed BSP1"
Partnumber: ILLZSET5G25B
Temperature control 12VDC
Partnumber: ILLZTC12-2K
Temperature switch BSP1/2" DIN-3P Set point 50C
Partnumber: ILLZTH4765K
Temperature switch BSP1/2" AMP Superseal 1.5 Set point 50C
Partnumber: ILLZTH5069K
Brand Name
ASA
By-pass valve
Yes
Cooling efficiency
0.28 kW/°C
Current type
DC
Depth
172 mm
Flow rate nominal LMin
150 lpm
Height
340 mm
Material
Aluminium
Model code
ASATT11RD01BP
Noise level
77 dB-A
Pressure max.
26 bar
Pressure static max.
26 bar
Temperature ambient max.
+80 °C
Temperature ambient min.
-20 °C
Temperature working fluid max.
+80 °C
Voltage
12 V
Width
380 mm
Package size
1 kpl
Barcode
472160
Gross weight
Kg
Net weight
9,20 Kg
Country of origin
aut
Intrastat code
84186900

NOTE! also requires TT rail connection kit.

Please order separately.
