Coupling female push/pull 3CFHF - DN12 - M22x1.5
Female push/pull quick coupling for hydraulic lines, designed for fast connection and disconnection of a hydraulic circuit.
The DN12 nominal size defines the coupling flow interface, while the M22x1.5 thread defines the connection to the hydraulic component or hose assembly.
Typical Applications
- Quick connection/disconnection points in hydraulic hose and pipe circuits
- Hydraulic service lines where a push/pull quick coupling interface is required
Partnumber:
3CFHF0821/2215F
Package size:
10 pcs
Min. order quantity is:
1 pcs

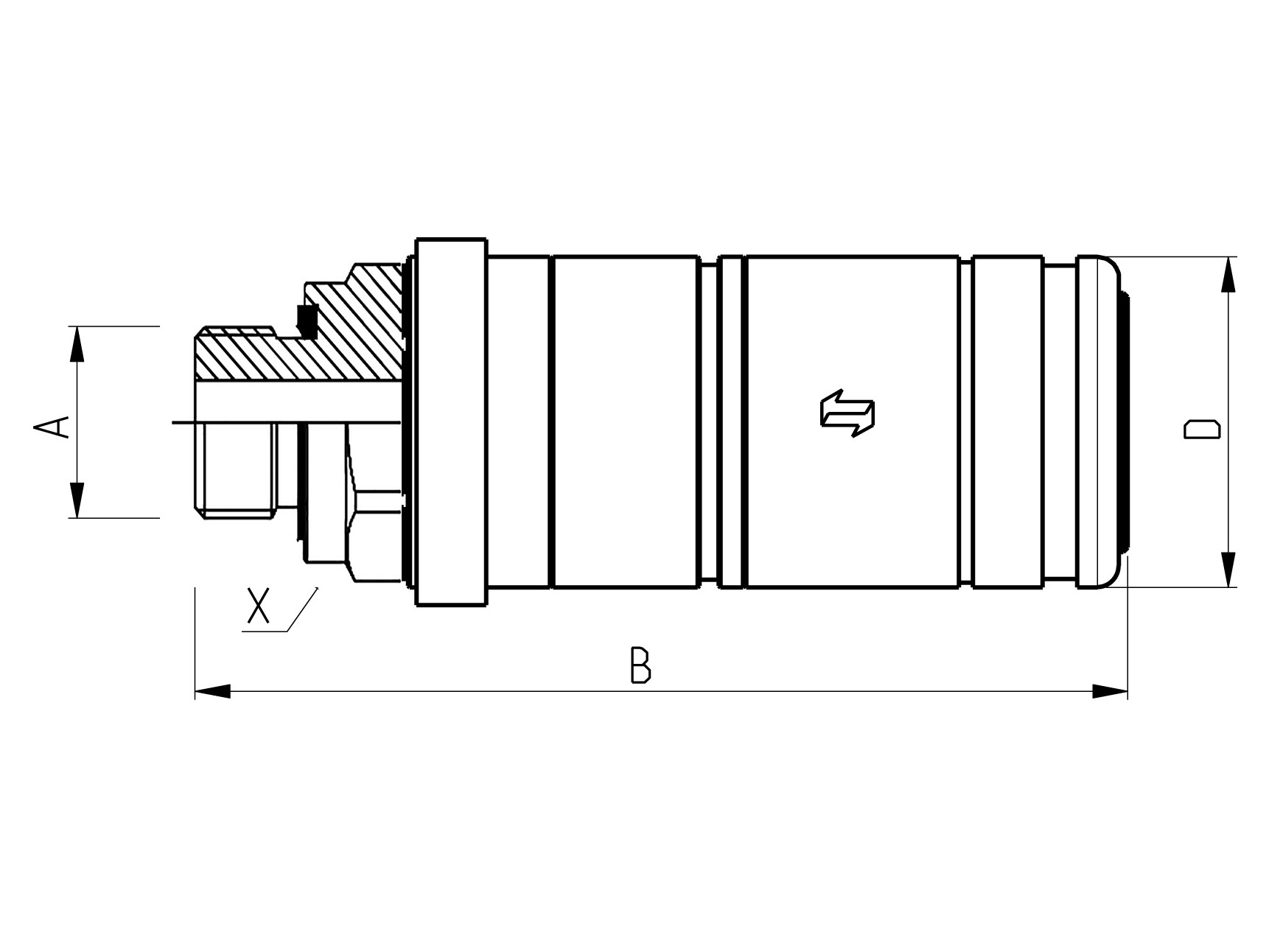

A
M22x1,5
B
110,3 mm
D
42 mm
DN
12.5 mm
Diameter rör
15 mm
Flödeshastighet nominell LMin
70 lpm
Gänga utv. metrisk
M22x1,5
ISO storlek
12.5
Kommentar
ED sealing
Modell kod
3CFPV21/2215 F
Märke namn
Faster
Packningsmaterial
Polyurethane
Rostbeständighet
500 hours salt spray ISO 9227
Serie
L
Sexkant
32 mm
Standard ISO
ISO 7241-1-A
Storlek
1/2 "
Temperatur max.
+100 °C
Temperatur min.
-25 °C
Tillverkningsmaterial
Steel
Tryck max.
250 bar
Tryckeliminator
Yes
Typ
Poppet
X
32 mm
Ytskiktbehandling
Zinc coating (CR III)
Förpackningsstorlek
10 pcs
Streckkod
422067
Bruttovikt
0,51 Kg
Nettovikt
0,51 Kg
Ursprungsland
ita
Intrastat artikelkod
84812010
Female push/pull quick coupling for hydraulic lines, designed for fast connection and disconnection of a hydraulic circuit.
The DN12 nominal size defines the coupling flow interface, while the M22x1.5 thread defines the connection to the hydraulic component or hose assembly.
Typical Applications
- Quick connection/disconnection points in hydraulic hose and pipe circuits
- Hydraulic service lines where a push/pull quick coupling interface is required
