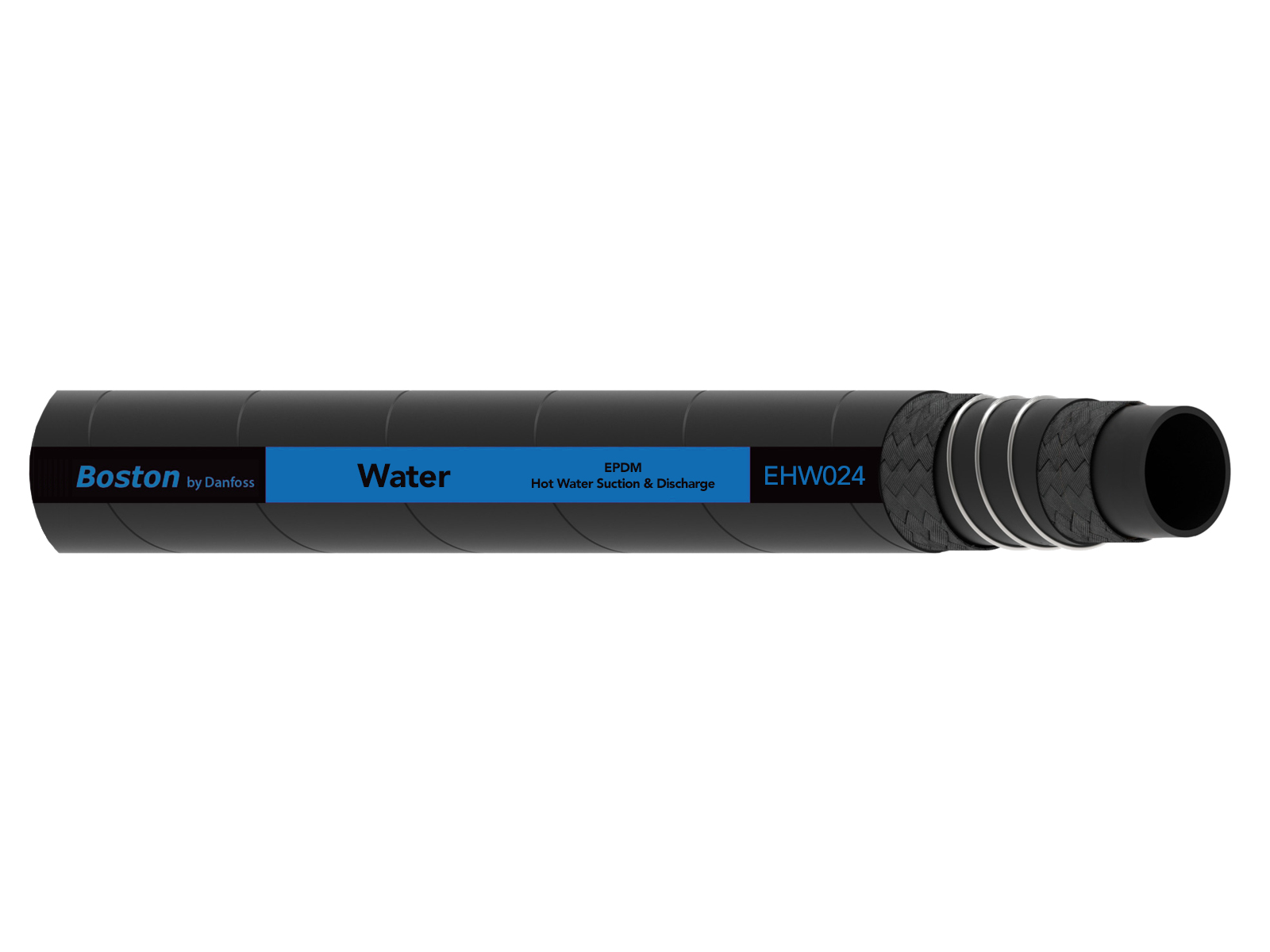

Hot Water Suction & Discharge EPDM with spiral, EHW024

SELECT VARIANT

Partnumber	Description	Diameter inner	Pressure max.	Pressure burst min.	Bend radius
EHW024-08	EPDM Hot Water Suction & Discharge 1/2" 12.9/23	129 mm	10 bar	30 bar	45 mm
EHW024-10	EPDM Hot Water Suction & Discharge 5/8" 16/25 10bar	16 mm	10 bar	30 bar	55 mm
EHW024-12	EPDM Hot Water Suction & Discharge 3/4" 19/28 10bar	19 mm	10 bar	30 bar	65 mm
EHW024-16	EPDM Hot Water Suction & Discharge 1'' WP=10bar 25.4/34	254 mm	10 bar	30 bar	90 mm
EHW024-20	EPDM Hot Water Suction & Discharge 1.1/4 31.8/42 10bar	318 mm	10 bar	30 bar	110 mm
EHW024-24	EPDM Hot Water Suction & Discharge 1.1/2 38.1/48 10bar	381 mm	10 bar	30 bar	135 mm
EHW024-32	EPDM Hot Water Suction & Discharge hose 2" 50.8/62 10bar		10 bar	30 bar
EHW024-48	EPDM Hot Water Suction & Discharge 3'' WP=10bar 76.2/89	762 mm	10 bar	30 bar	340 mm
EHW024-64	EPDM Hot Water Suction & Discharge 4'' WP=10bar 101.6/115	1016 mm	10 bar	30 bar	450 mm

Area of use

AdBlue® (UREA), Air, Washer fluid, Water, Water glycol

Brand Name

Danfoss

Cover

EPDM

Length

Pressure burst min.

Pressure max.

Reinforcement

Synthetic fiber and a helical steel wire

Standard ISO

ISO 1307

Temperature max.

+125

Temperature min.

-40

Tube

EPDM

Vacuum max.

0.92
