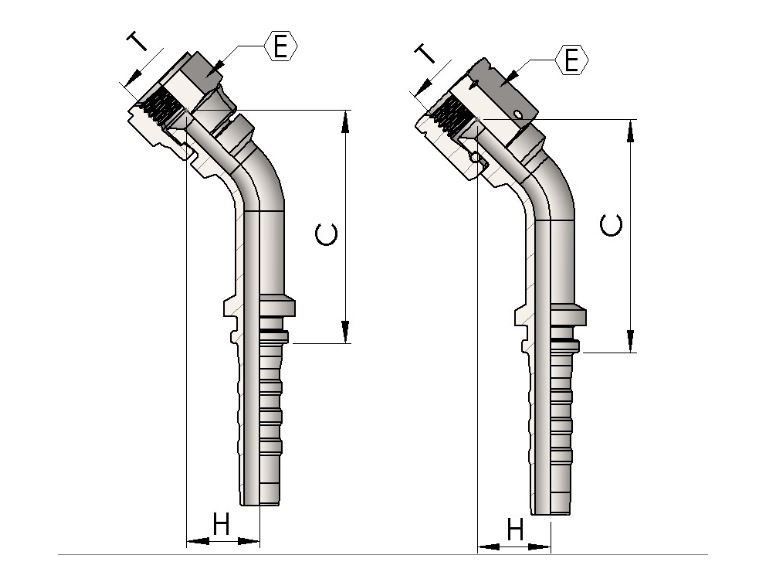

    Insert JIC 45°

    Välj variant
    VÄLJ VARIANT
    VÄLJ VARIANT
    Artikelnummer Beskrivning Gänga Slangdimension Vinkel Slangkopplingstyp
    NS0606NJ45 3/8" Insert (No-Skive) - 9/16"-18 JIC nut - 45° - 1001N06-06 9/16-18 JIC 3/8 " 45 ° For separate ferrule
    NS0608NJ45 3/8" Insert (No-Skive) - 3/4"-16 JIC nut - 45° - 1001N06-08 3/4-16 JIC 3/8 " 45 ° For separate ferrule
    NS0808NJ45 1/2" Insert (No-Skive) - 3/4"-16 JIC nut - 45° - 1001N08-08 3/4-16 JIC 1/2 " 45 ° For separate ferrule
    NS0810NJ45 1/2" Insert (No-Skive) - 7/8"-14 JIC nut - 45° - 1001N08-10 7/8-14 JIC 1/2 " 45 ° For separate ferrule
    NS1010NJ45 5/8" Insert (No-Skive) - 7/8"-14 JIC nut - 45° - 1001N10-10 7/8-14 JIC 5/8 " 45 ° For separate ferrule
    NS1212NJ45 3/4" Insert (No-Skive) - 1.1/16"-12 JIC nut-45°-1000N12-12 1.1/16-12 JIC 3/4 " 45 ° For separate ferrule
    NS1616NJ45 1" Insert (No-Skive) - 1.5/16"-12 JIC nut - 45°-1000N16-16 1.5/16-12 JIC 1 " 45 ° For separate ferrule
    NS2020NJ45 1.1/4" Insert (No-Skive) - 1.5/8"-12 JIC nut-45°-1000N20-20 1.5/8-12 JIC 1.1/4 " 45 ° For separate ferrule
    NS2424NJ45 1.1/2" Insert (No-Skive) - 1.7/8"-12 JIC nut-45°-1000N24-24 1.7/8-12 JIC 1.1/2 " 45 ° For separate ferrule
    Märke namn
    I.M.M Hydraulics
    Slangkopplingstyp
    For separate ferrule
    Vinkel
    45
