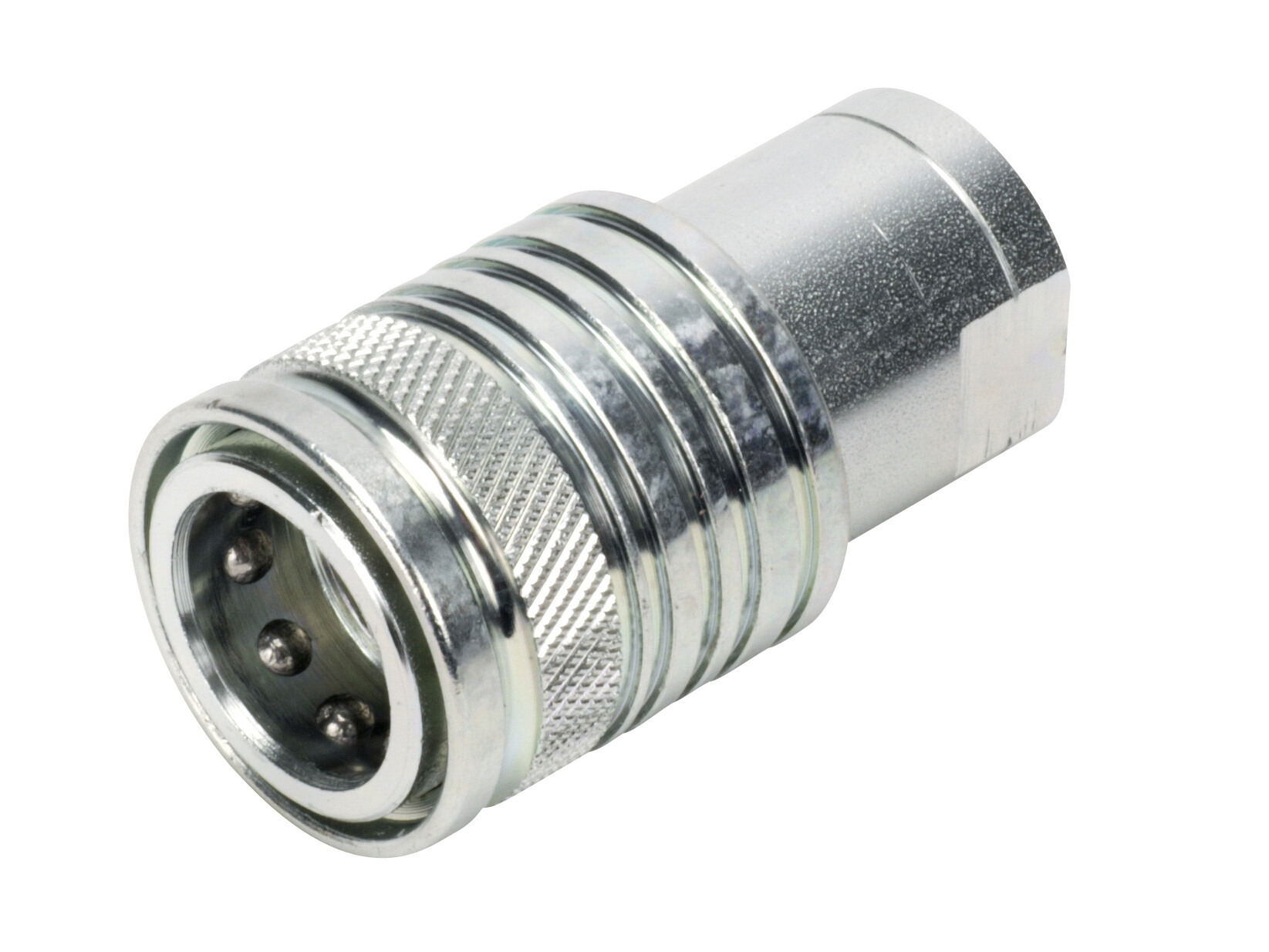

Coupling HP (ISO-A) - DN10 - female - female

VÄLJ VARIANT
Artikelnummer Beskrivning Brand Name Size Pressure max. Thread inner
HP04-1-IGF04 Coupling female HP (ISO-A) - DN06 - 1/4"BSP female Stauff 1/4 " 250 bar G 1/4 BSP
HP08-1-IGF06 Coupling female HP (ISO-A) - DN10 - 3/8"BSP female Stauff 3/8 " 250 bar G 3/8 BSP
HP10-1-IGF06 Coupling female HP (ISO-A) - DN12 - 3/8"BSP female Stauff 1/2 " 250 bar G 3/8 BSP
HP10-1-IGF08 Coupling female HP (ISO-A) - DN12 - 1/2"BSP female Stauff 1/2 " 250 bar G 1/2 BSP
HP10-1-IMF18 Coupling female HP (ISO-A) - DN12 - M18x1.5 female Stauff 1/2 " 250 bar
HP10-1-IMF22 Coupling female HP (ISO-A) - DN12 - M22x1.5 female Stauff 1/2 " 250 bar
HP10-1-IUF08 Coupling female HP (ISO-A) - DN12 - 3/4"UNF female Stauff 1/2 " 250 bar
HP12-1-IGF12 Coupling female HP (ISO-A) - DN20 - 3/4"BSP female Stauff 3/4 " 250 bar G 3/4 BSP
HP20-1-IGF16 Coupling female HP (ISO-A) - DN25 - 1"BSP female Stauff 1 " 250 bar G 1 BSP
Brand Name
Stauff

Pressure max.
250

Sealing material
NBR

Standard ISO
ISO 7241-1-A

Temperature max.
+100

Temperature min.
-20
