Coupling HP (ISO-A) - DN12 - male

Coupling HP (ISO-A) - DN12 - male

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Brand Name Size Pressure max. Standard ISO

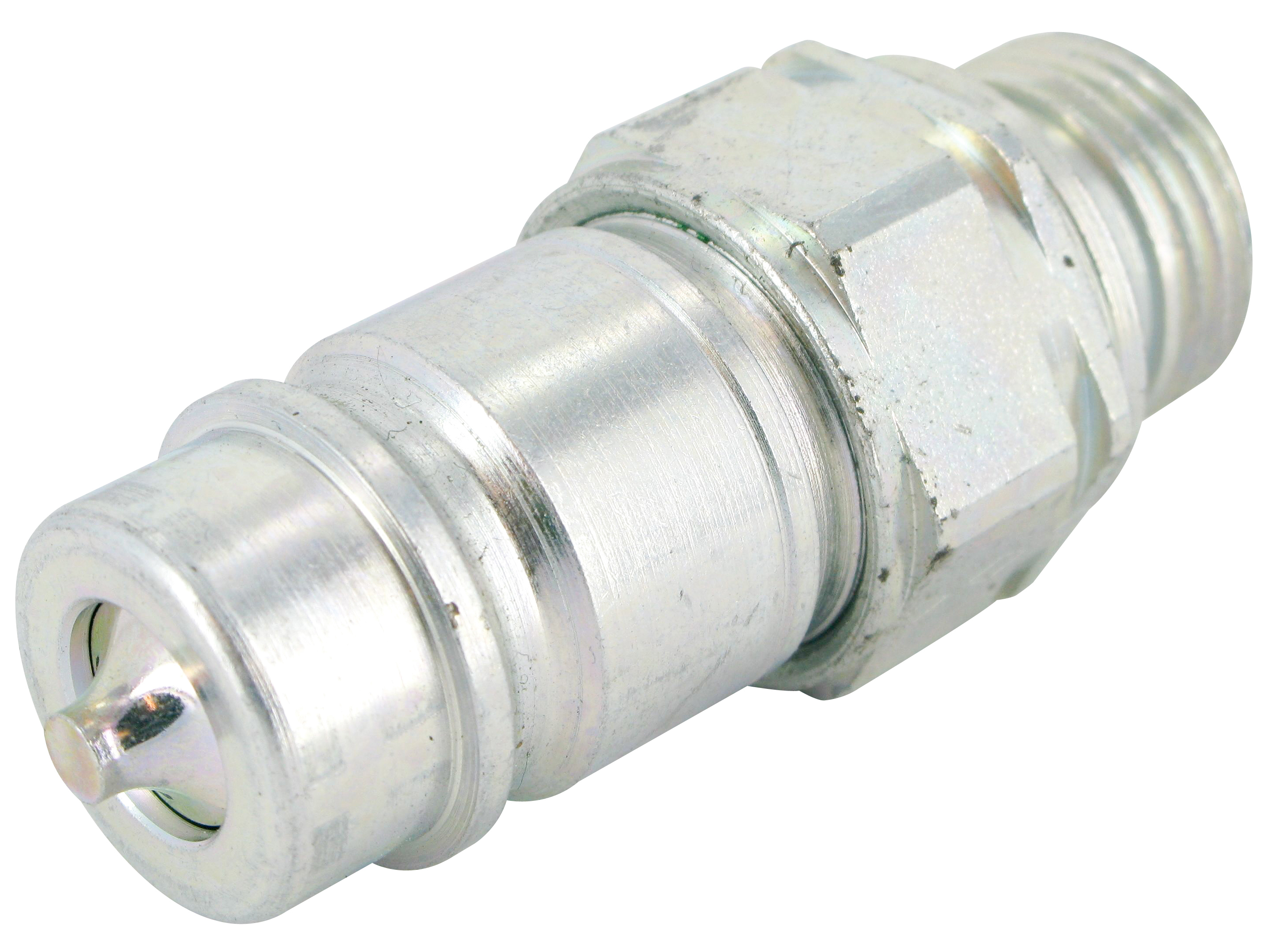

HP08-2-AGF06 Coupling male HP (ISO-A) - DN10 - 3/8"BSP Stauff 3/8 " 250 bar ISO 7241-1-A
HP10-2-AGF06 Coupling male HP (ISO-A) - DN12 - 3/8"BSP Stauff 1/2 " 250 bar ISO 7241-1-A
HP10-2-AGF08 Coupling male HP (ISO-A) - DN12 - 1/2"BSP Stauff 1/2 " 250 bar ISO 7241-1-A
HP10-2-L1218 Coupling male HP (ISO-A) - DN12 - M18x1.5 (12L) Stauff 1/2 " 250 bar ISO 7241-1-A
HP10-2-L1522 Coupling male HP (ISO-A) - DN12 - M22x1.5 (15L) Stauff 1/2 " 250 bar ISO 7241-1-A

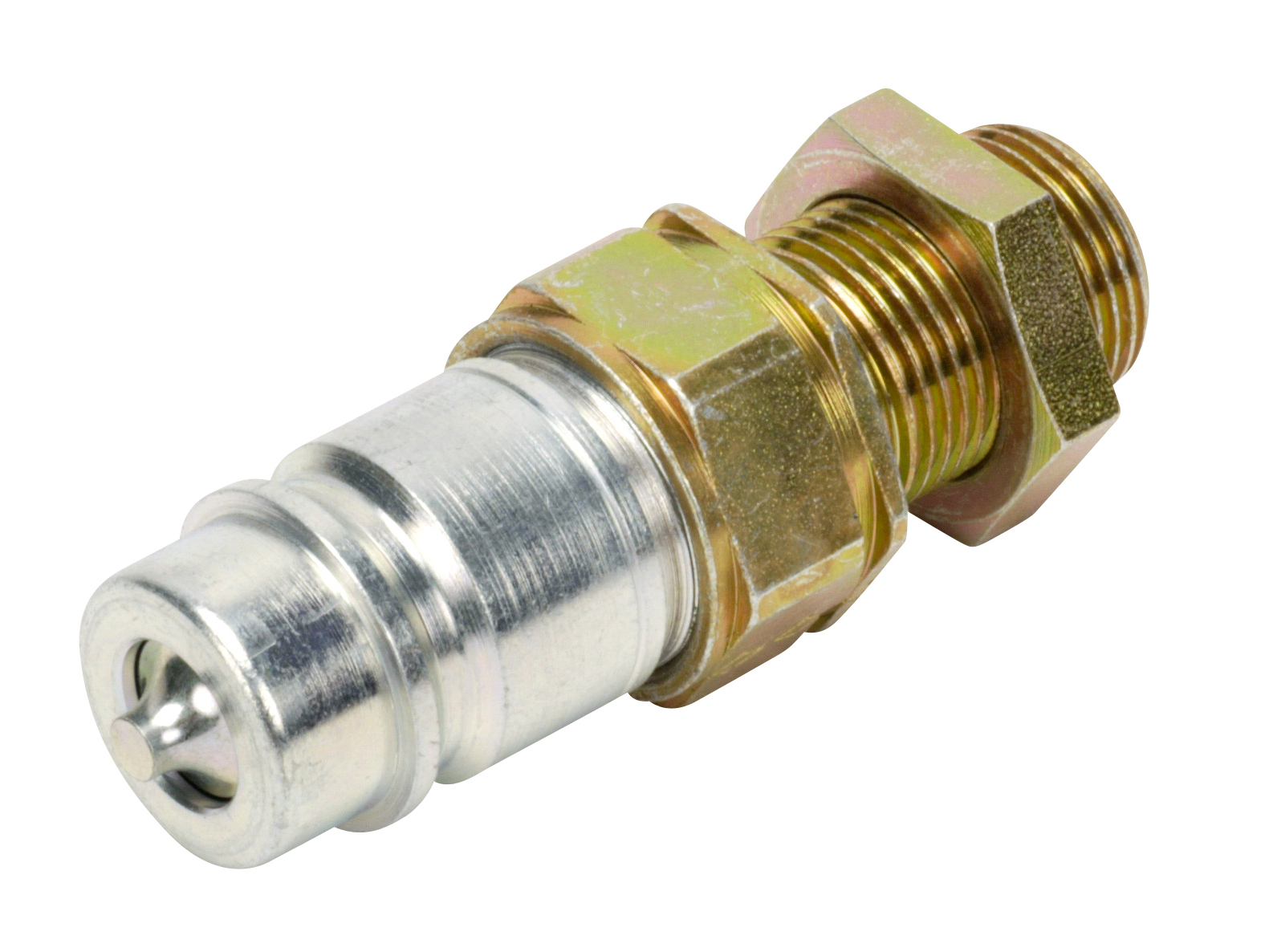

HP10-2-N1016 Coupling male HP (ISO-A) - DN12 - M16x1.5 (10L) bulkhead Stauff 1/2 " 250 bar ISO 7241-1-A
HP10-2-N1218 Coupling male HP (ISO-A) - DN12 - M18x1.5 (12L) bulkhead Stauff 1/2 " 250 bar ISO 7241-1-A
HP10-2-N1522 Coupling male HP (ISO-A) - DN12 - M22x1.5 (15L) bulkhead Stauff 1/2 " 250 bar ISO 7241-1-A
HP10-2-N1826 Coupling male HP (ISO-A) - DN12 - M26x1.5 (18L) bulkhead Stauff 1/2 " 250 bar ISO 7241-1-A
HP10-2-T1220 Coupling male HP (ISO-A) - DN12 - M20x1.5 (12S) bulkhead Stauff 1/2 " 250 bar ISO 7241-1-A
Brand Name
Stauff
Pressure max.
250
Sealing material
NBR
Standard ISO
ISO 7241-1-A
Temperature max.
+100
Temperature min.
-20
