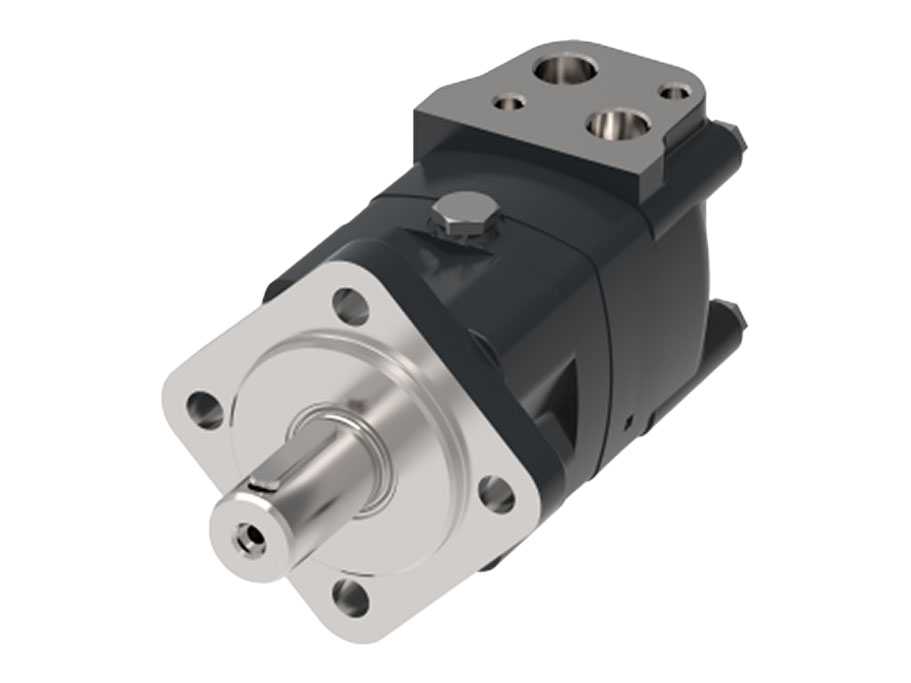

XL2

SELECT VARIANT

Partnumber	Description	Shaft diameter	Shaft type	Displacement	Continuous rotation max.
629AG00715A	XL2 80 Ø32mm 4-hole 106.4	32 mm	Cyl. Ø 32 mm	80 cm3	908 rpm
629AG00716A	XL2 100 Ø32mm 4-hole 106.4	32 mm	Cyl. Ø 32 mm	100 cm3	739 rpm
629AG00717A	XL2 130 Ø32mm 4-hole 106.4	32 mm	Cyl. Ø 32 mm	130 cm3	575 rpm
629AG00718A	XL2 160 Ø32mm 4-hole 106.4	32 mm	Cyl. Ø 32 mm	160 cm3	477 rpm
629AG00719A	XL2 195 Ø32mm 4-hole 106.4	32 mm	Cyl. Ø 32 mm	195 cm3	385 rpm
629AG00720A	XL2 245 Ø32mm 4-hole 106.4		Cyl. Ø 32 mm	245 cm3	230 rpm
629AG00721A	XL2 305 Ø32mm 4-hole 106.4	32 mm	Cyl. Ø 32 mm	305 cm3	246 rpm
629AG00736A	Orbit motor XL2 160 1.1/4-14T 4-hole 106.4

Brand Name

Danfoss

Contamination level max.

20/18/13 - ISO 4406

Drain line requirements

Recommended (Required under high case pressure)

Paint

Black

Shaft Seal Type

Standard shaft seal

Temperature max.

+180

Temperature min.

-30
