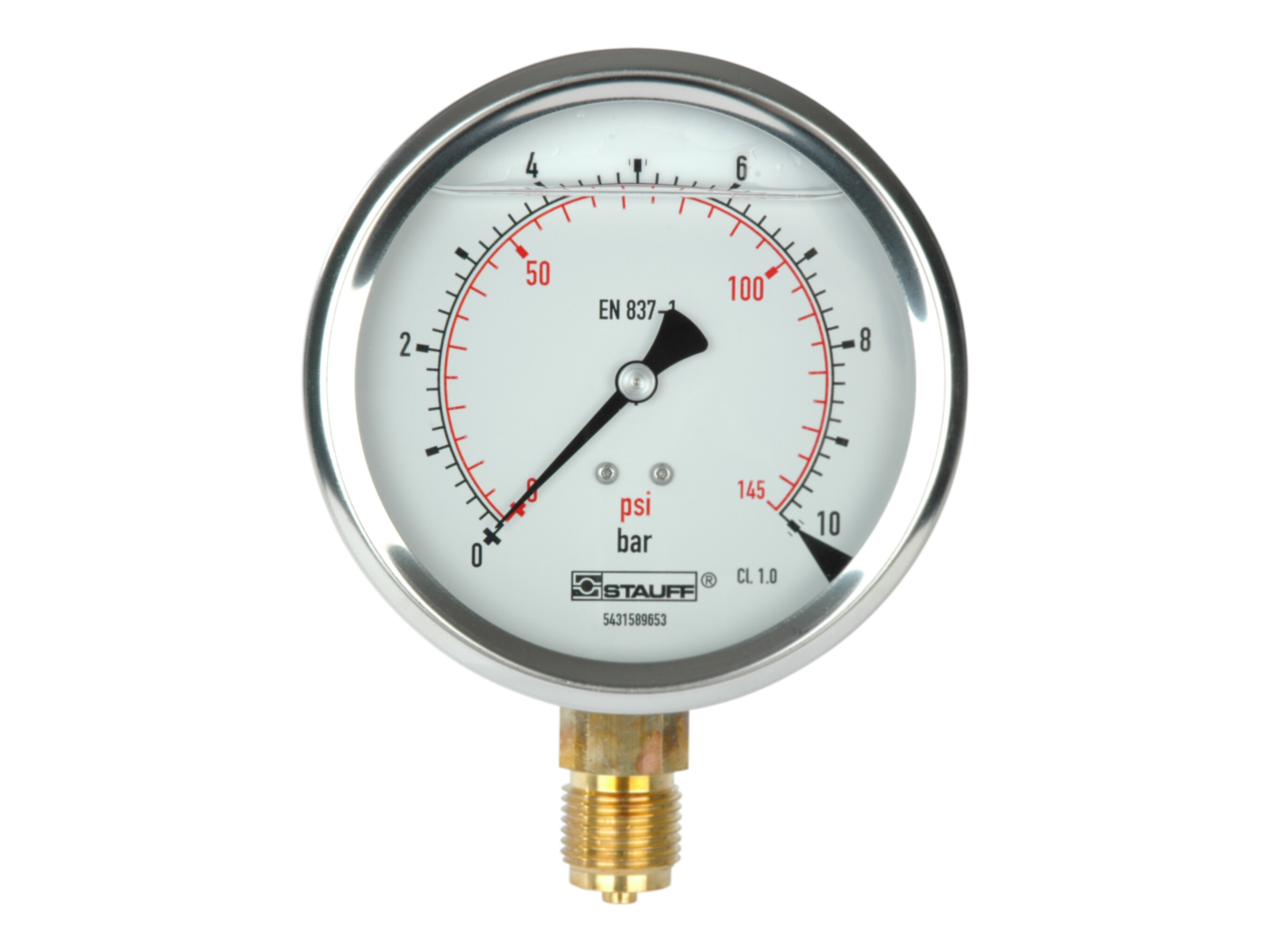

Glycerine filled - Ø100mm pressure gauge with side connection, stainless steal

Glycerine filled - Ø100mm pressure gauge with side connection, stainless steal

Välj variant
VÄLJ VARIANT
VÄLJ VARIANT
Artikelnummer Beskrivning Pressure setting min. Pressure setting max. Pressure measurement accuracy Thread
SPG100-004SB 1/2" pressure gauge. Stem mount. Scale 0-4 bar 0 bar 4 bar ±1,0% FS G 1/2 BSP
SPG100-01.5S 1/2" pressure gauge. Stem mount. Scale 0-1.5 bar 0 bar 1.5 bar ±1,0% FS G 1/2 BSP
SPG100-010SB 1/2" pressure gauge. Stem mount. Scale 0-10 bar 0 bar 10 bar ±1,0% FS G 1/2 BSP
SPG100-016SB 1/2" pressure gauge. Stem mount. Scale 0-16 bar 0 bar 16 bar ±1,0% FS G 1/2 BSP
SPG100-025SB 1/2" pressure gauge. Stem mount. Scale 0-25 bar 0 bar 25 bar ±1,0% FS G 1/2 BSP
SPG100-040SB 1/2" pressure gauge. Stem mount. Scale 0-40 bar 0 bar 40 bar ±1,0% FS G 1/2 BSP
SPG100-060SB 1/2" pressure gauge. Stem mount. Scale 0-60 bar 0 bar 60 bar ±1,0% FS G 1/2 BSP
SPG100-100SB 1/2" pressure gauge. Stem mount. Scale 0-100 bar 0 bar 100 bar ±1,0% FS G 1/2 BSP
SPG100-160SB 1/2" pressure gauge. Stem mount. Scale 0-160 bar 0 bar 160 bar ±1,0% FS G 1/2 BSP
SPG100-250SB 1/2" pressure gauge. Stem mount. Scale 0-250 bar 0 bar 250 bar ±1,0% FS G 1/2 BSP
SPG100-400SB 1/2" pressure gauge. Stem mount. Scale 0-400 bar 0 bar 400 bar ±1,0% FS G 1/2 BSP
SPG100-600SB 1/2" pressure gauge. Stem mount. Scale 0-600 bar 0 bar 600 bar ±1,0% FS G 1/2 BSP
SPG100-680SB 1/2" pressure gauge. Stem mount. Scale 0-680 bar 0 bar 680 bar ±1,0% FS G 1/2 BSP
SPG100-700SB 1/2" pressure gauge. Stem mount. Scale 0-700 bar 0 bar 700 bar ±1,0% FS G 1/2 BSP
SPG1001000SB 1/2" pressure gauge. Stem mount. Scale 0-1000 bar 0 bar 1000 bar ±1,0% FS G 1/2 BSP
SPG100M1-1.5SB 1/2" pressure gauge,-1+1,5 bar - REPLACED BY SPG100M1-1.5SB -1 bar 1.5 bar ±1,0% FS G 1/2 BSP
SPG100M1-3SB 1/2" pressure gauge,stainless - REPLACED BY SPG100M1-3SB -1 bar 3 bar ±1,0% FS G 1/2 BSP
Brand Name
Stauff
Diameter
100
Glass type
Acrylic glass
Material
Stainless steel
Material quality
1.4301 / AISI304
Port position
Side
Pressure measurement accuracy
±1,0% FS
Thread
G 1/2
