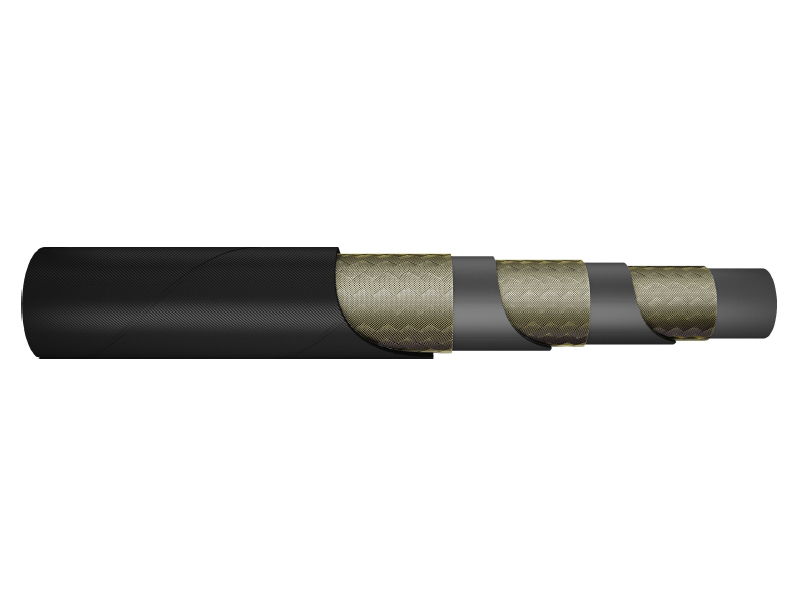

SPT 3WB CH hydraulic hoses

3/8" Hydraulic hose SPT-306CH - 3SC WP 500 bar

1/2" Hydraulic hose SPT-308CH - 3SC WP 475 bar

5/8" Hydraulic hose SPT-310CH - 3SC WP 420 bar

3/4" Hydraulic hose SPT-312CH - 3SC WP 380 bar

1" Hydraulichose SPT-316CH - 3SC WP 315 bar

SELECT VARIANT

Partnumber	Description	Hose size	Pressure max.	Bend radius
SPT306CH	3/8" Hydraulic hose SPT-306CH - 3SC WP 500 bar	3/8 "	500 bar	110 mm
SPT308CH	1/2" Hydraulic hose SPT-308CH - 3SC WP 475 bar	1/2 "	475 bar	140 mm
SPT310CH	5/8" Hydraulic hose SPT-310CH - 3SC WP 420 bar	5/8 "	420 bar	200 mm
SPT312CH	3/4" Hydraulic hose SPT-312CH - 3SC WP 380 bar	3/4 "	380 bar	240 mm
SPT316CH	1" Hydraulichose SPT-316CH - 3SC WP 315 bar	1 "	315 bar	300 mm

Brand Name

Hydraspecma

Reinforcement

3 layer high tensile steel wire braid

Temperature max.

+100

Temperature min.

-40

Tube

NBR (Nitrile)
