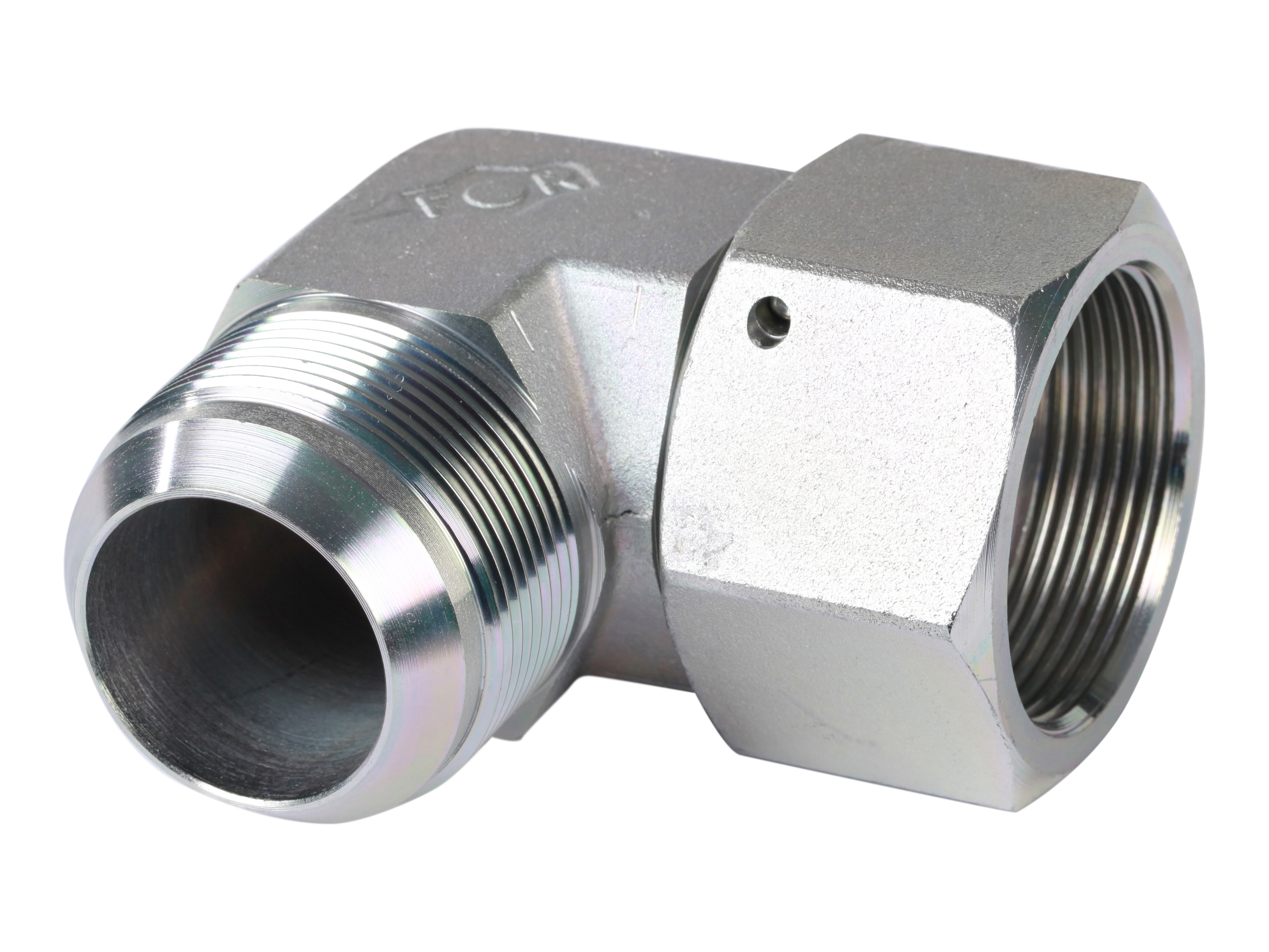

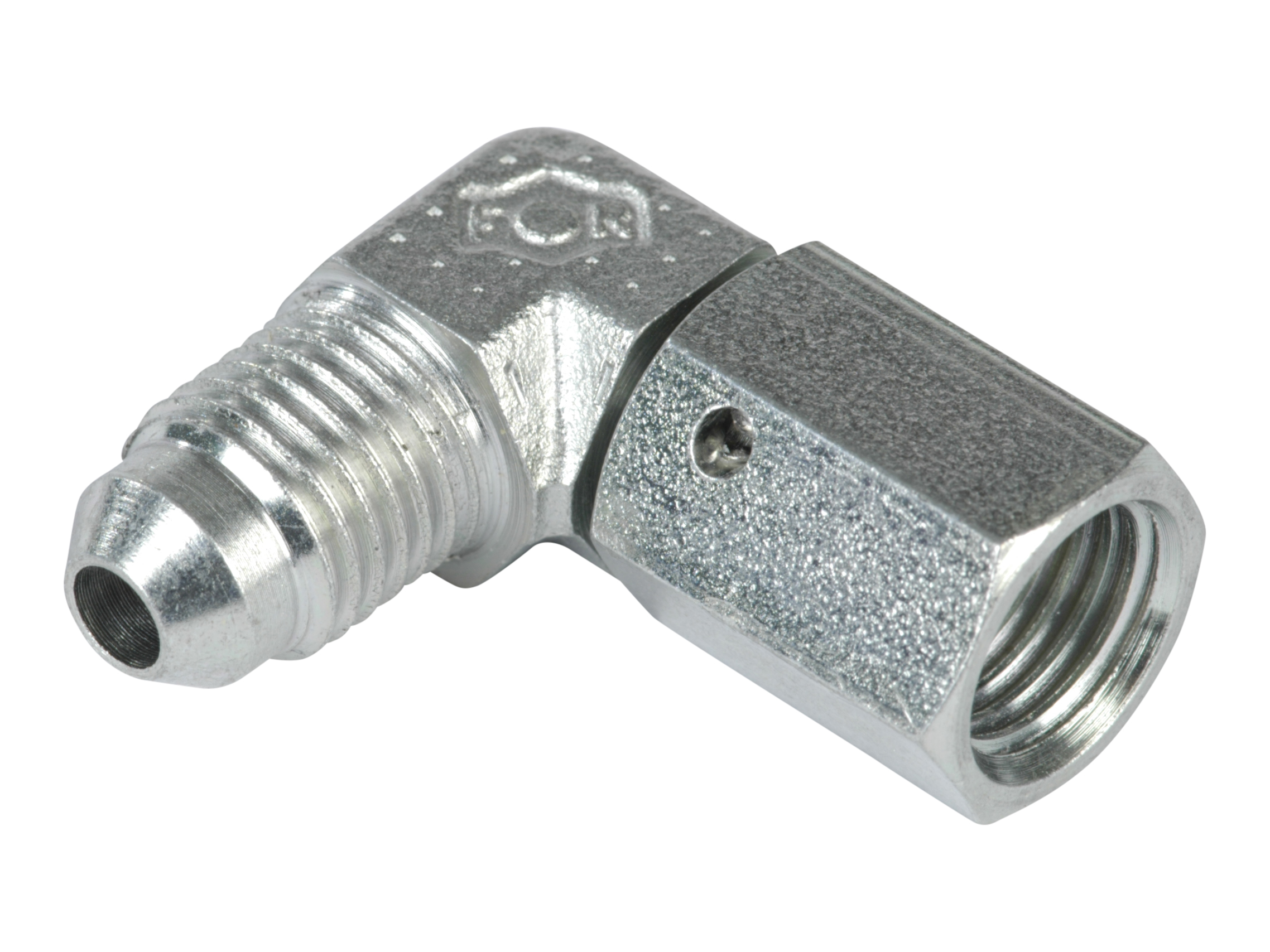

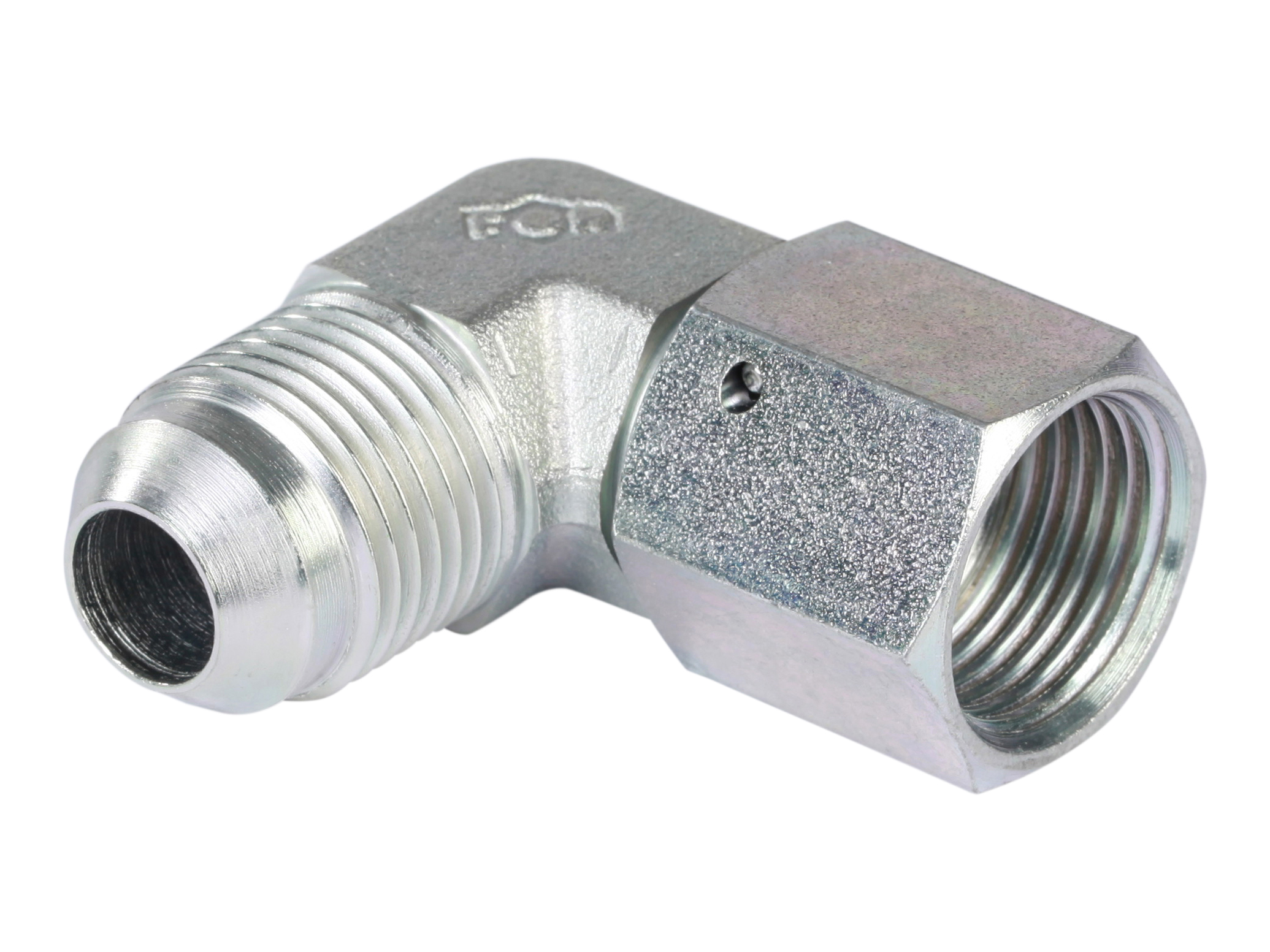

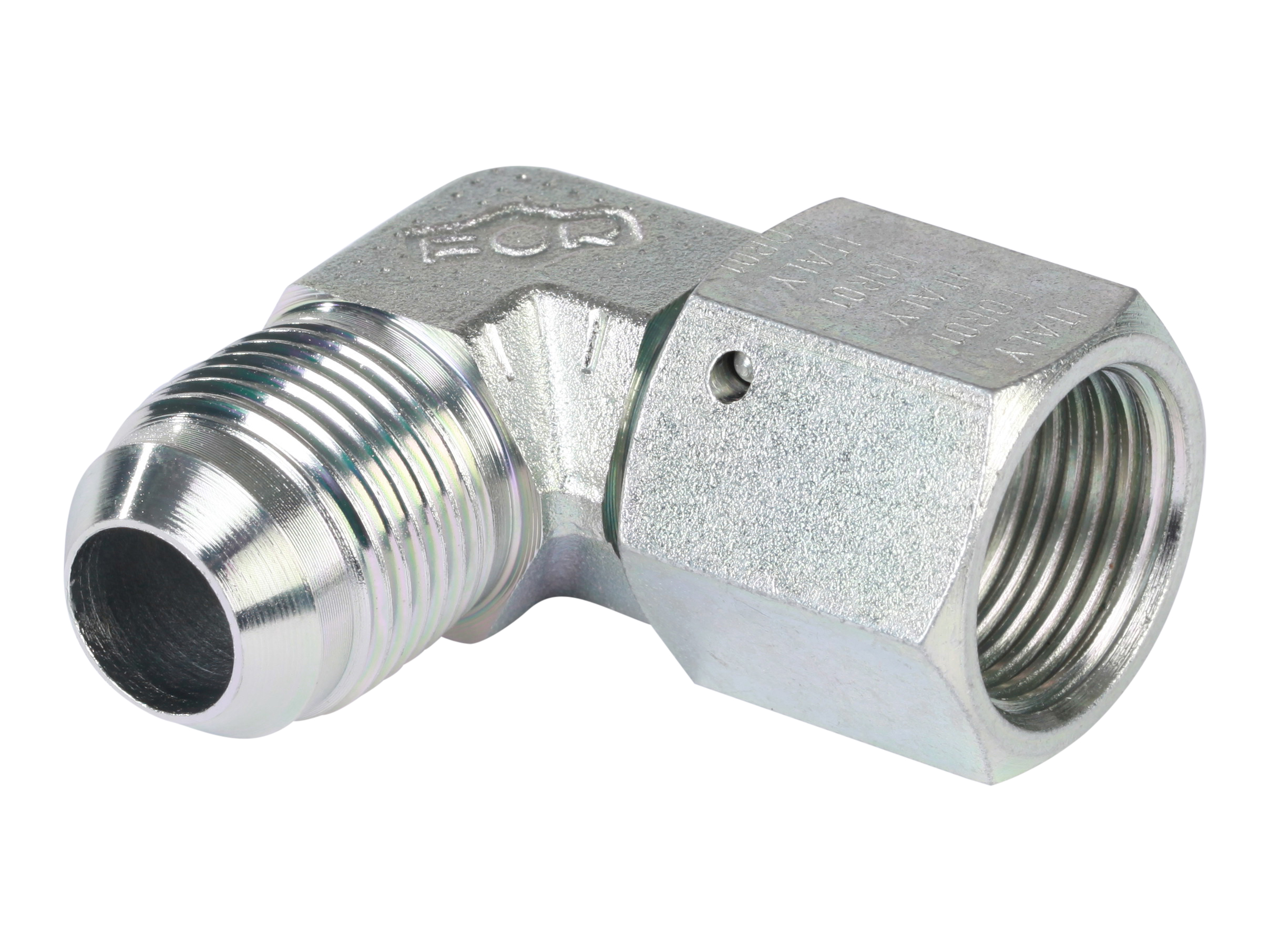

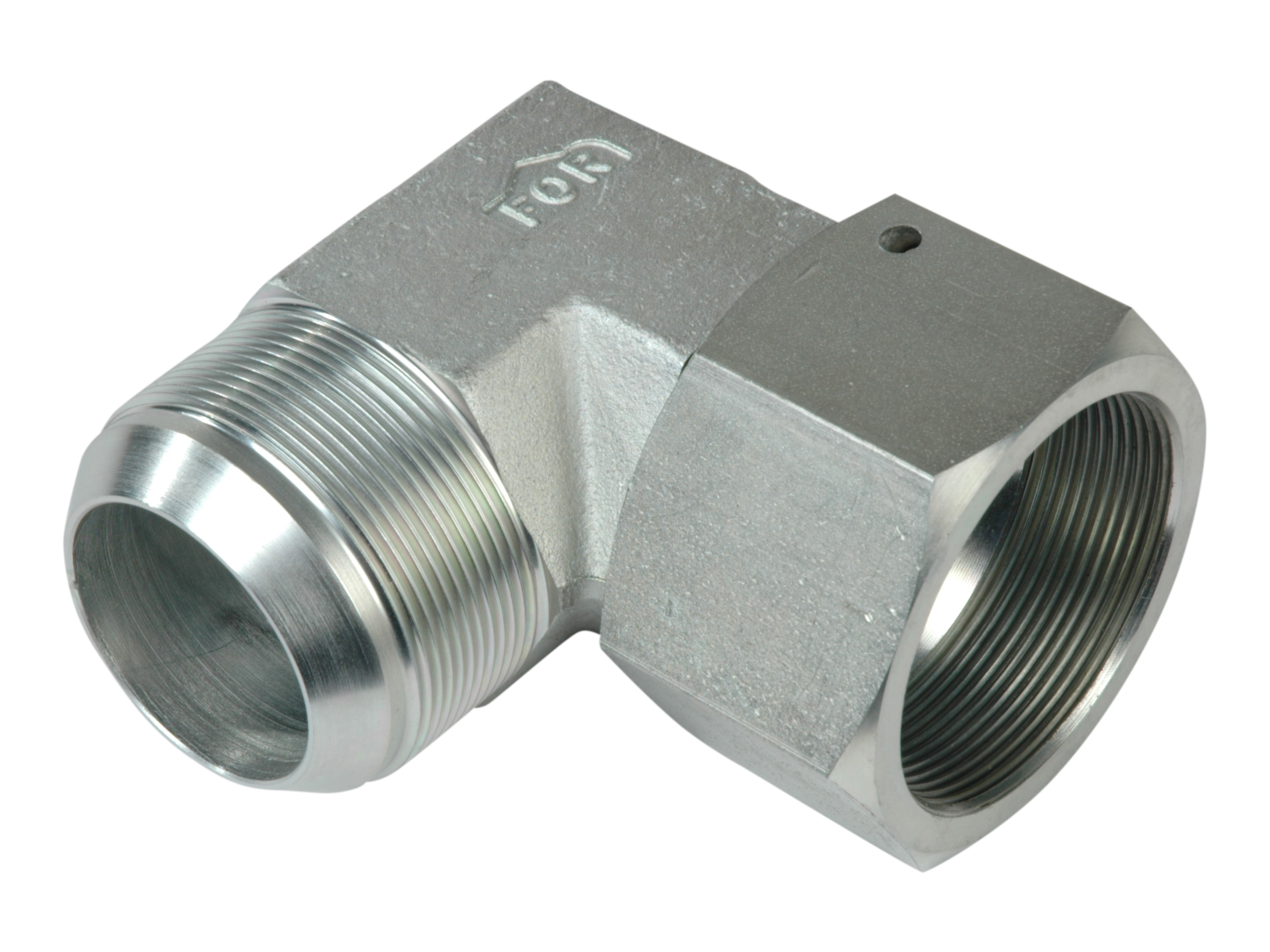

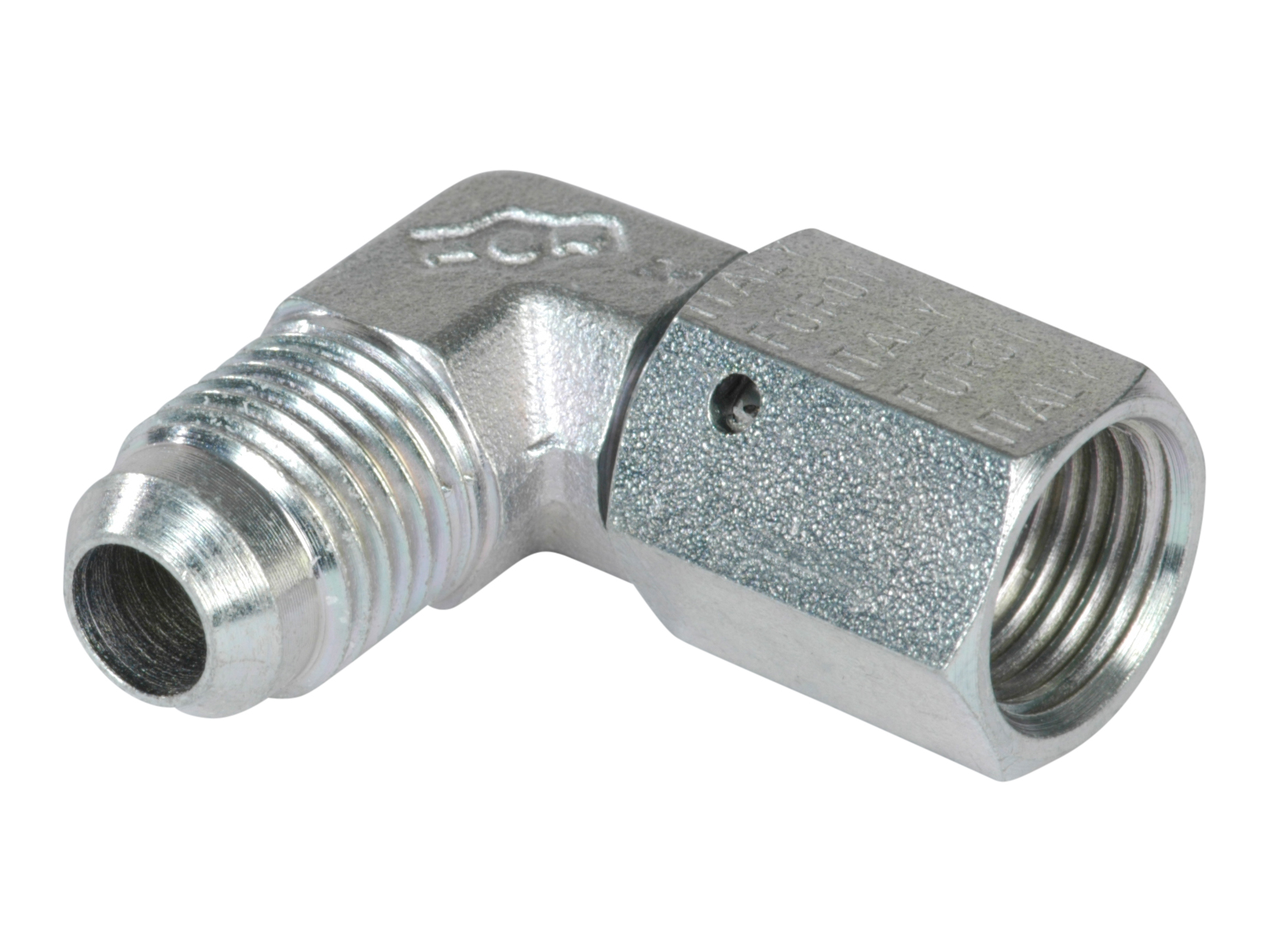

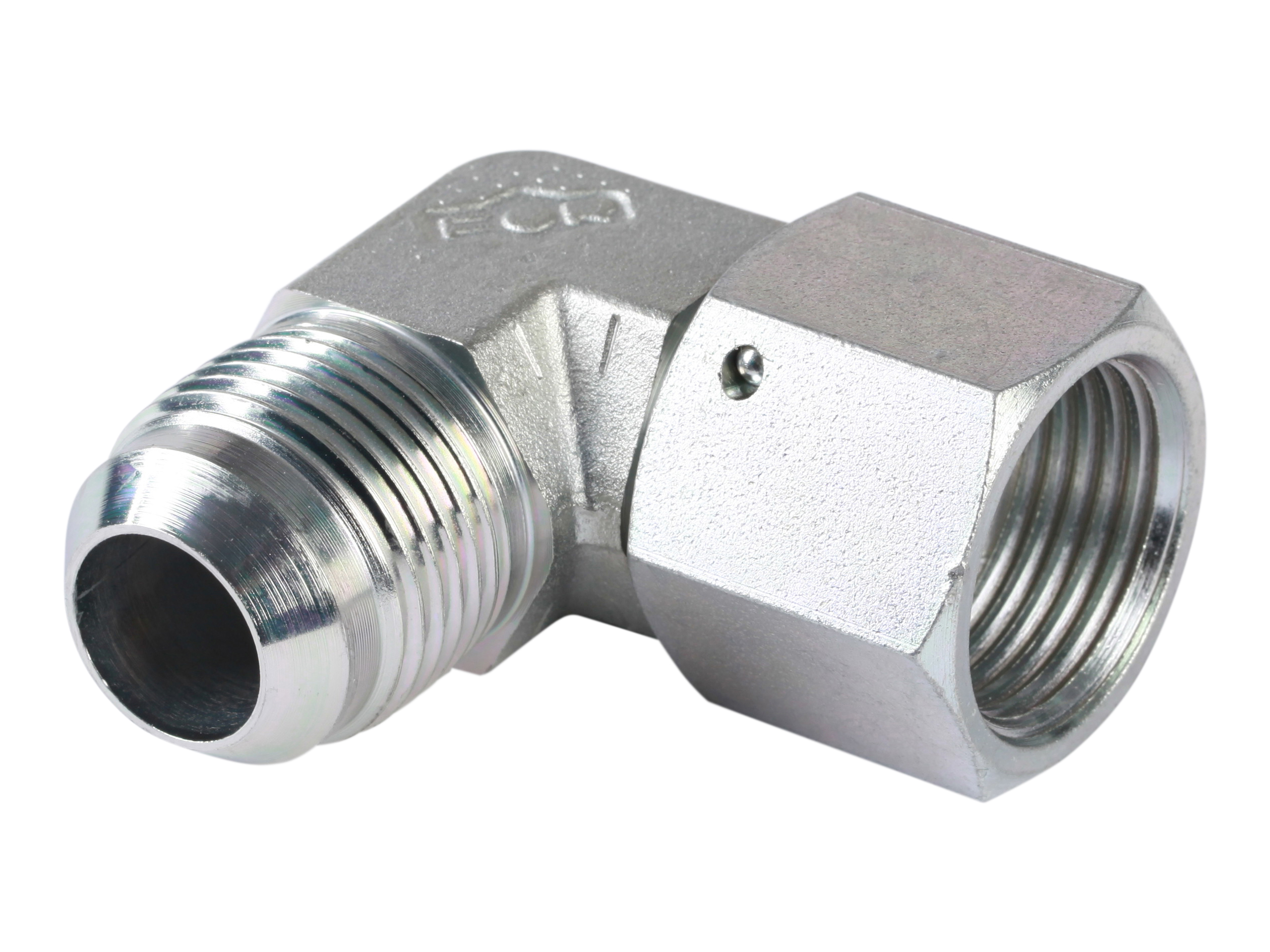

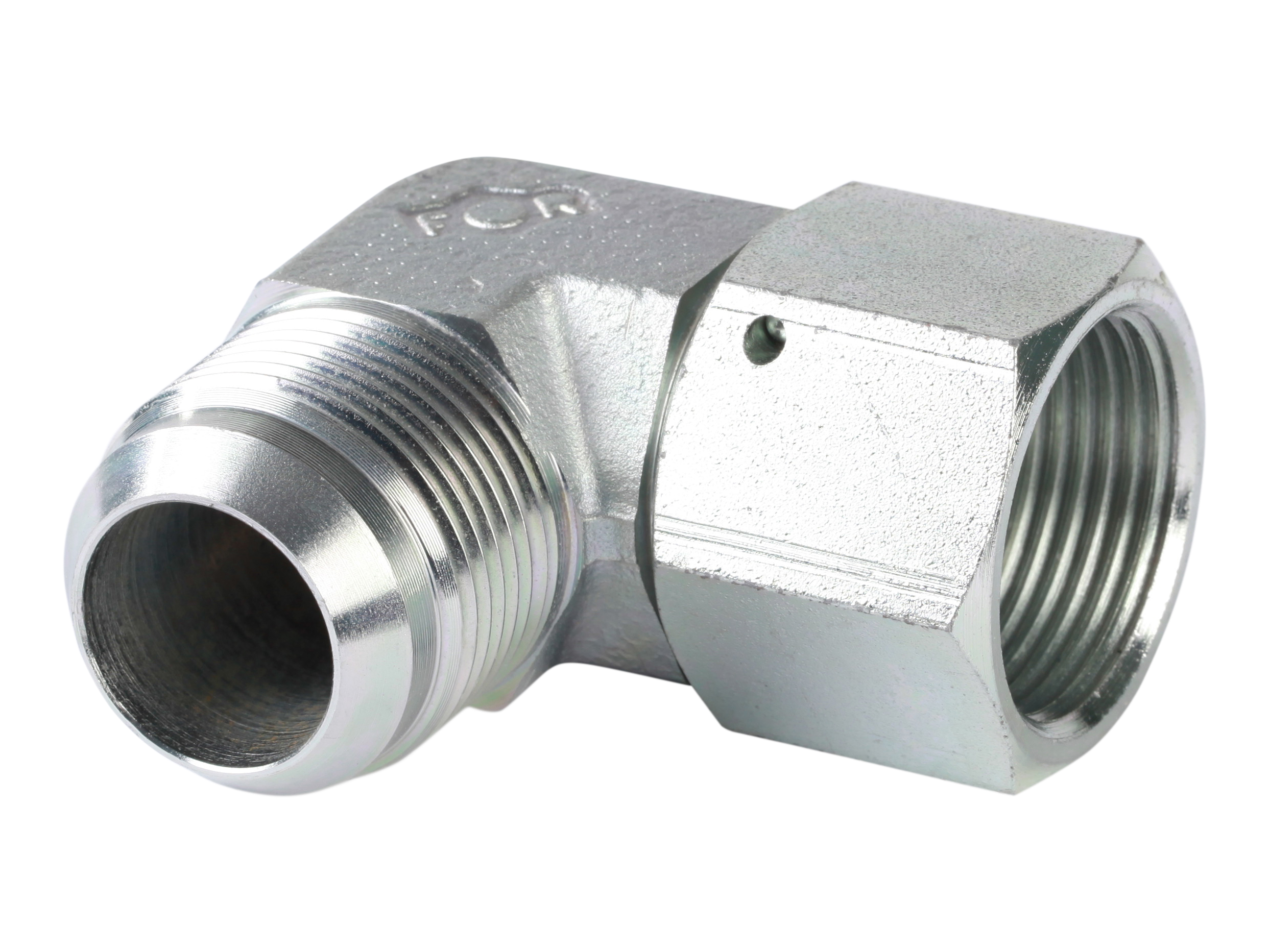

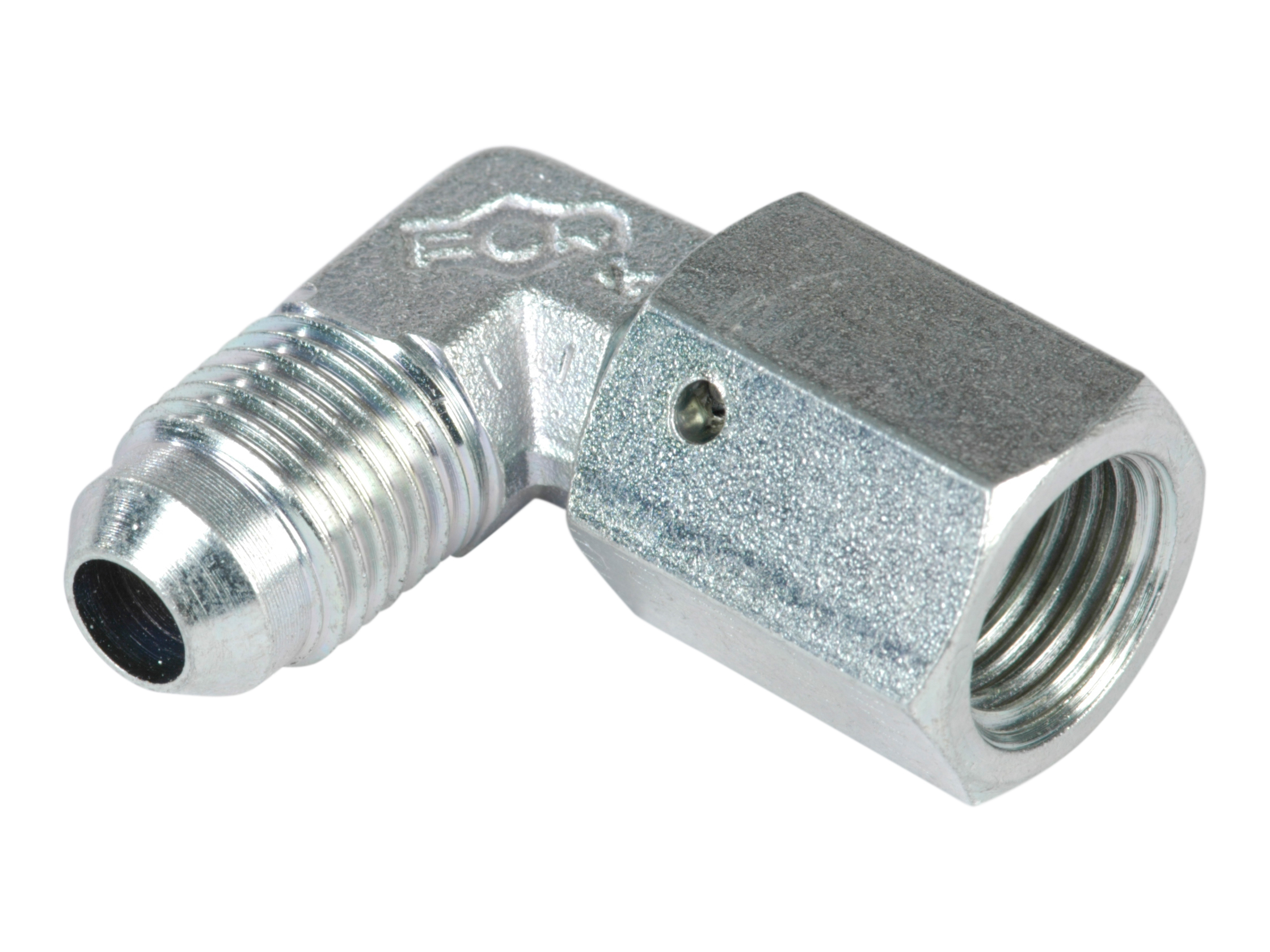

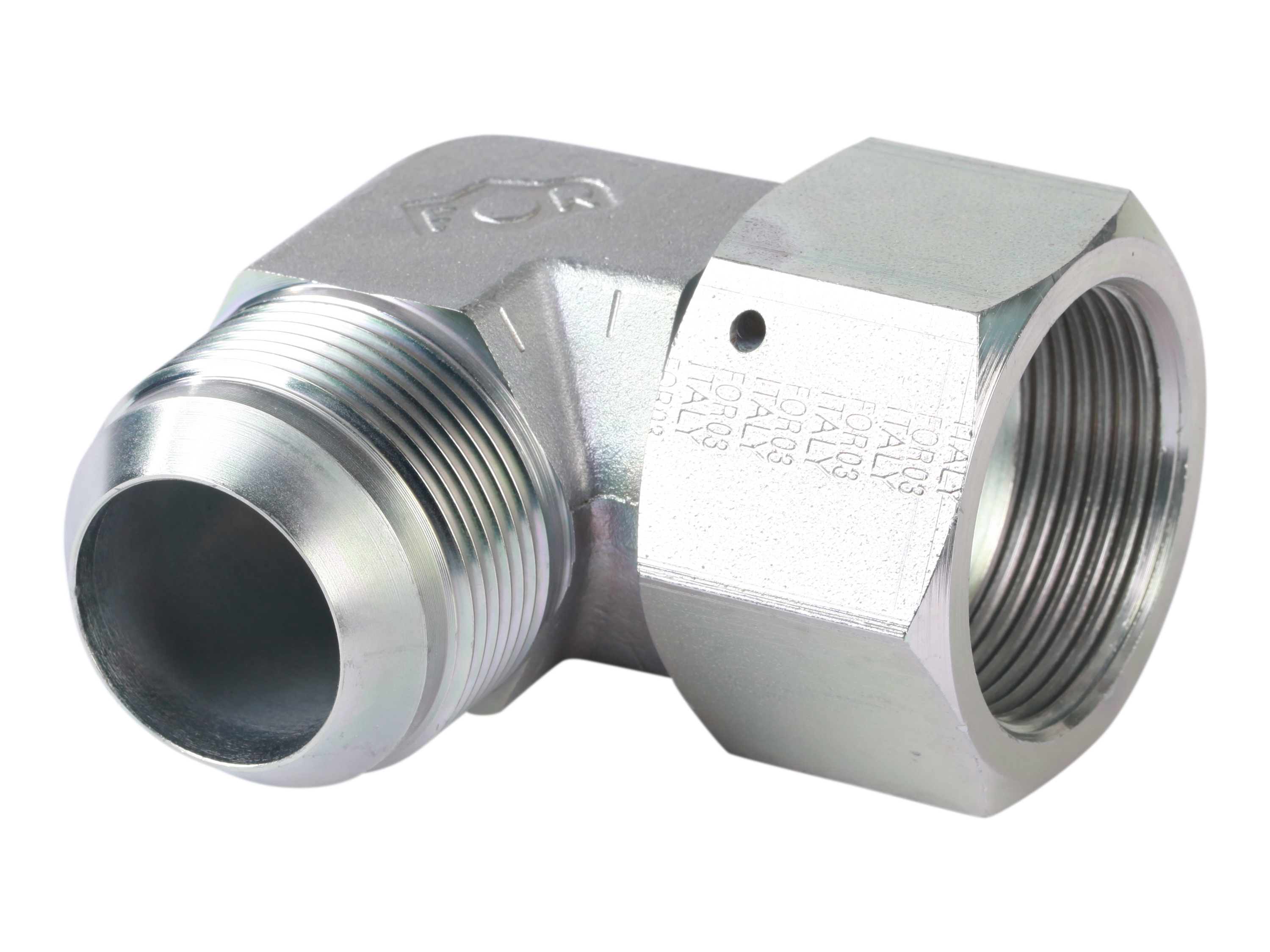

Elbow adapter 90° JIC male x JIC union nut - S675-FOR / CG / JEVW-ST

SELECT VARIANT
Partnumber Description Diameter pipe Thread inner Thread outer Pressure max.
CG-06 S675-06LG elbow with nut 6 mm 7/16-20 JIC 7/16-20 JIC 450 bar
CG-08 S675-08LG elbow with nut 8 mm 1/2-20 JIC 1/2-20 JIC 416 bar
CG-10 S675-10LG elbow with nut 10 mm 9/16-18 JIC 9/16-18 JIC 350 bar
CG-12 S675-12LG elbow with nut 12 mm 3/4-16 JIC 3/4-16 JIC 350 bar
CG-16 S675-16LG elbow with nut 16 mm 7/8-14 JIC 7/8-14 JIC 350 bar
CG-20 S675-20LG elbow with nut 20 mm 1.1/16-12 JIC 1.1/16-12 JIC 300 bar
CG-25 S675-25LG elbow with nut 25 mm 1.5/16-12 JIC 1.5/16-12 JIC 290 bar
CG-32 S675-30LG elbow with nut 32 mm 1.5/8-12 JIC 1.5/8-12 JIC 240 bar
CG-38 S675-38LG elbow with nut 38 mm 1.7/8-12 JIC 1.7/8-12 JIC 250 bar
CG-50 Elbow with nut 2.1/2 JIC 50 mm 2.1/2-12 JIC 2.1/2-12 JIC 140 bar
Brand Name
FOR

Corrosion resistance
1400 hours salt spray DIN EN ISO 9227

Material
Steel

Surface treatment
Electro-galvanized / White chromatized
