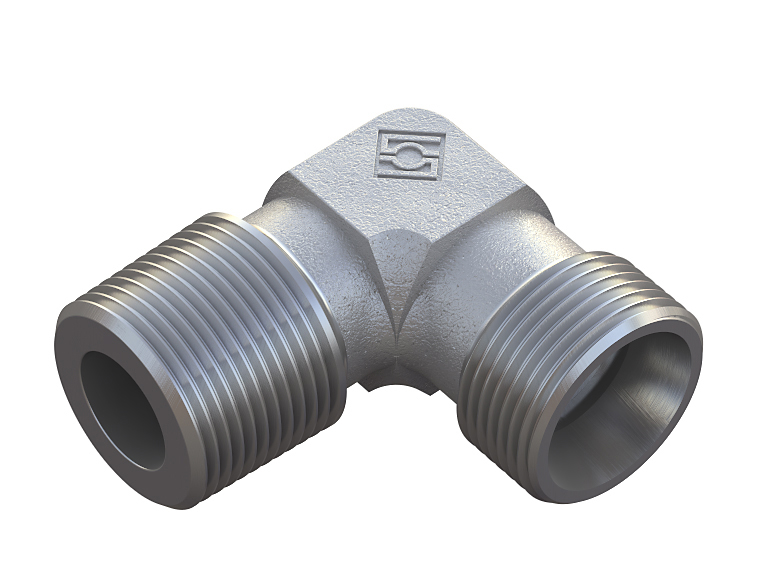

Elbow fitting 90° - S-series - MM male 24° x NPT male stud - B-SNPTX / XWE-SN

Elbow fitting 90° - S-series - MM male 24° x NPT male stud - B-SNPTX / XWE-SN

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Series Pressure max. Thread outer metric Thread outer
B06SNPTX Stud elbow 90° - ø8S x 1/4" NPT S 630 bar M14x1,5 1/4 NPT
B10SNPTX Stud elbow 90° - ø10S x 3/8" NPT S 630 bar M18x1,5 3/8 NPT
B16SNPTX Stud elbow 90° - ø16S x 1/2" NPT S 630 bar M24x1,5 1/2 NPT
FXWE12SN12 Stud elbow 90° - ø16S x 1/2" NPT S 630 bar 1/2 NPT
FXWE16SN12 Stud elbow 90° - ø16S x 1/2" NPT S 630 bar M24x1,5 1/2 NPT
Angle
90
Brand Name
Gates
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
Material
Steel
Pressure max.
630
Safety factor
4
Series
S
Surface treatment
Zinc-Nickel plated
Temperature max.
+120
Temperature min.
-40
