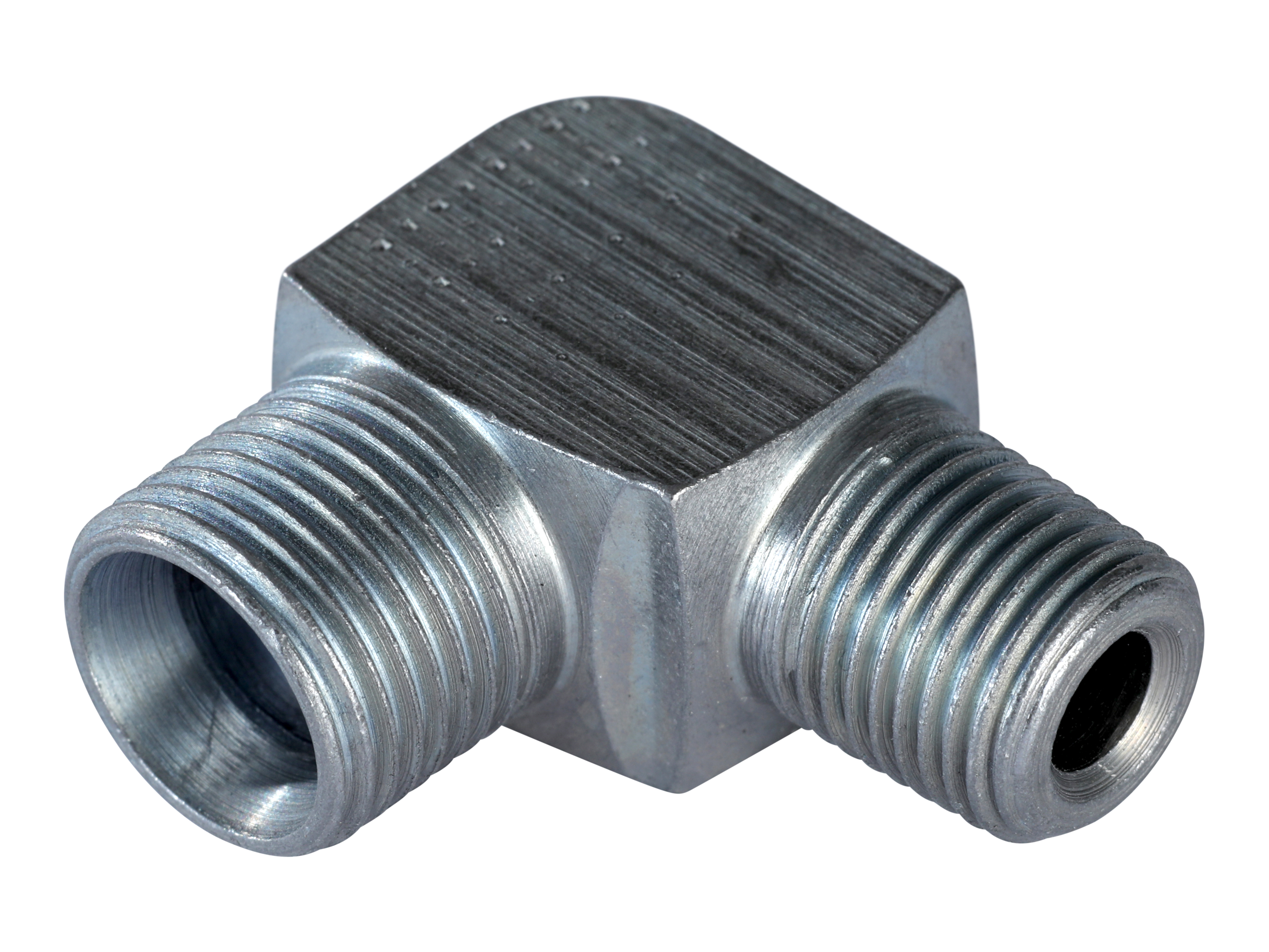

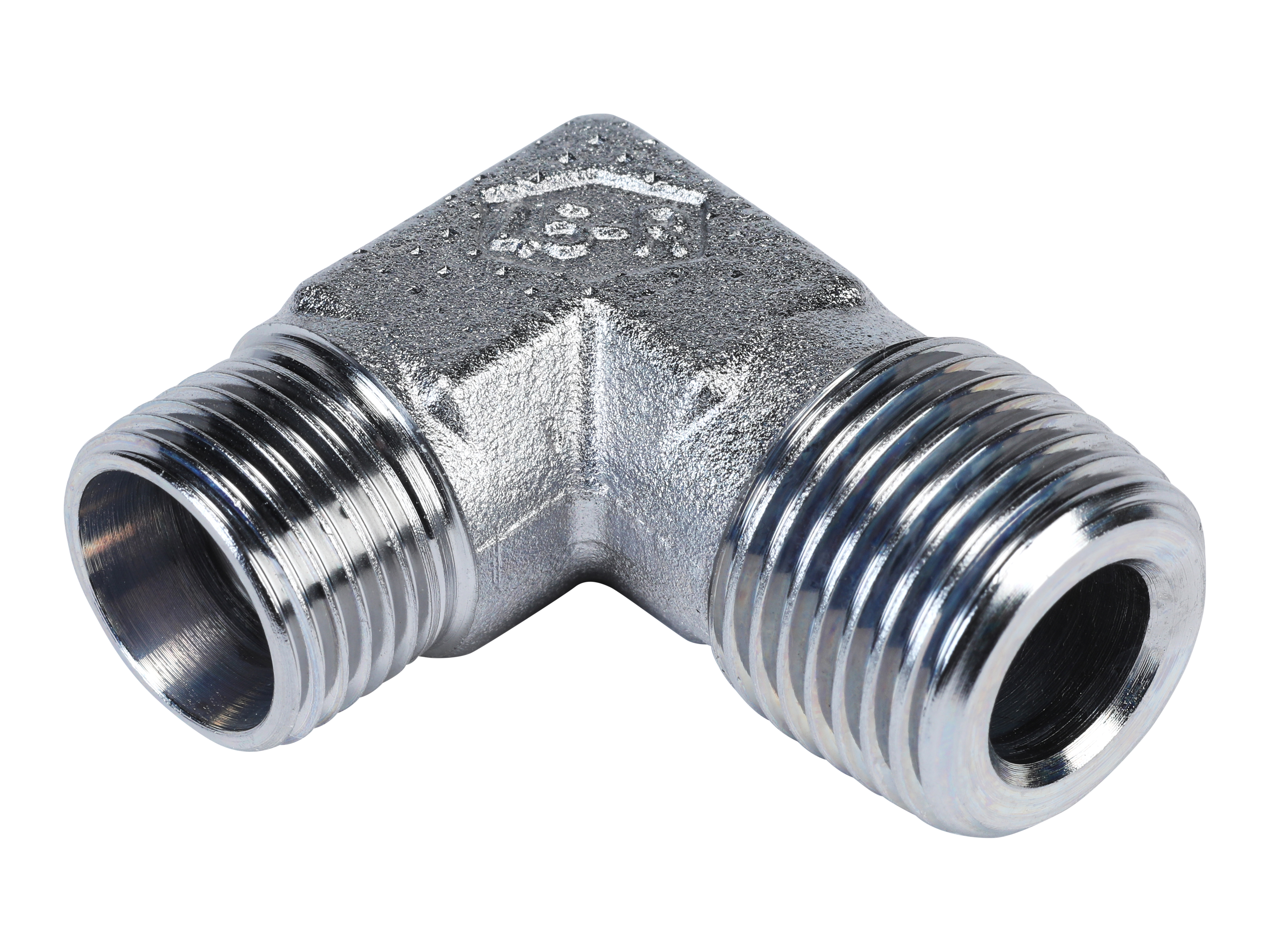

Elbow fitting 90° - L-series - MM male 24° x BSPT male

VÄLJ VARIANT

Artikelnummer	Beskrivning	Diameter pipe	Thread outer	Pressure max.	Thread outer metric
B12LR1/2X	Stud elbow 90° - ø12L x 1/2" BSPT	12 mm	R 1/2 BSPT	315 bar
B12LR1/4X	Stud elbow 90° - ø12L x 1/4" BSPT	12 mm	R 1/4 BSPT	315 bar	M18x1,5
FXWE06LR14K	Stud elbow 90° - ø6L x 1/4" BSPT	6 mm	R 1/4 BSPT	315 bar
FXWE06LR18K	Stud elbow 90° - ø6L x 1/8" BSP tapered	6 mm	R 1/8 BSPT	315 bar
FXWE08LR12K	Stud elbow 90° - ø8L x 1/2" BSP tapered	8 mm	R 1/2 BSPT	315 bar	M14x1,5
FXWE08LR14K	Stud elbow 90° - ø8L x 1/4" BSP tapered	8 mm	R 1/4 BSPT	315 bar
FXWE08LR18K	Stud elbow 90° - ø8L x 1/8" BSP tapered	8 mm	R 1/8 BSPT	315 bar	M14x1,5
FXWE08LR38K	Stud elbow 90° - ø8L x 3/8" BSP tapered	8 mm	R 3/8 BSPT	315 bar	M14x1,5
FXWE10LR12K	Stud elbow 90° - ø10L x 1/2" BSPT	10 mm		315 bar
FXWE10LR14K	Elbow ø10 1/4" BSPT - forged	10 mm	R 1/4 BSPT	315 bar
FXWE10LR38K	Stud elbow 90° - ø10L x 3/8" BSPT	10 mm	R 3/8 BSPT	315 bar	M16x1,5
FXWE12LR12K	Stud elbow 90° - ø12L x 1/2" BSPT - forged	12 mm	R 1/2 BSPT	315 bar	M18x1,5
FXWE12LR14K	Elbow ø12 - 1/4" BSPT - forged	12 mm	R 1/4 BSPT	315 bar
FXWE12LR38K	Elbow ø12 3/8" BSPT - forged	12 mm	R 3/8 BSPT	315 bar
FXWE15LR12K	Elbow ø15L - 1/2" BSPT - forged	15 mm	R 1/2 BSPT	315 bar
FXWE15LR38K	Elbow ø15L - 3/8" BSPT - forged	15 mm	R 3/8 BSPT	315 bar	M22x1,5
FXWE18LR12K	Stud elbow 90° - ø18L x 1/2" BSPT	18 mm	R 1/2 BSPT	315 bar
FXWE18LR34K	Stud elbow 90° - ø18L x 3/4" BSPT	18 mm		315 bar
FXWE18LR38K	Stud elbow 90° - ø18L x 3/8" BSPT	18 mm		315 bar
FXWE28LR1K	Stud elbow 90° - ø28L x 1 BSPT	28 mm	R 1 BSPT	160 bar

Angle

Material

Steel

Safety factor

Series

Temperature max.

+120

Temperature min.

-40
