Pipe clamp locking plates - single series - ACT

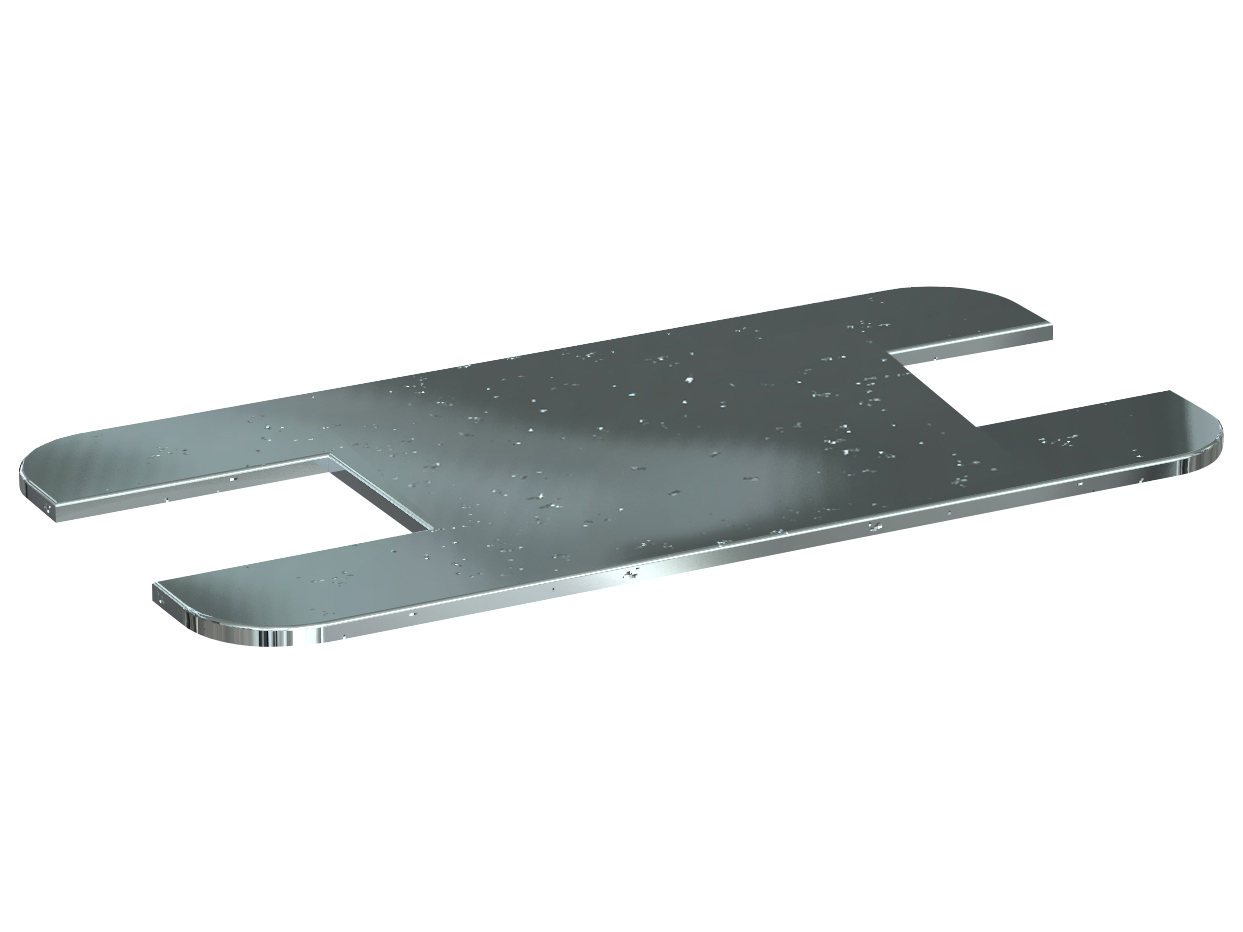

ACT safety locking plate. Locks the VA-mounting bolts when stacking pipe clamps.

Material: V4A (stainless steel).

ACT safety locking plate.

Locks mounting bolts when stacking pipe clamps.

ACT Mounting Hardware is made of Stainless Steel V4A (Material Code: W55) with enhanced
corrosion resistance by practically excluding metallic and non-metallic impurities during
production, processing and handling.

SELECT VARIANT
Partnumber Description DIN size Brand Name Material
1130032043 Safety locking plate - DIN 1 - ACT Stainless 1 Stauff Stainless steel
1130032045 Safety locking plate - DIN 2 - ACT Stainless 2 Stauff Stainless steel
1130032047 Safety locking plate - DIN 3 - ACT Stainless 3 Stauff Stainless steel
Brand Name
Stauff

Dimension B1
28

Dimension B2
11.2

Dimension S
2

Material
Stainless steel

Material quality
1.4571 / AISI316Ti

Standard DIN
DIN 3015 part 1

Surface treatment
Polished

Width
28

ACT safety locking plate. Locks the VA-mounting bolts when stacking pipe clamps.

Material: V4A (stainless steel).

ACT safety locking plate.

Locks mounting bolts when stacking pipe clamps.

ACT Mounting Hardware is made of Stainless Steel V4A (Material Code: W55) with enhanced
corrosion resistance by practically excluding metallic and non-metallic impurities during
production, processing and handling.
