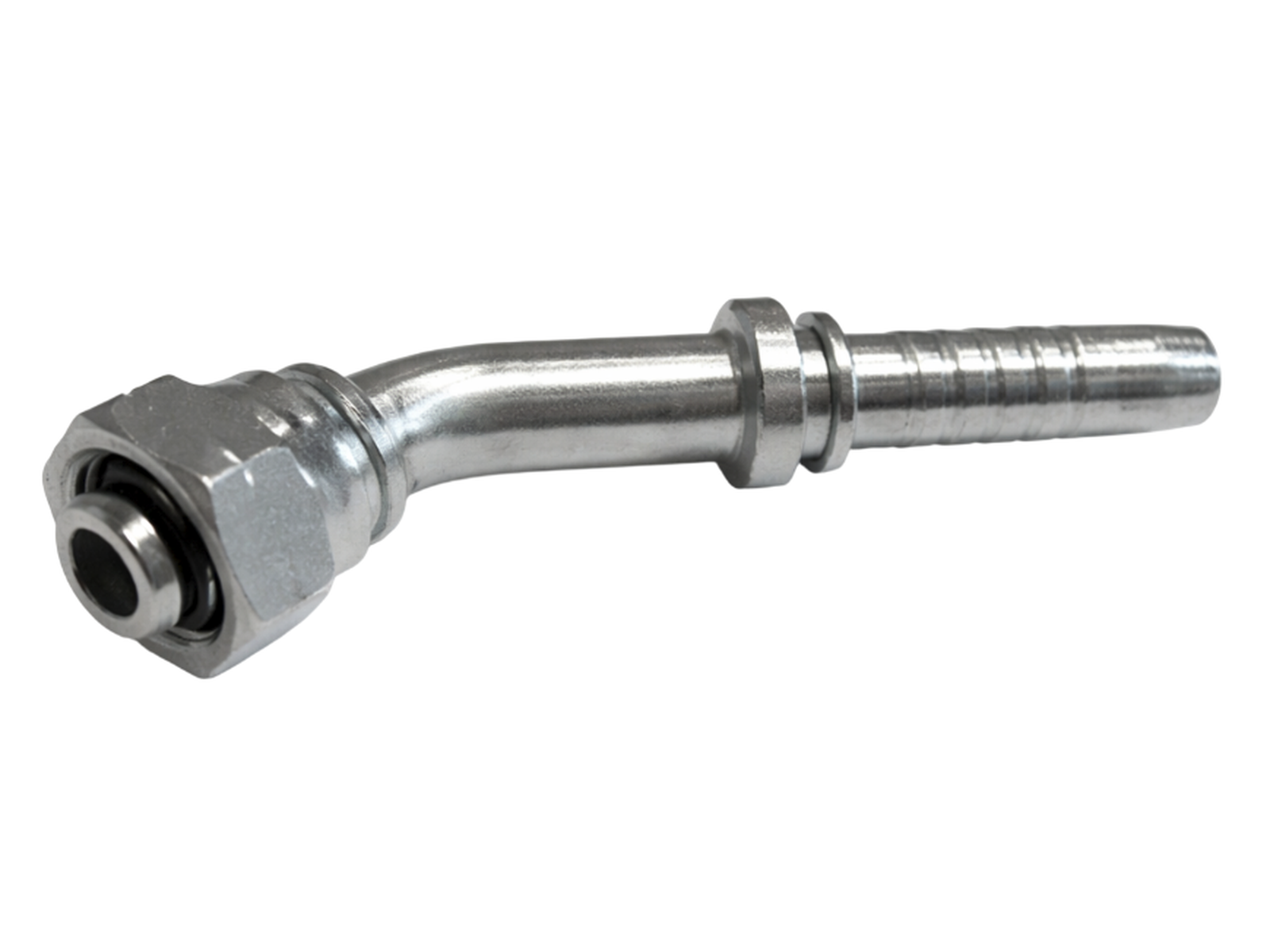

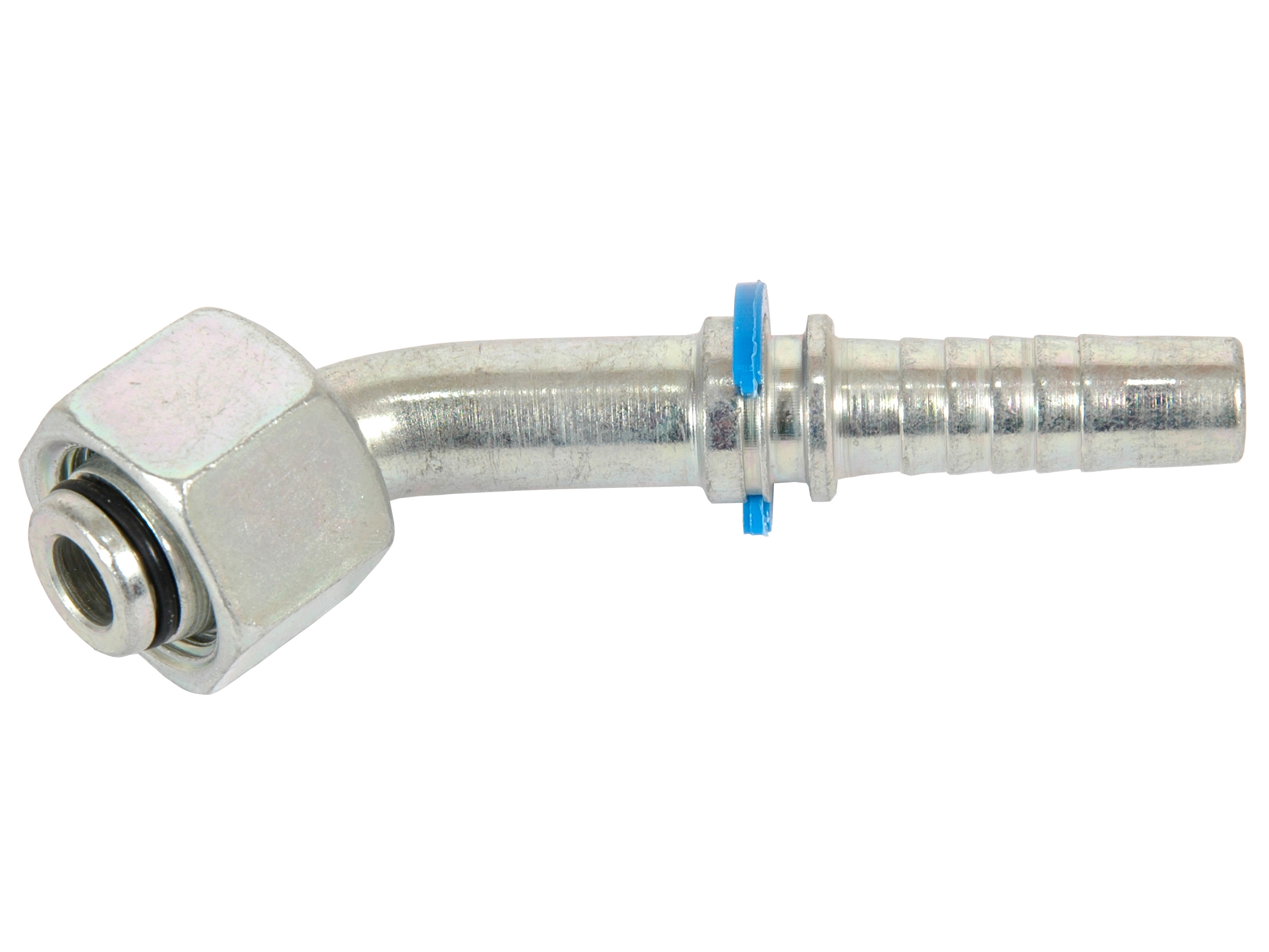

Metric union nut, 24° cone face, 45°, LIGHT, "RO45"

VÆLG VARIANT

Varenummer	Beskrivelse	Hose size	Angle	Hose coupling type	Material
P0306RO12A45	Insert 3/16" - M12x1.5 nut 06L 45°	3/16 "	45 °	For separate ferrule	Steel
P0308RO14A45	Insert 3/16" - M14x1.5 female 08L 45°	3/16 "	45 °	For separate ferrule	Steel
P0406RO12A45	Insert 1/4" - M12x1.5 nut 06L 45°	1/4 "	45 °	For separate ferrule	Steel
P0408RO14A45	Insert 1/4" - M14x1.5 nut 08L 45°	1/4 "	45 °	For separate ferrule	Steel
P0410RO16A45	Insert 1/4" - M16x1.5 nut 10L 45°	1/4 "	45 °	For separate ferrule	Steel
P0412RO18A45	Insert 1/4" - M18x1.5 nut 12L 45°	1/4 "	45 °	For separate ferrule	Steel
P0510RO16A45	Insert 5/16" - M16x1.5 nut 10L 45°	5/16 "	45 °	For separate ferrule	Steel
P0512RO18A45	Insert 5/16" - M18x1.5 nut 12L 45°	5/16 "	45 °	For separate ferrule	Steel
P0610RO16A45	Insert 3/8" - M16x1.5 nut 10L 45°	3/8 "	45 °	For separate ferrule	Steel
P0612RO18A45	Insert 3/8" - M18x1.5 nut 12L 45°	3/8 "	45 °	For separate ferrule	Steel
P0615RO22A45	Insert 3/8" - M22x1.5 nut 15L 45°	3/8 "	45 °	For separate ferrule	Steel
P0812RO18A45	Insert 1/2" - M18x1.5 nut 12L 45°	1/2 "	45 °	For separate ferrule	Steel
P0815RO22A45	Insert 1/2" - M22x1.5 nut 15L - 45°	1/2 "	45 °	For separate ferrule	Steel
P0818RO26A45	Insert 1/2" - M26x1.5 nut 18L 45°	1/2 "	45 °	For separate ferrule	Steel
P1018RO26A45	Insert 5/8" - M26x1.5 nut 18L 45°	5/8 "	45 °	For separate ferrule	Steel
P1218RO26A45	Insert 3/4" - M26x1.5 nut 18L 45°	3/4 "	45 °	For separate ferrule	Steel
P1222RO30B45	Insert 3/4" - M30x2 nut 22L 45°	3/4 "	45 °	For separate ferrule	Steel
P1228RO36B45	Insert 3/4" - M36x2 nut 28L 45°	3/4 "	45 °	For separate ferrule	Steel
P1628RO36B45	Insert 1" - M36x2 nut 28L 45°	1 "	45 °	For separate ferrule	Steel
P2035RO45B45	Insert 1.1/4" - M45x2 nut 35L 45°	1.1/4 "	45 °	For separate ferrule	Steel
P2442RO52B45	Insert 1.1/2" - M52x2 nut 42L 45°	1.1/2 "	45 °	For separate ferrule	Steel

Specifikationer
Dimensioner og forsendelse (vælg variant)

Angle

Brand Name

I.M.M Hydraulics

Hose coupling type

For separate ferrule

Material

Steel

Sealing material

NBR

Series

Surface treatment

Electro-galvanized / White chromatized

Temperature max.

+100

Temperature min.

-30

Produkt information
Målskitse (vælg variant)
