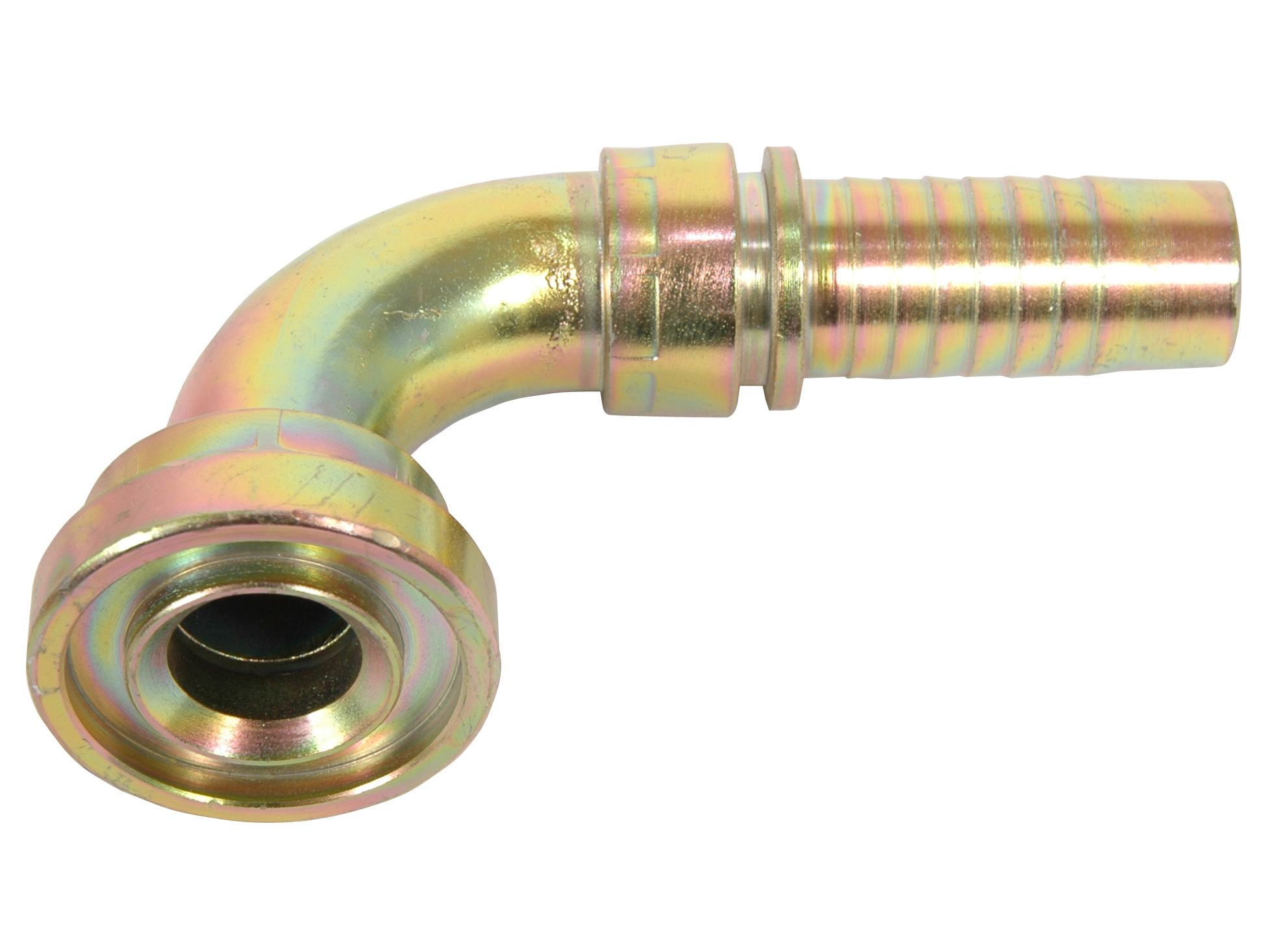

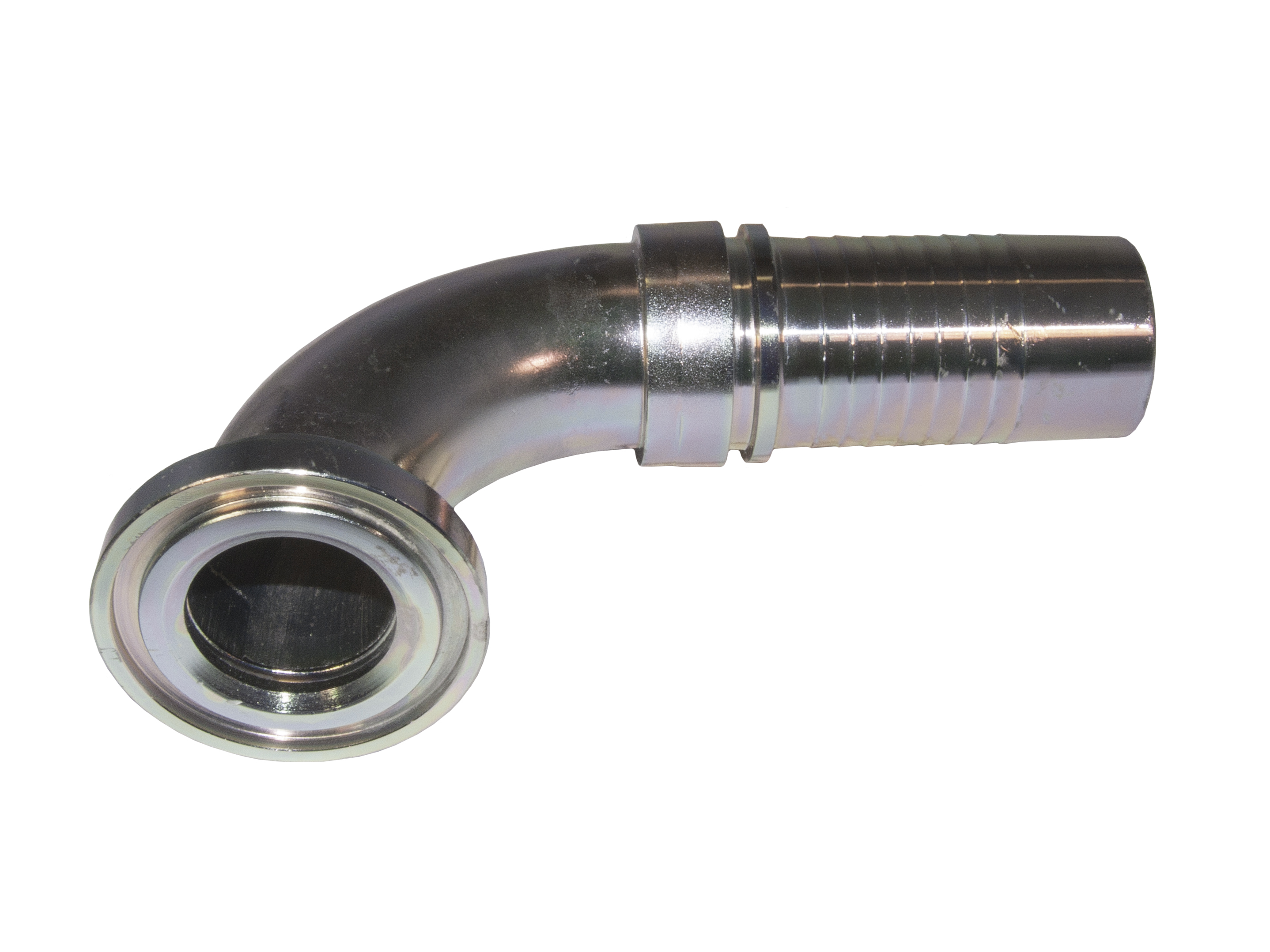

Flange insert SAE 3000 PSI - 90° - "PA90"

Flange insert SAE 3000 PSI - 90° - "PA90"

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Hose size Flange Diameter flange O-ring
P0808PA90 Insert 1/2" - 1/2" SAE 3000 psi 90° 1/2 " 1/2 " 30.2 mm 18,64X3,53 mm
P0812PA90 Insert 1/2" - 3/4" SAE 3000 psi 90° 1/2 " 3/4 " 38.1 mm 24,99X3,53 mm
P1008PA90 Insert 5/8" - 1/2" SAE 3000 psi 90° 5/8 " 1/2 " 30.2 mm 18,64X3,53 mm
P1010PAK90 Insert 5/8" - ø34 Komatsu 90° 5/8 " n.a. " 34 mm 21,82x3,53 mm
P1012PA90 Insert 5/8" - 3/4" SAE 3000 psi 90° 5/8 " 3/4 " 38.1 mm 24,99X3,53 mm
P1212PA90 Insert 3/4" - 3/4" SAE 3000 psi 90° 3/4 " 3/4 " 38.1 mm 24,99X3,53 mm
P1216PA90 Insert 3/4" - 1" SAE 3000 psi 90° 3/4 " 1 " 44.5 mm 32,93X3,53 mm
P1612PA90 Insert 1" - 3/4" SAE 3000 psi 90° 1 " 3/4 " 38.1 mm 24,99X3,53 mm
P1616PA90 Insert 1" - 1" SAE 3000 psi 90° 1 " 1 " 44.5 mm 32,93X3,53 mm
P1620PA90 Insert 1" - 1.1/4" SAE 3000 psi 90° 1 " 1.1/4 " 50.8 mm 37,69X3,53 mm
P1624PA90 Insert 1" - 1.1/2" SAE 3000 psi 1 " 1.1/2 " 60.3 mm 47,22X3,53 mm
P2020PA90 Insert 1.1/4" - 1.1/4" SAE 3000 psi 90° 1.1/4 " 1.1/4 " 50.8 mm 37,69X3,53 mm
P2024PA90 Insert 1.1/4" - 1.1/2" SAE 3000 psi 90° 1.1/4 " 1.1/2 " 60.3 mm 47,22X3,53 mm
P2420PA90 Insert 1.1/2" - 1.1/4" SAE 3000 psi 90° 1.1/2 " 1.1/4 " 50.8 mm 37,69X3,53 mm
P2424PA90 Insert 1.1/2" - 1.1/2" SAE 3000 psi 90° 1.1/2 " 1.1/2 " 60.3 mm 47,22X3,53 mm
P2432PA90 Insert 1.1/2" - 2" SAE 3000 psi 90° 1.1/2 " 2 " 71.4 mm 56,75X3,53 mm
P3224PA90 Insert 2" - 1.1/2" SAE 3000 psi 90° 2 " 1.1/2 " 60.3 mm 47,22X3,53 mm
P3232PA90 Insert 2" - 2" SAE 3000 psi 90° 2 " 2 " 71.4 mm 56,75X3,53 mm
P3240PA90 Insert 2" - 2.1/2" SAE 3000 psi 90° 2 " 2.1/2 " 84.1 mm 69,44X3,53 mm
Angle
90
Flange SAE/DIN
3000 PSI
Hose coupling type
For separate ferrule
Shore
90
