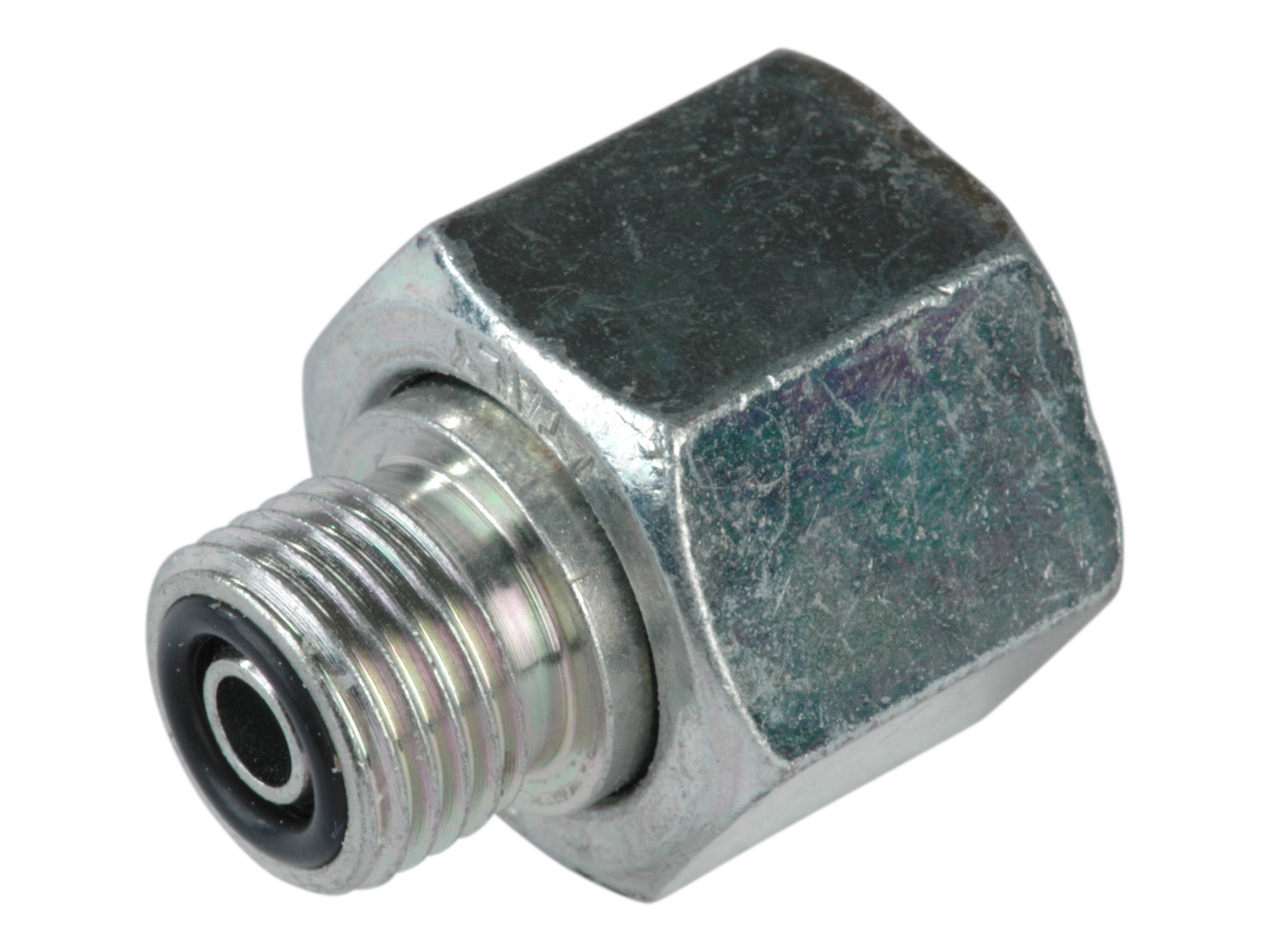

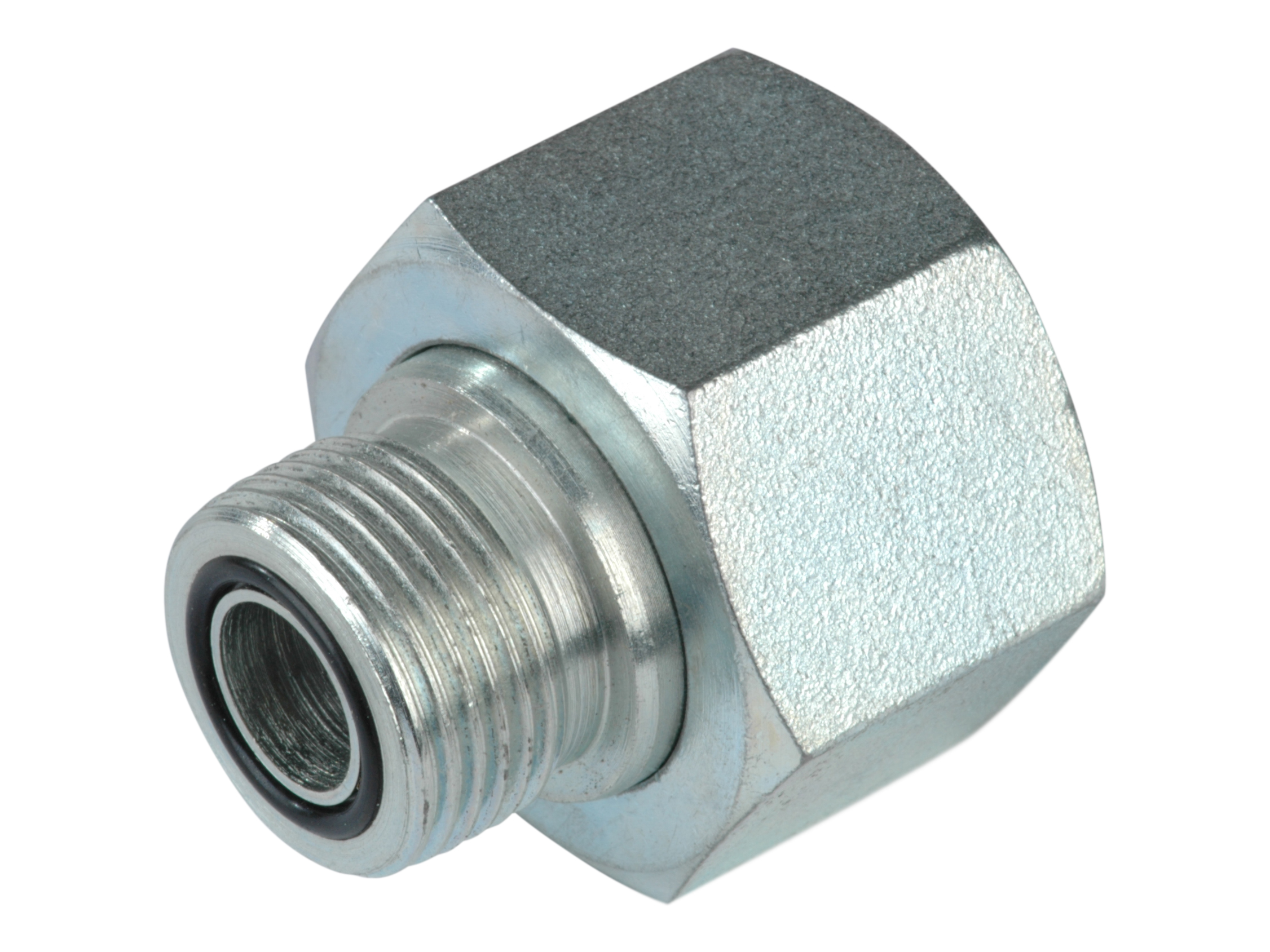

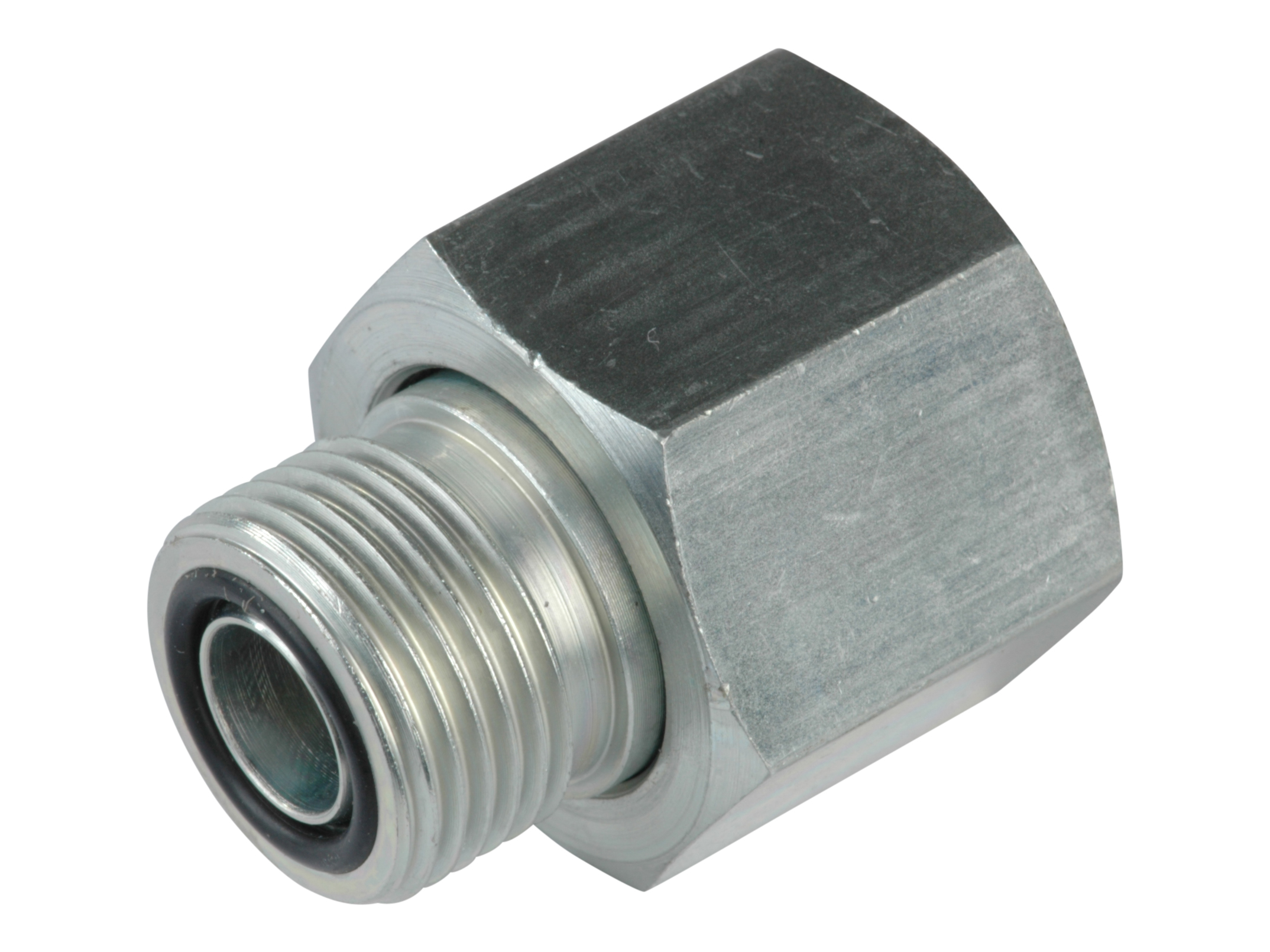

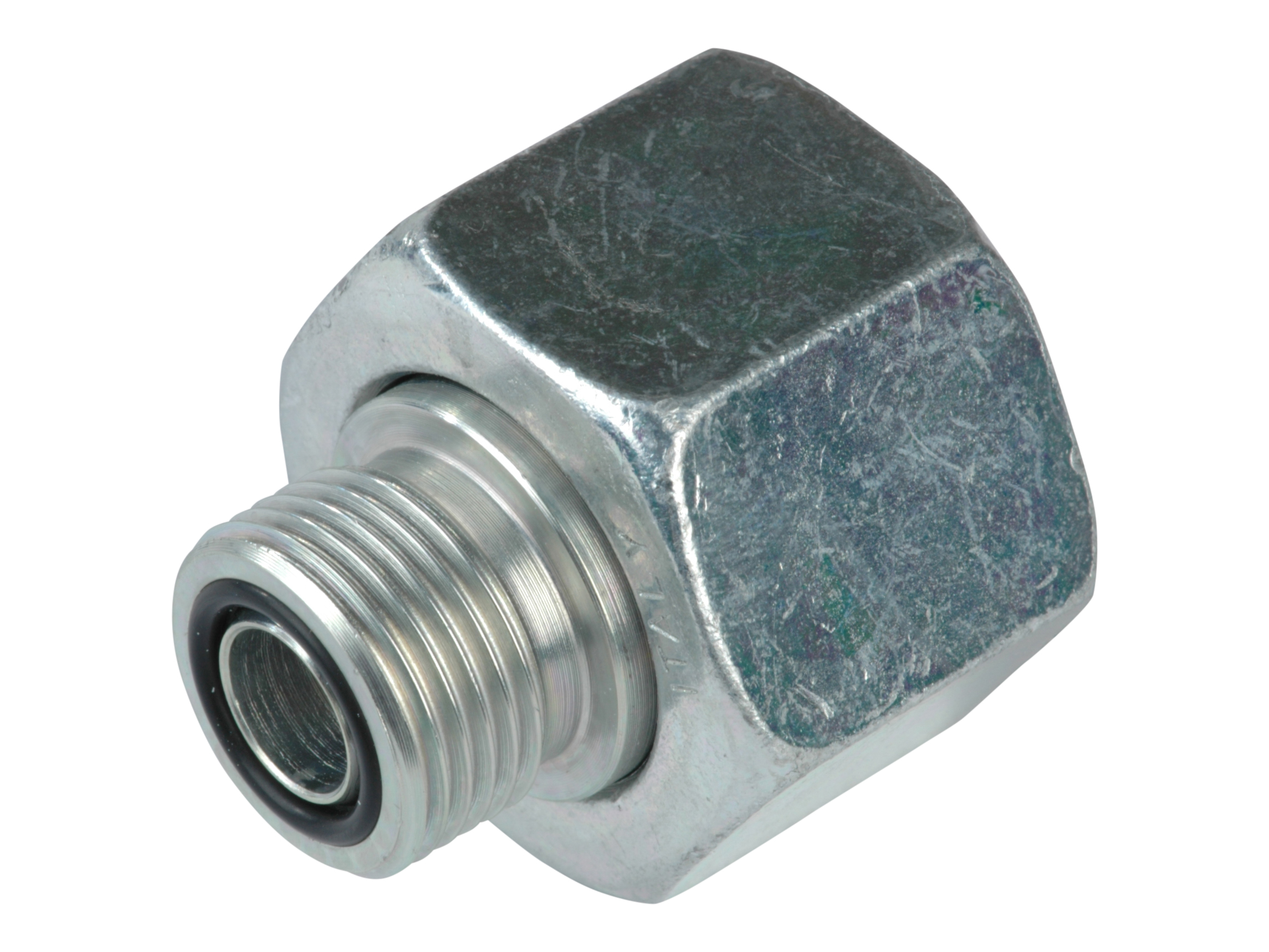

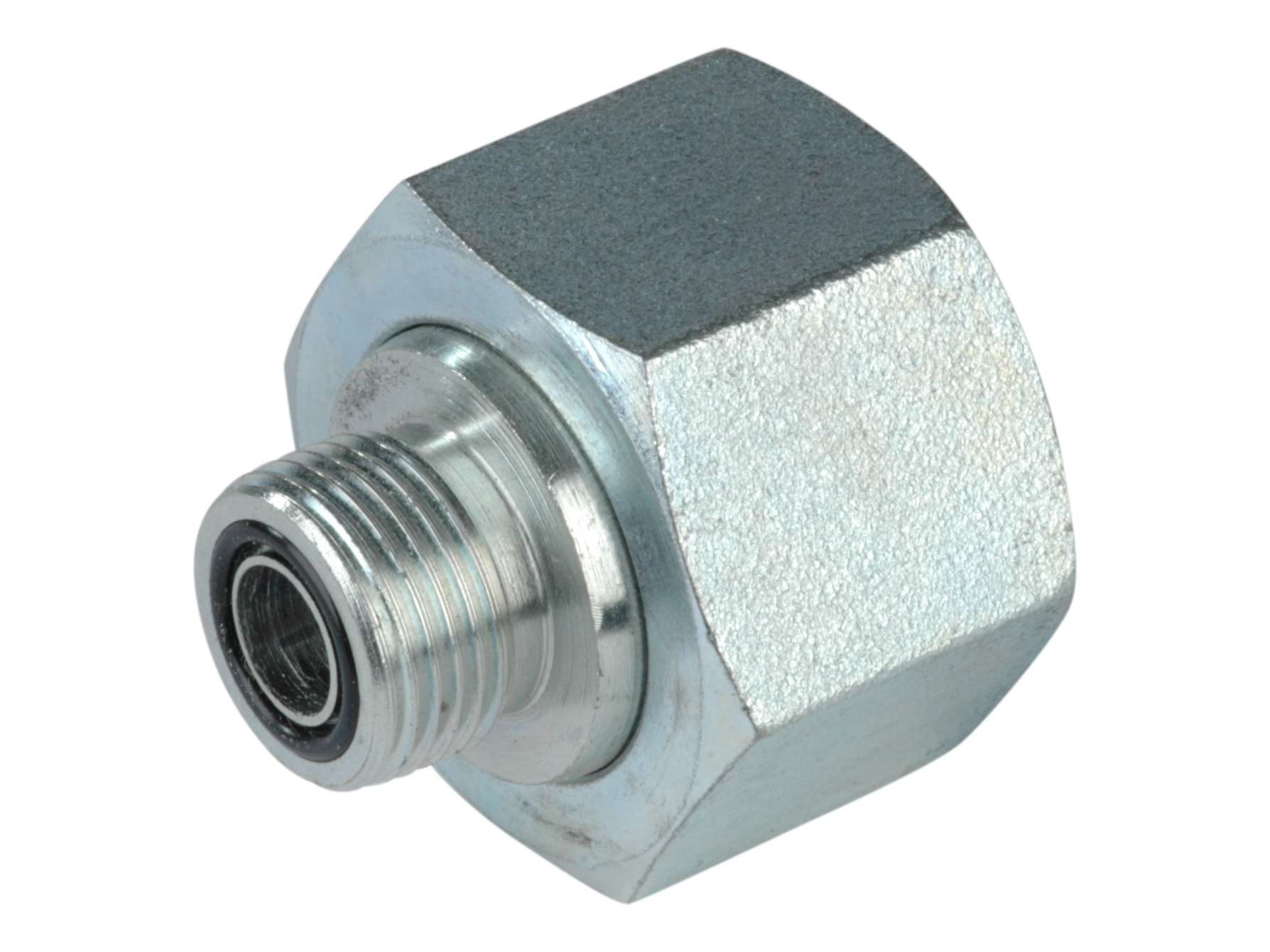

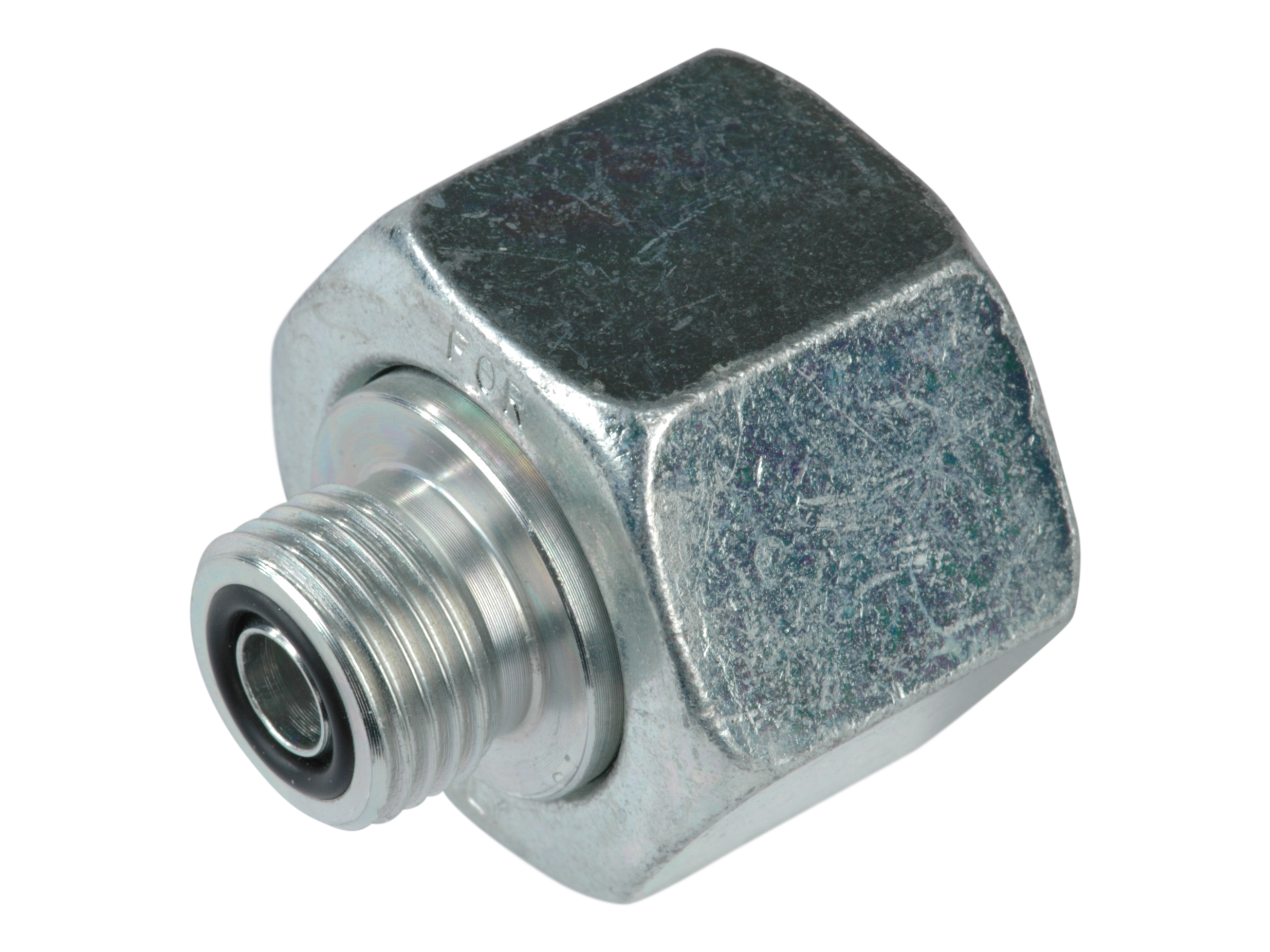

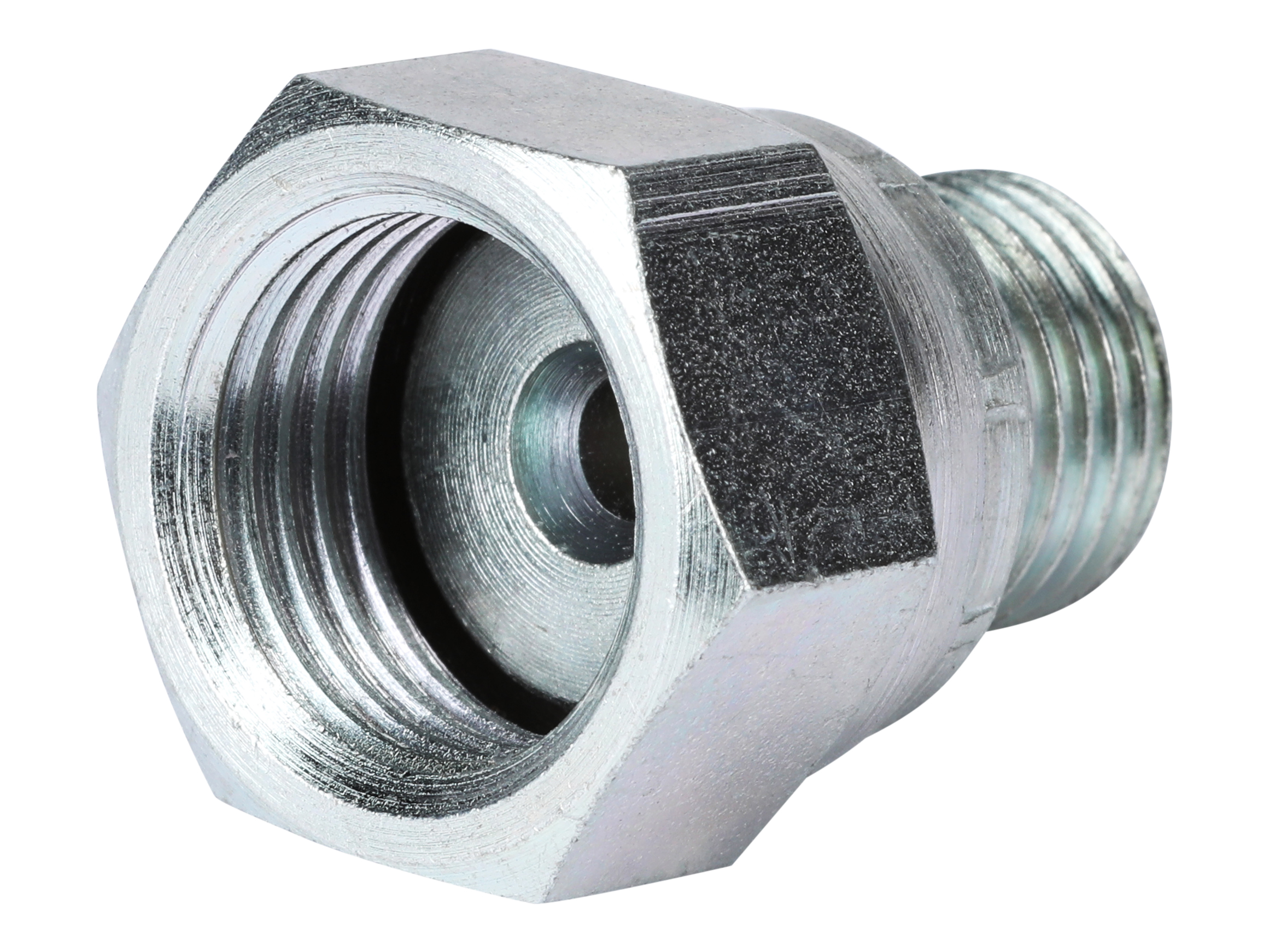

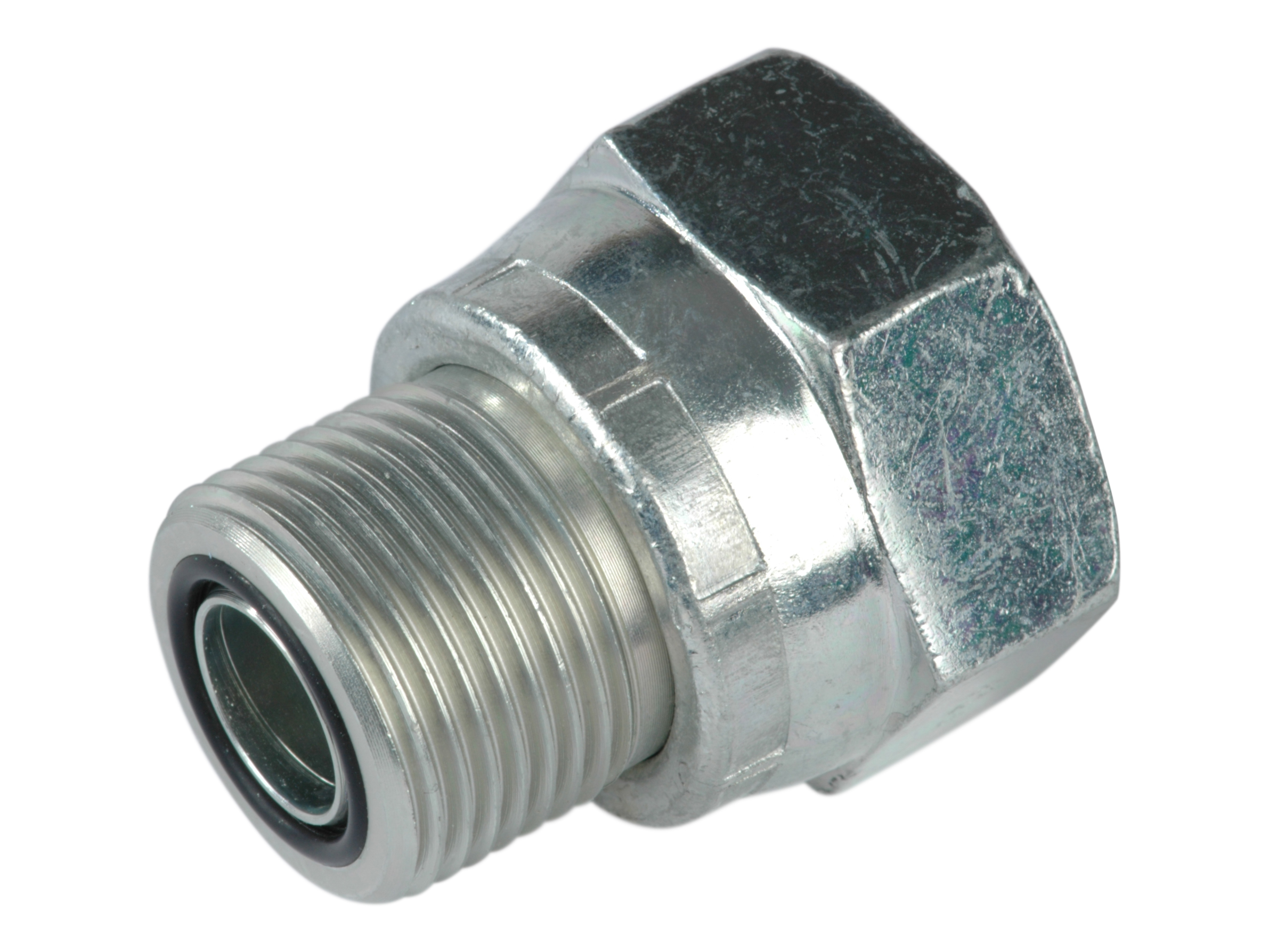

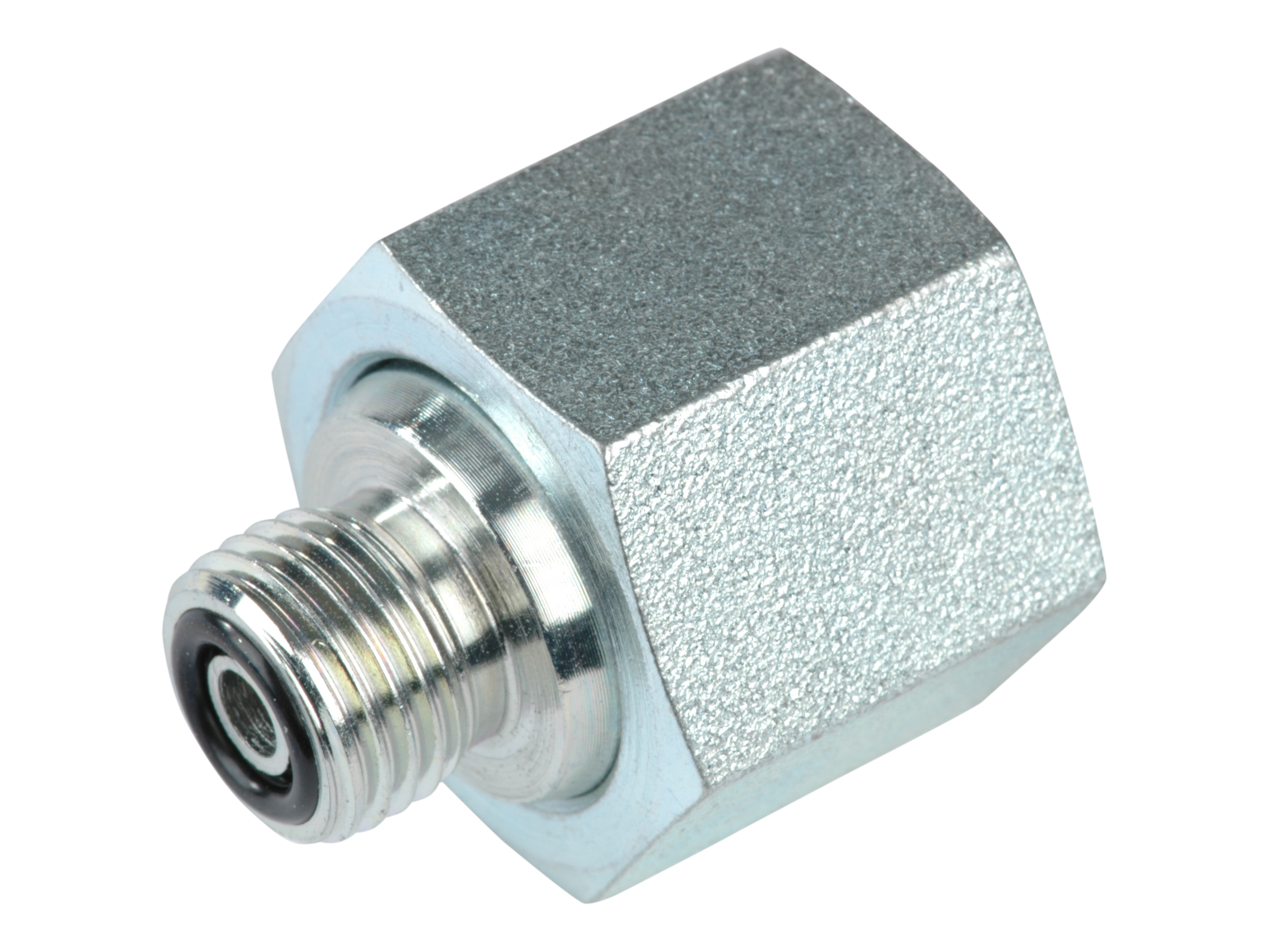

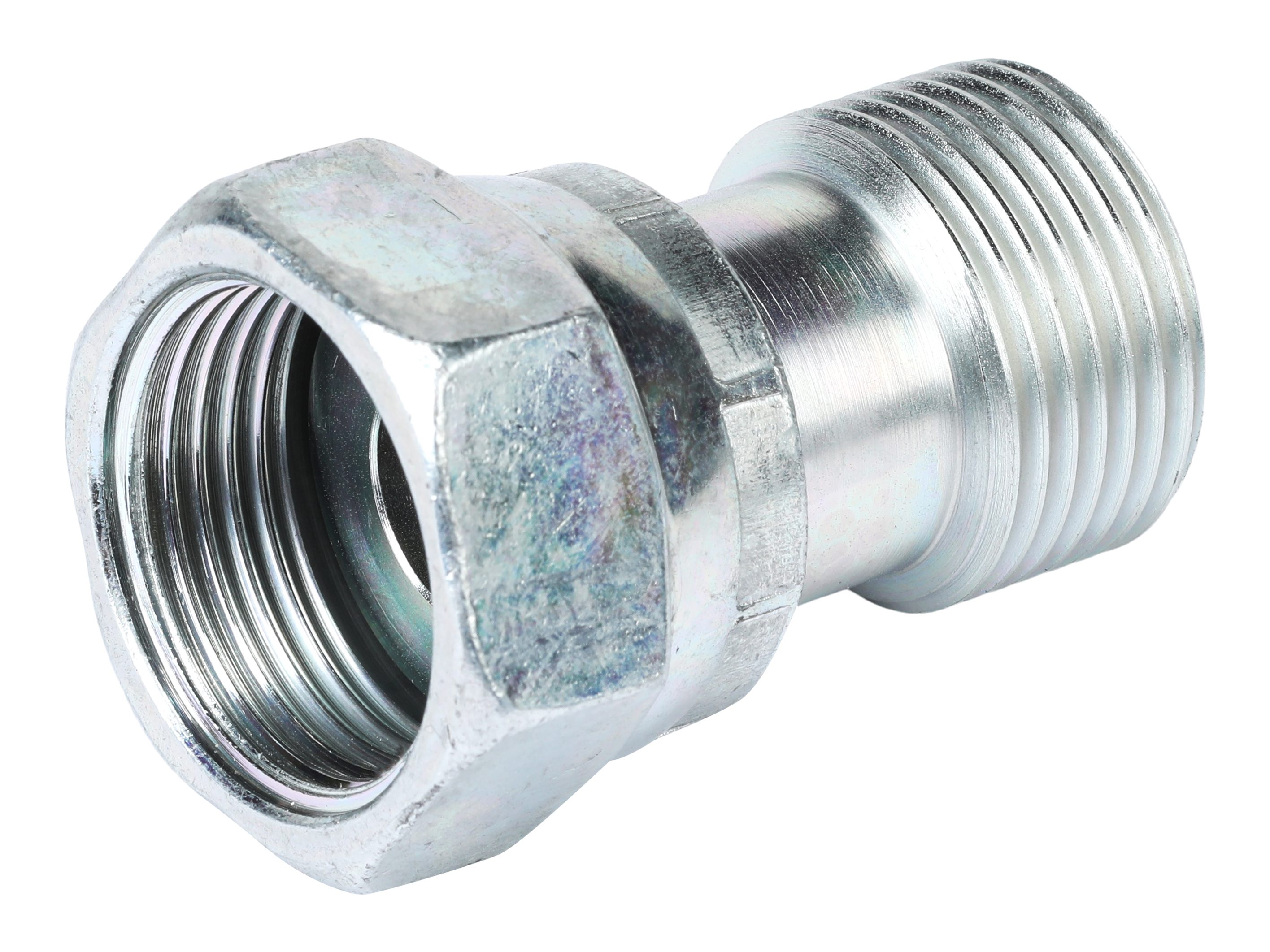

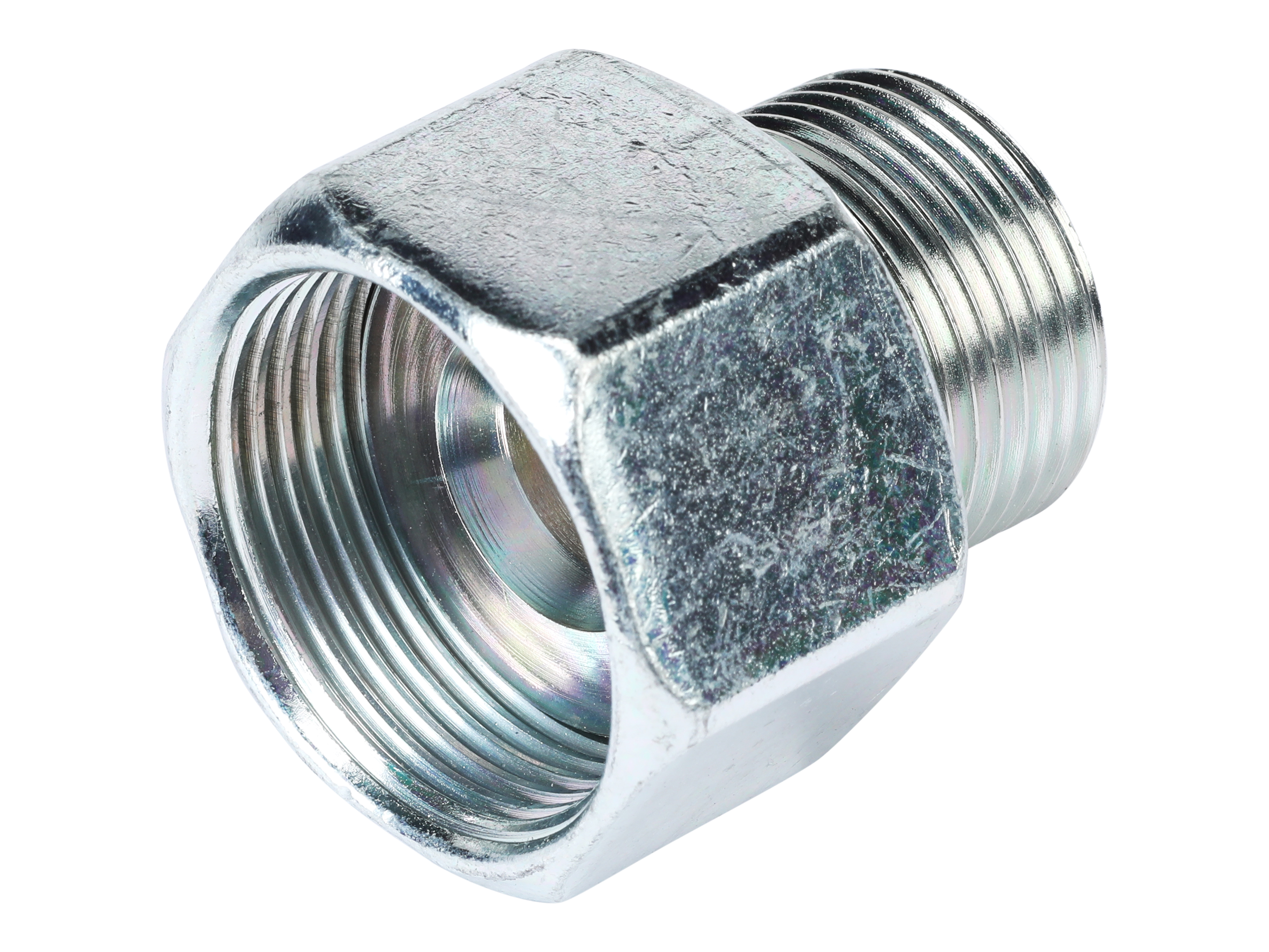

Adapter ORFS male x ORFS union nut - 110FS

SELECT VARIANT
Partnumber Description Thread outer Thread inner Pressure max. Brand Name
110FS0406 Bushing 9/16-18x11/16-16 male x female ORFS 11/16-16 ORFS 9/16-18 ORFS 630 bar FOR
110FS0408 Bushing 9/16-18x13/16-16ORFS male x female 9/16-18 ORFS 13/16-16 ORFS 630 bar FOR
110FS0410 Bushing 9/16-18x 1-14 ORFS male x female 9/16-20 ORFS 1-14 ORFS 120 bar FOR
110FS0608 Bushing 11/16-16x13/16-16 male x female ORFS 11/16-16 ORFS 13/16-16 ORFS 630 bar FOR
110FS0612 Bushing11/16-16x1.3/16-12 male x female ORFS 11/16-16 ORFS 1.3/16-12 ORFS 420 bar FOR
110FS0810 Bushing13/16-16x 1-14 ORFS male x female 13/16-16 ORFS 1-14 ORFS 420 bar FOR
110FS0812 Bushing13/16-16x1.3/16-12 male x female ORFS 13/16-16 ORFS 1.3/16-12 ORFS 420 bar FOR
110FS0816 Bushing13/16-16x1.7/16-12 male x female ORFS 13/16-16 ORFS 1.7/16-12 ORFS 420 bar FOR
110FS1012 Bushing 1-14 x1.3/16-12 male x female ORFS 1-14 ORFS 1.3/16-12 ORFS 420 bar FOR
110FS1016 Bushing 1-14 x1.7/16-12 male x female ORFS 1-14 ORFS 1.7/16-12 ORFS 420 bar FOR
110FS1212 Bushing 1.3/16-12x1.3/16-12 male x female ORFS 1.3/16-12 ORFS 1.3/16-12 ORFS 420 bar FOR
110FS1216 Bushing 1.3/16-12x1.7/16-12 male x female ORFS 1.3/16-12 ORFS 1.7/16-12 ORFS 420 bar FOR
110FS1220 Bushing 1.3/16-12 x 1.11/16-12 male x female ORFS 1.3/16-12 ORFS 1.11/16-12 ORFS 350 bar FOR
110FS1620 Bushing 1.7/16-12x1.11/16-12 male x female ORFS 1.7/16-12 ORFS 1.11/16-12 ORFS 350 bar FOR
Angle
0

Brand Name
FOR

Corrosion resistance
1400 hours salt spray DIN EN ISO 9227

Material
Steel

Sealing material
NBR

Surface treatment
Electro-galvanized / White chromatized
