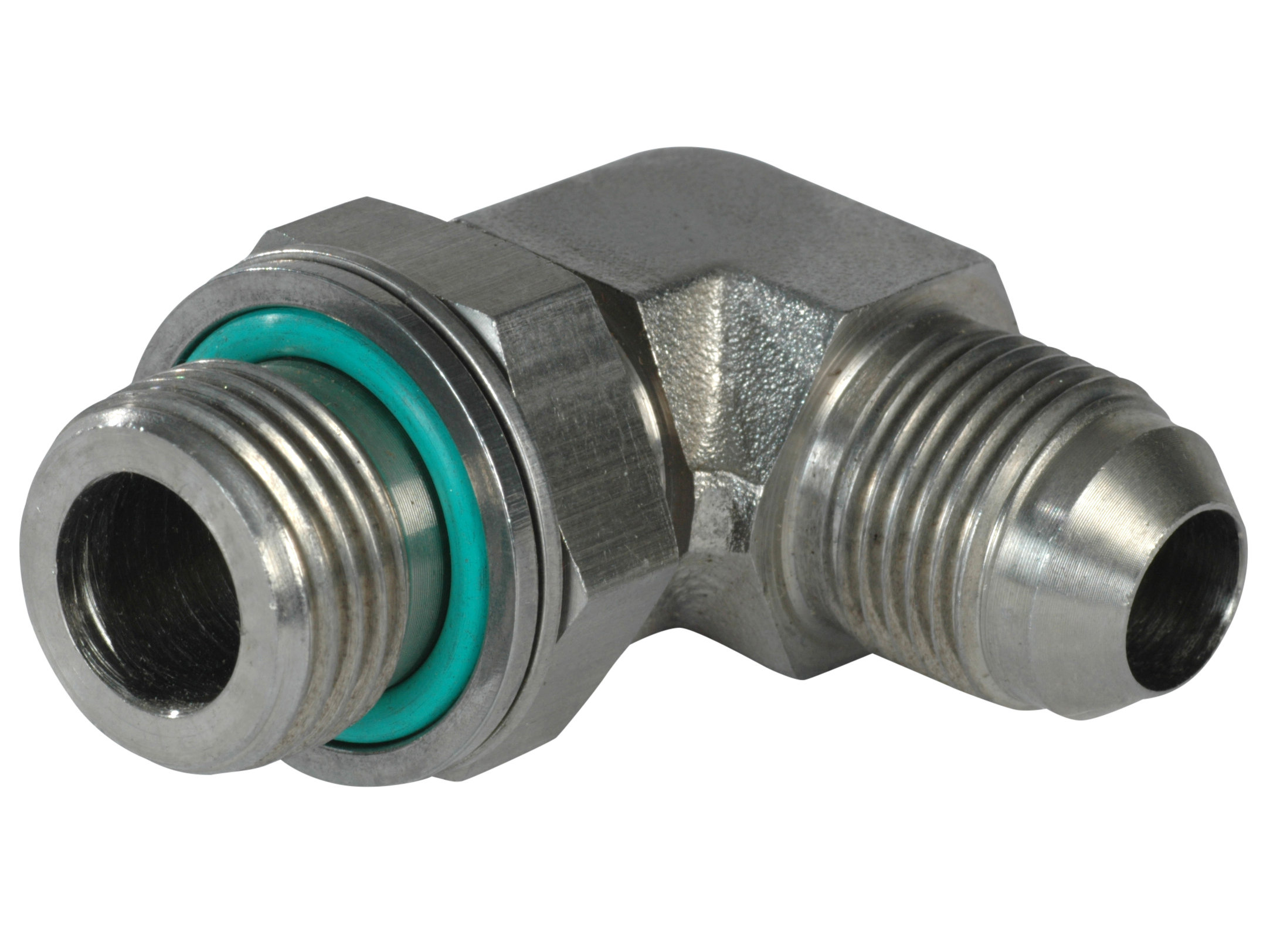

Elbow adapter 90° JIC male x BSP male adjustable stainless - CO-71 / JWEE-SY

Elbow adapter 90° JIC male x BSP male adjustable stainless - CO-71 / JWEE-SY

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Pressure max. Thread outer Thread outer
CO-06-1/4/71 Elbow BSP AISI316 6 mm 830 bar 7/16-20 JIC G 1/4 BSP
CO-08-1/4/71 Elbow BSP AISI316 8 mm 1/2-20 JIC G 1/4 BSP
CO-10-1/4/71 Elbow BSP AISI316 10 mm 9/16-18 JIC G 1/4 BSP
CO-10-3/8/71 Adapter 90°, Utv-JIC, Utv-G, Ställbar, Syrafast 10 mm 9/16-18 JIC G 3/8 BSP
CO-12-1/2/71 Elbow BSP AISI316 12 mm 700 bar 3/4-16 JIC G 1/2 BSP
CO-16-1/2/71 Elbow BSP AISI316 16 mm 500 bar 7/8-14 JIC G 1/2 BSP
CO-20-3/4/71 Elbow BSP AISI316 20 mm 600 bar 1.1/16-12 JIC G 3/4 BSP
CO-25-1/71 Elbow BSP AISI316 25 mm 420 bar 1.5/16-12 JIC G 1 BSP
