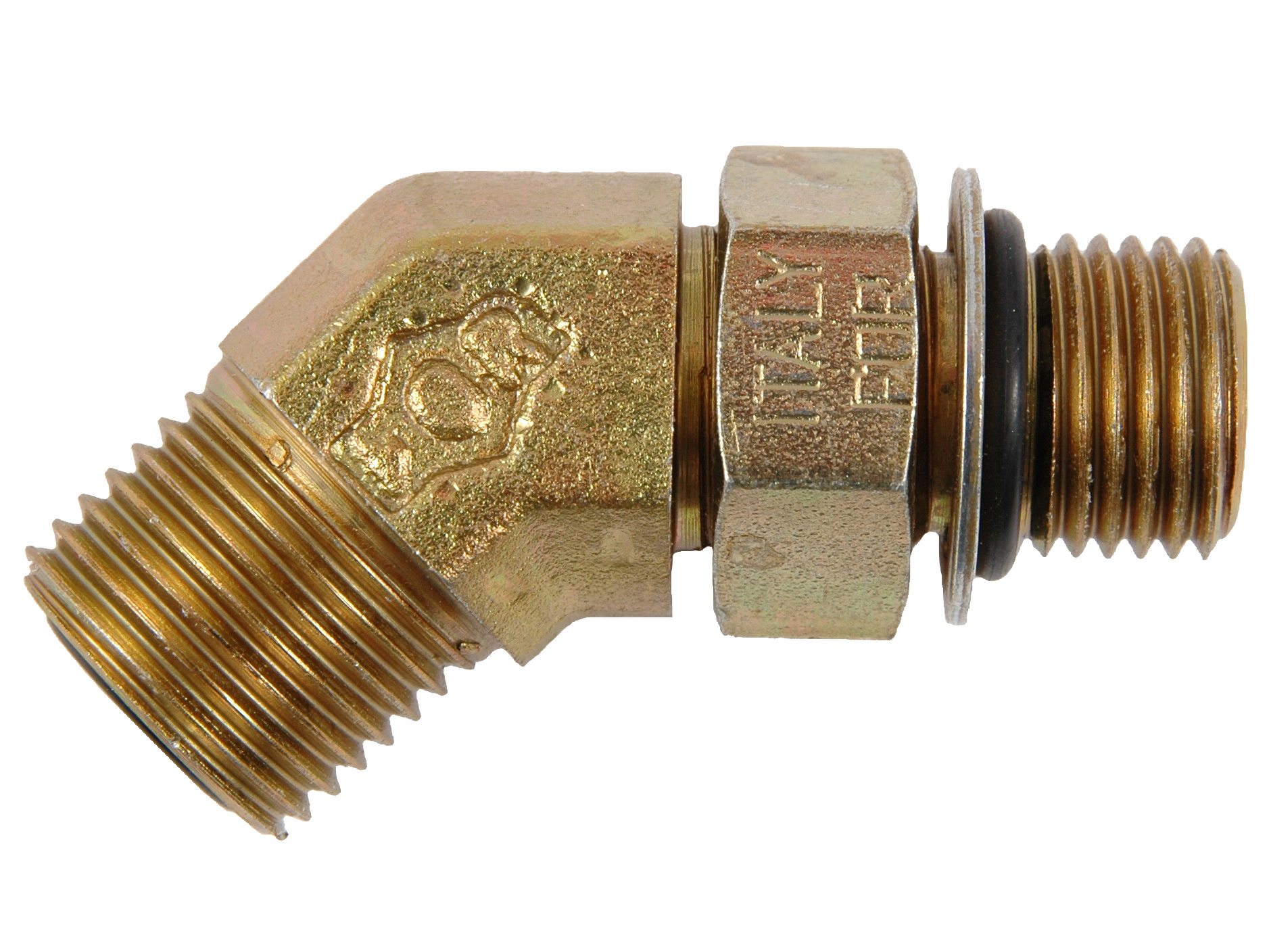

Elbow adapter 45° ORFS male x SAE male adjustable - 122FR / OFVEEU

Elbow adapter 45° ORFS male x SAE male adjustable - 122FR / OFVEEU

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Thread outer Pressure max. Thread outer Brand Name
122FR0404 Elbow 9/16 ORFS x 7/16SAE Adjustable, 45 ° 9/16-18 ORFS 420 bar 7/16-20 UNF FOR
122FR0606 Elbow 11/16 ORFS x 9/16SAE Adjustable, 45 ° 11/16-16 ORFS 420 bar 9/16-18 UNF FOR
122FR0808 Elbow 13/16 ORFS x 3/4 SAE Adjustable, 45 ° 13/16-16 ORFS 420 bar 3/4-16 UNF FOR
122FR1010 Elbow 1 ORFS x 7/8 SA Adjustable, 45 ° 1-14 ORFS 420 bar 7/8-14 UNF FOR
122FR1212 Elbow 1.3/16 ORFS x 1.1/16SAE Adjustable, 45 ° 1.3/16-12 ORFS 420 bar 1.1/16-12 UNF FOR
122FR1616 Elbow 1.7/16 ORFS x 1.5/16SAE Adjustable, 45 ° 1.7/16-12 ORFS 350 bar 1.5/16-12 UNF FOR
122FR2020 Elbow 1.11/16ORFS x 1.5/8 SAE Adjustable, 45 ° 1.7/8-12 ORFS 280 bar 1.5/8-12 UNF FOR
122FR2424 Elbow 2 ORFS x 1.7/8 SA Adjustable, 45 ° 2-12 ORFS 250 bar 1.7/8-12 UNF FOR
Angle
45
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Material
Steel
Sealing material
NBR
Surface treatment
Electro-galvanized / White chromatized
Temperature max.
+100
Temperature min.
-35
