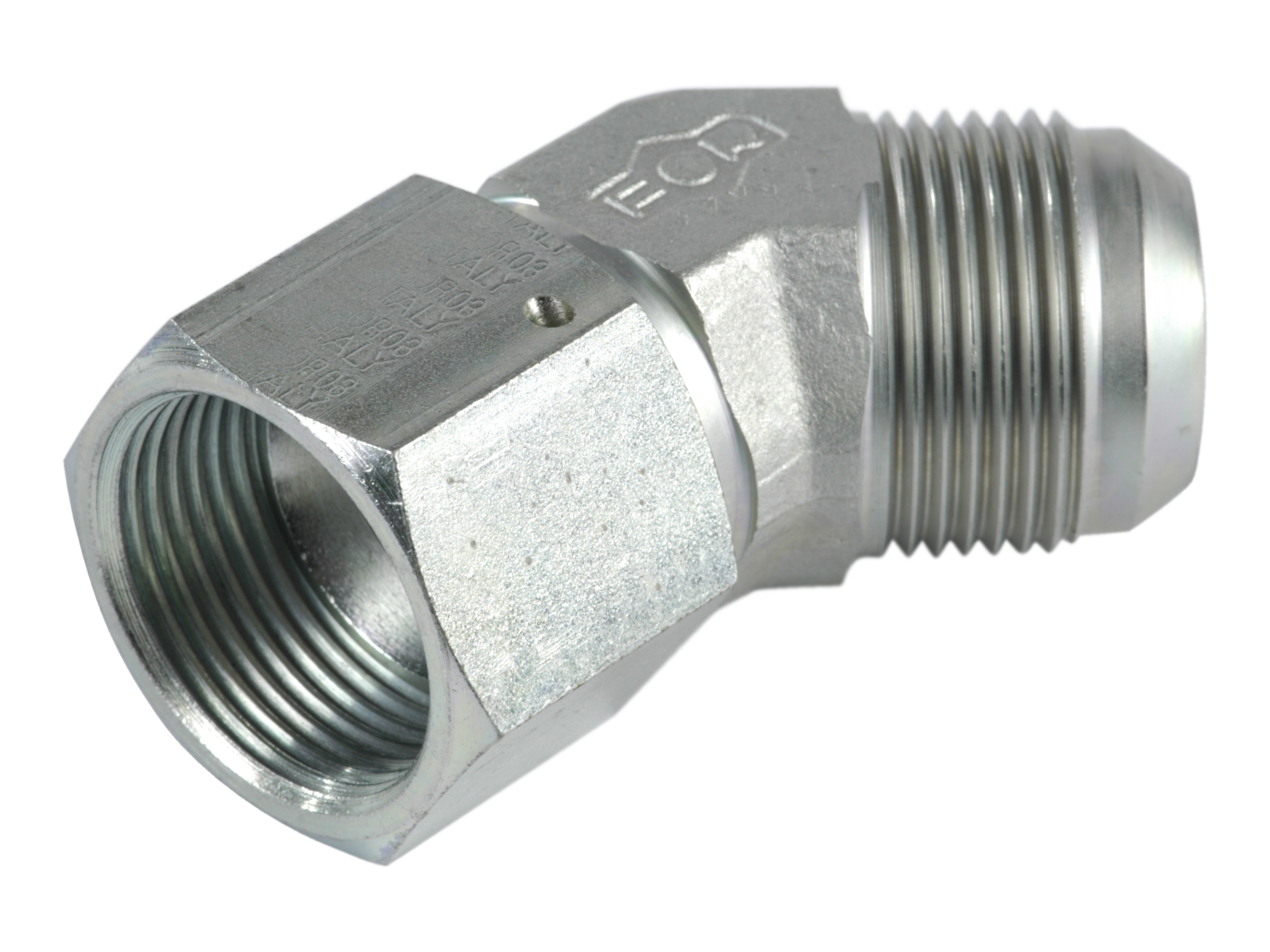

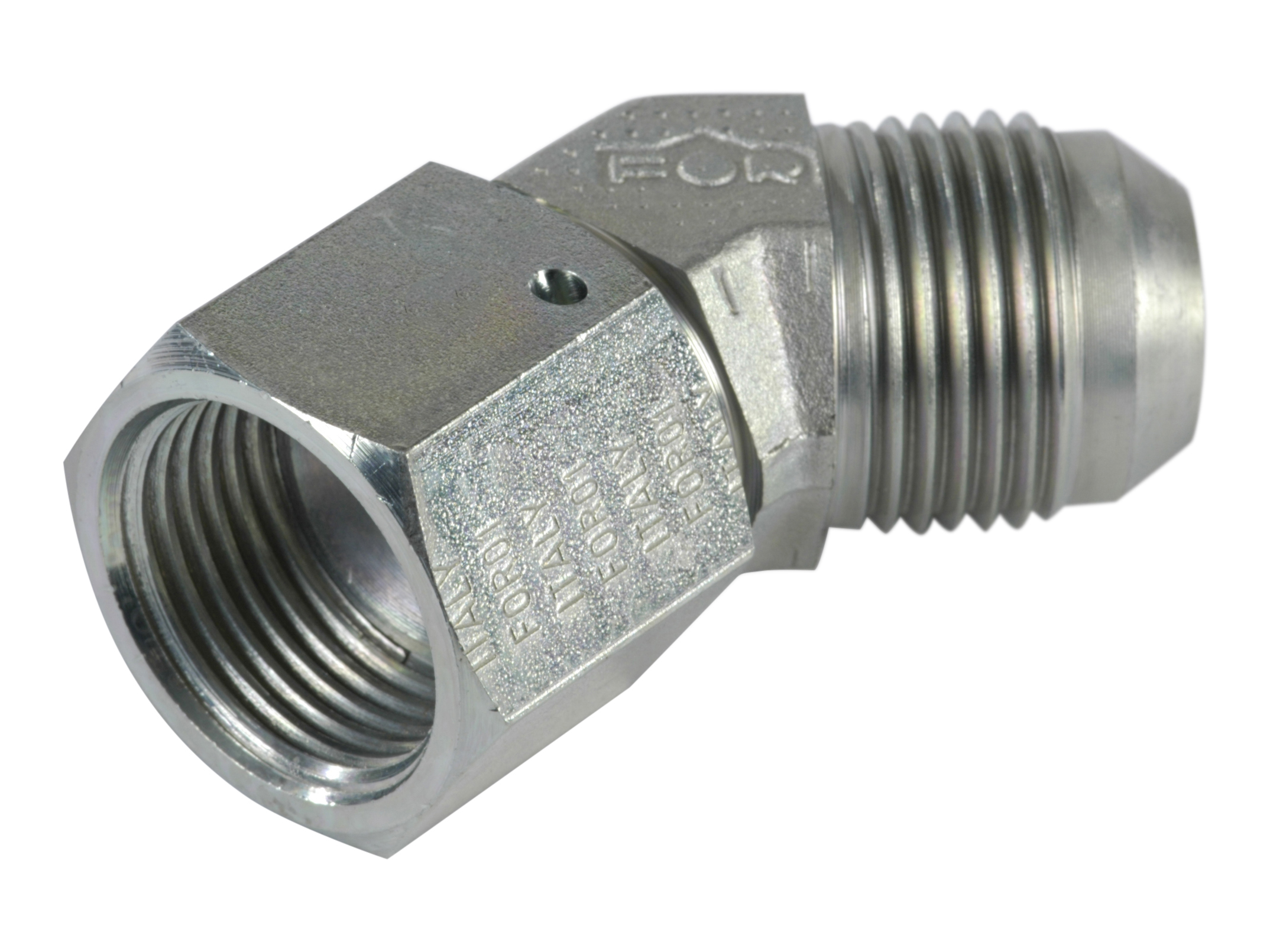

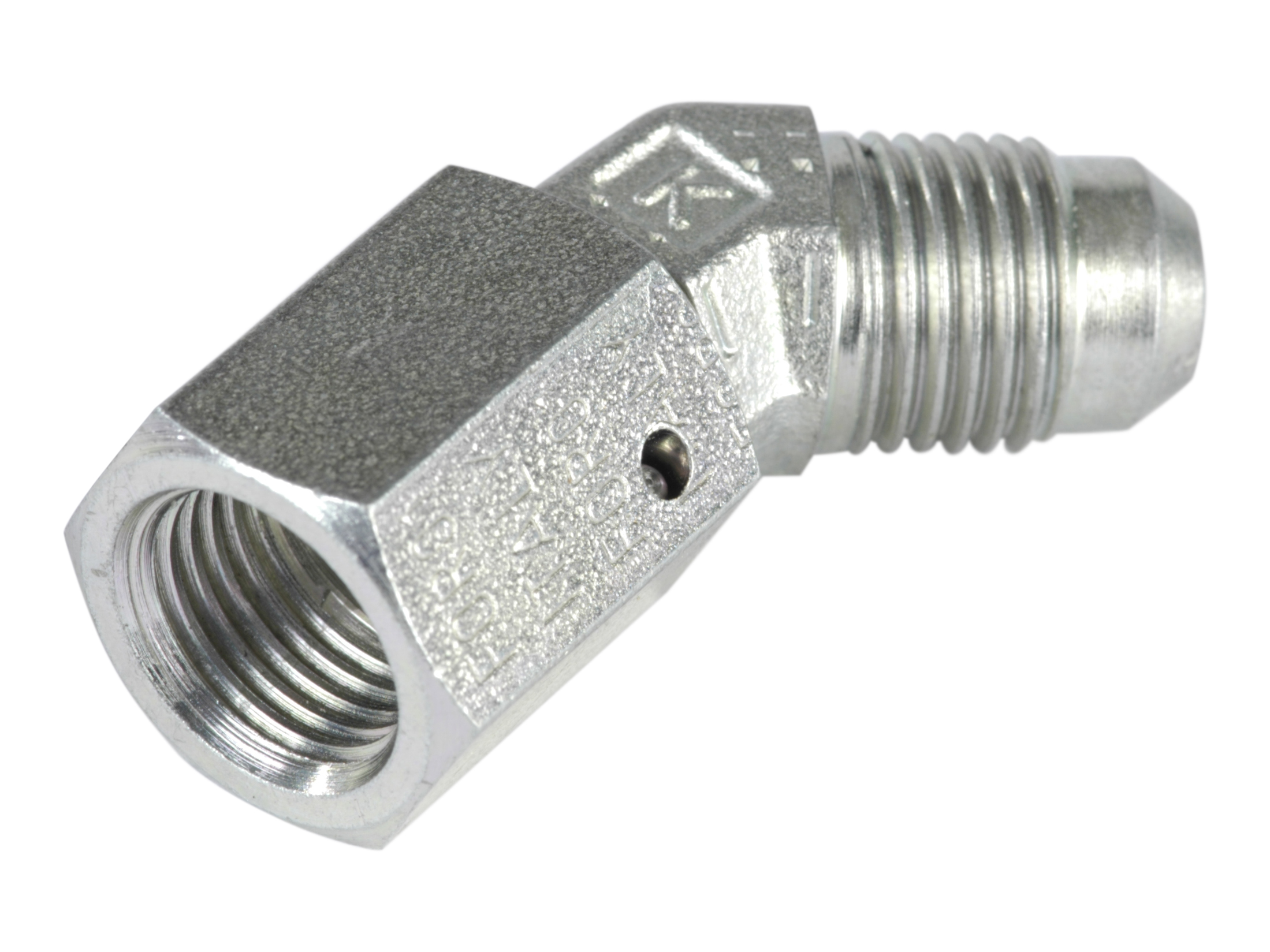

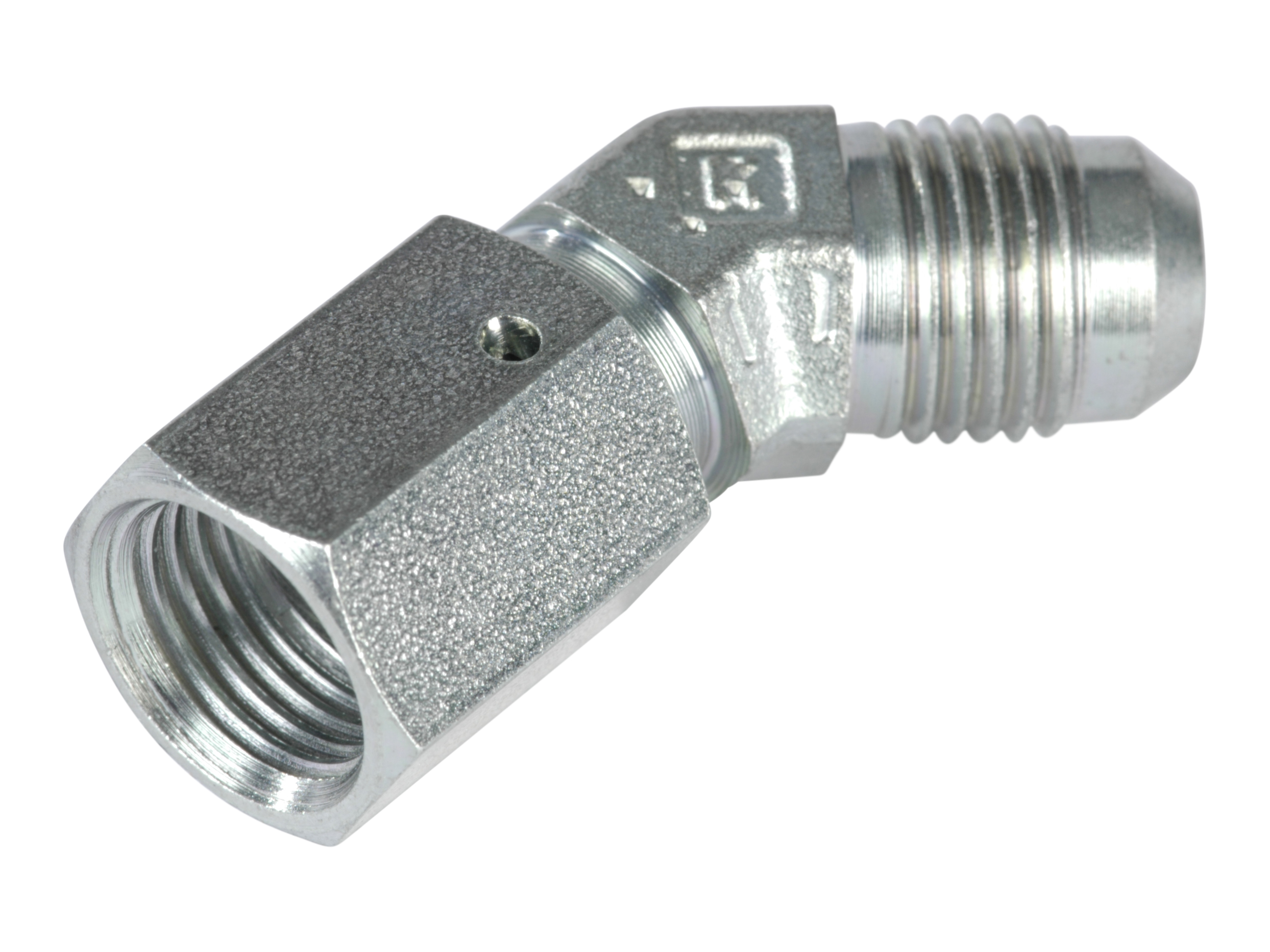

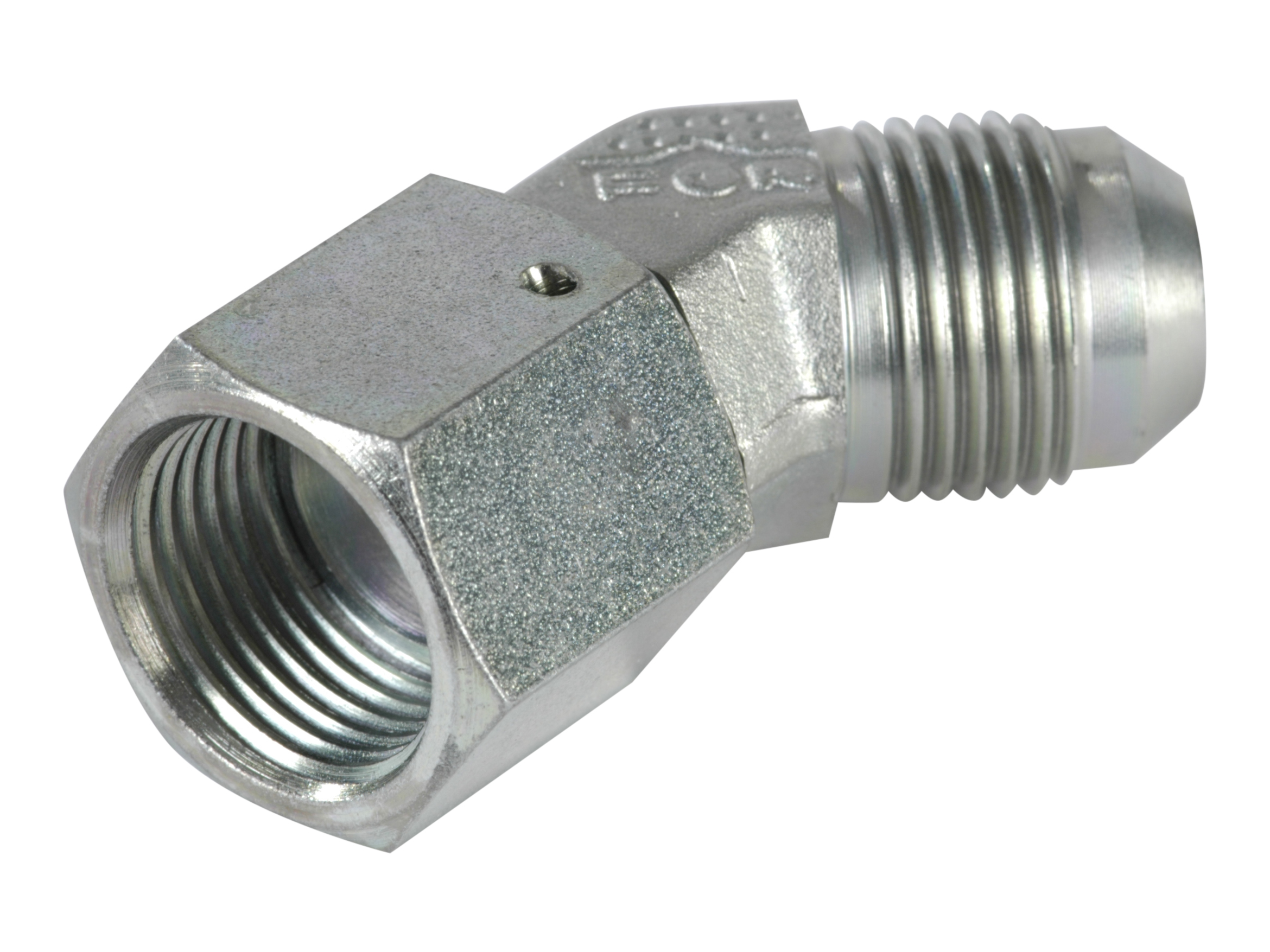

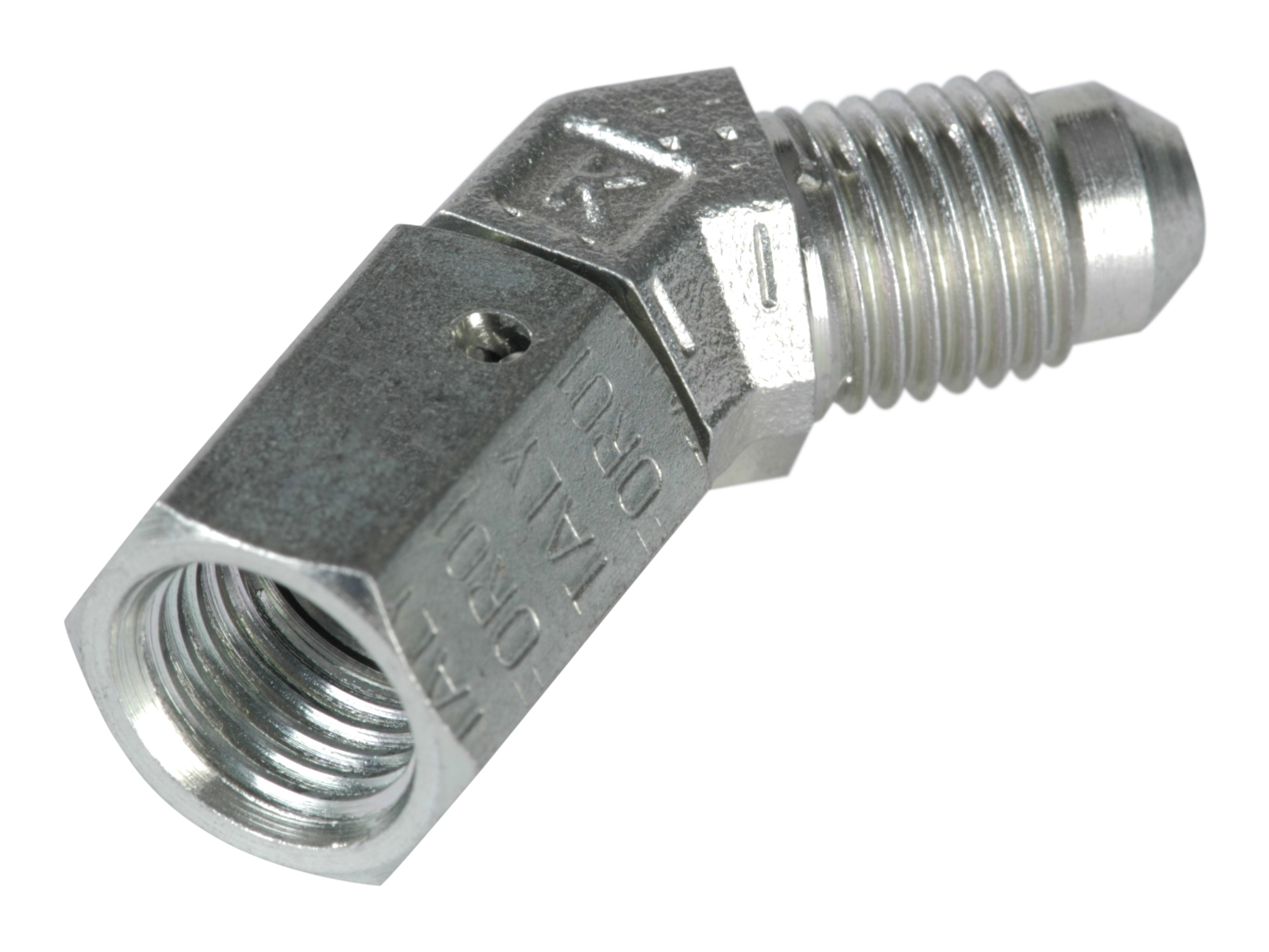

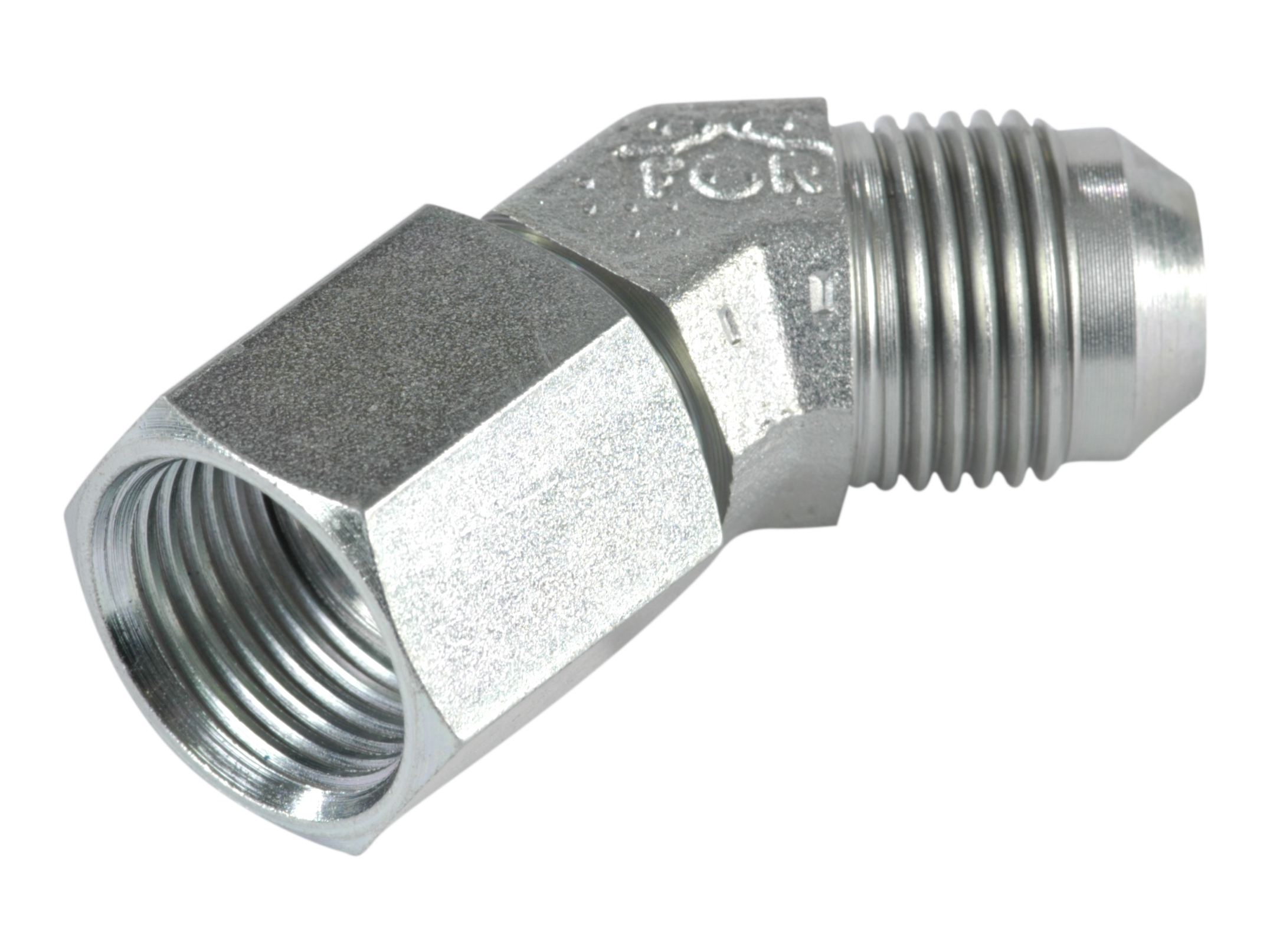

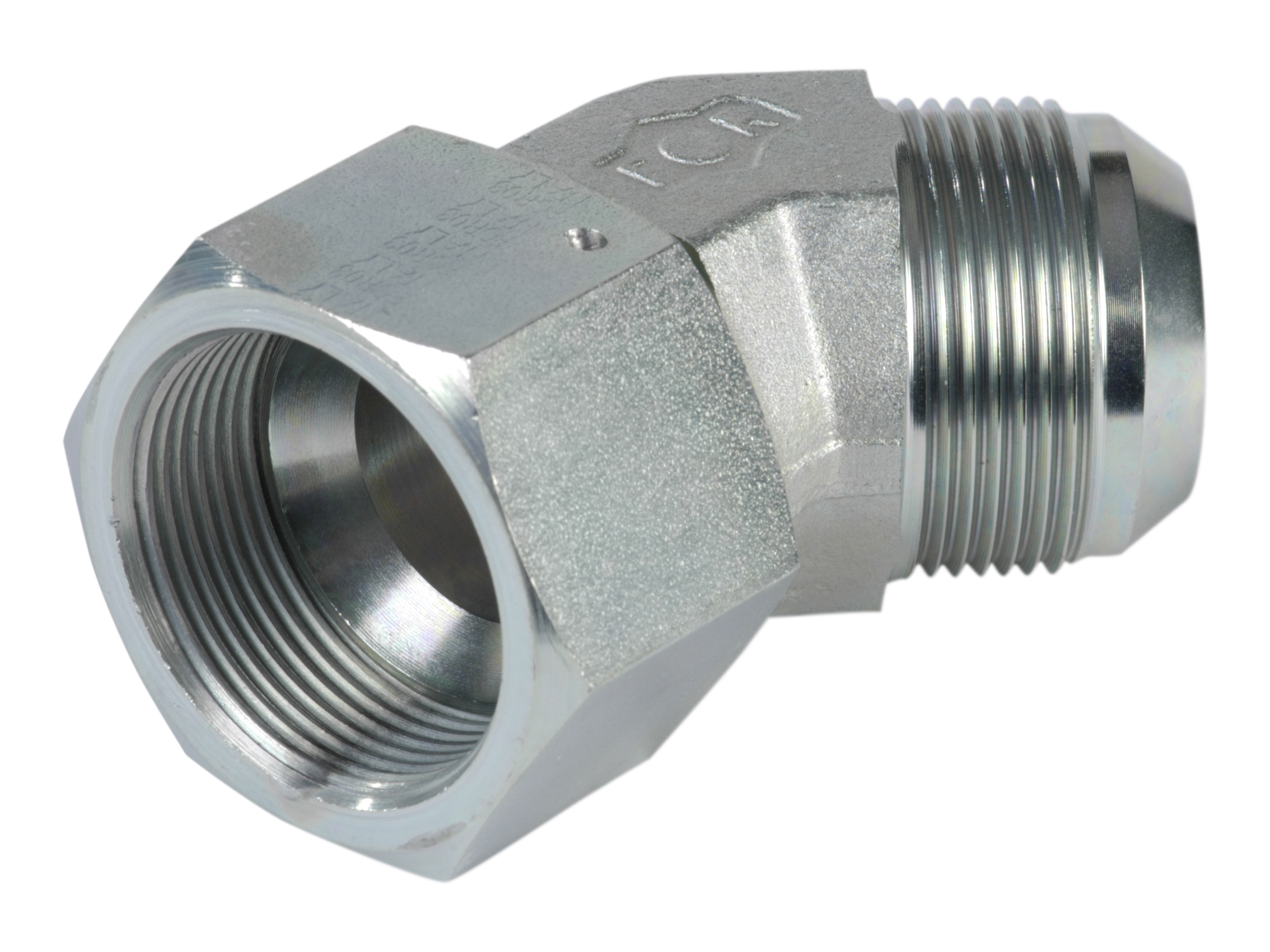

Elbow adapter 45° JIC male x JIC union nut

Elbow adapter 45° JIC male x JIC union nut

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Thread inner Thread outer Pressure max.
VG-06 S690-06-45G elbow with nut 6 mm 7/16-20 JIC 7/16-20 JIC 450 bar
VG-08 S690-08-45G elbow with nut 8 mm 1/2-20 JIC 1/2-20 JIC 416 bar
VG-10 S690-10-45G elbow with nut 10 mm 9/16-18 JIC 9/16-18 JIC 350 bar
VG-12 S690-12-45G elbow with nut 12 mm 3/4-16 JIC 3/4-16 JIC 350 bar
VG-16 S690-16-45G elbow with nut 16 mm 7/8-14 JIC 7/8-14 JIC 350 bar
VG-20 S690-20-45G elbow with nut 20 mm 1.1/16-12 JIC 1.1/16-12 JIC 300 bar
VG-25 S690-25-45G elbow with nut 25 mm 1.5/16-12 JIC 1.5/16-12 JIC 290 bar
VG-32 Elbow with nut, 45° 32 mm 1.5/8-12 JIC 1.5/8-12 JIC 240 bar
VG-38 Elbow with nut, 45° 38 mm 1.7/8-12 JIC 1.7/8-12 JIC 250 bar
Angle
45
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Material
Steel
Surface treatment
Electro-galvanized / White chromatized
