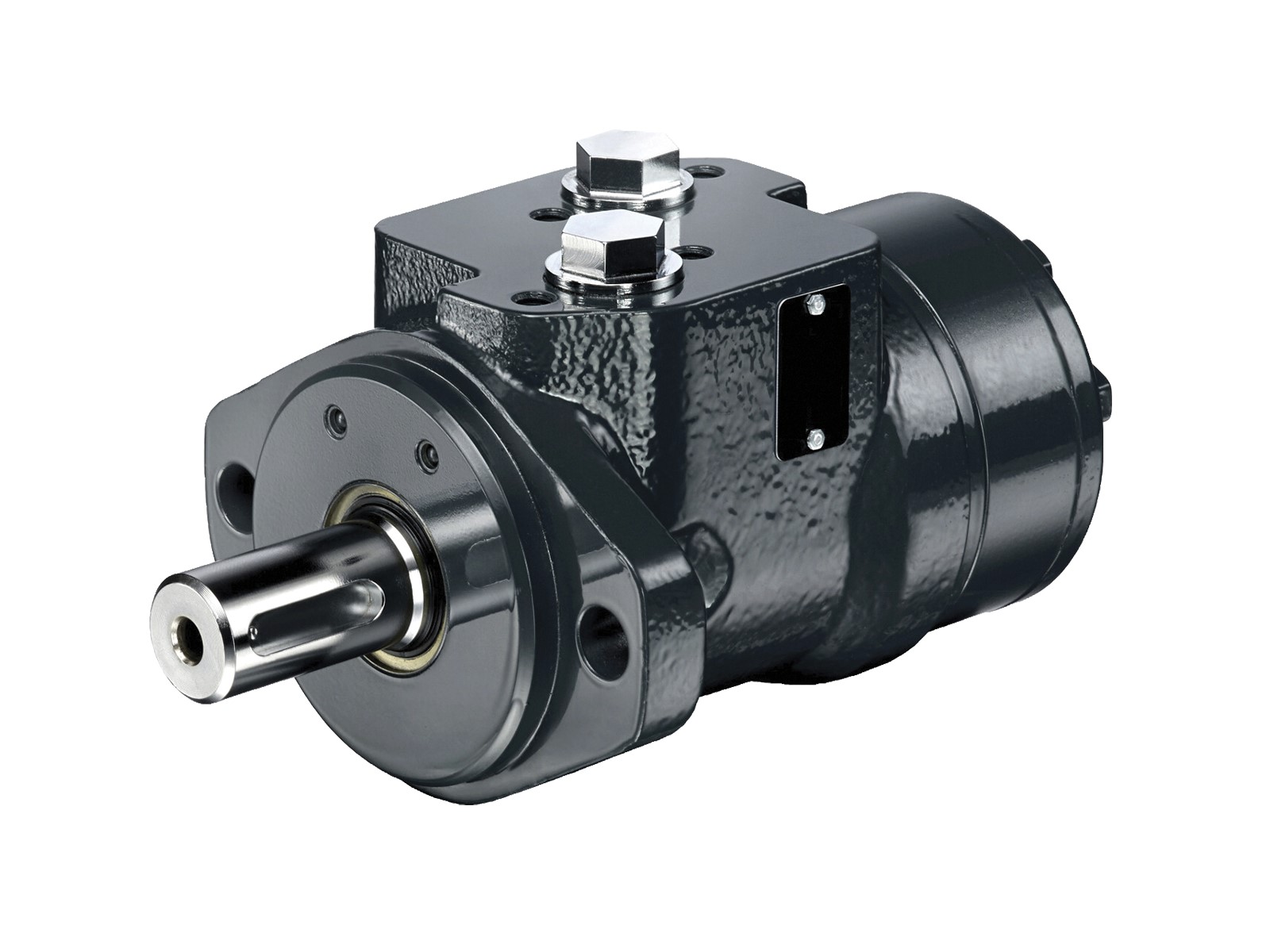

Orbital motors SAE-A2 25mm cyl. WP

Orbital motors SAE-A2 25mm cyl. WP

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Shaft diameter Shaft type Number of mounting holes Mounting flange
11199449 Orbit Motor WP 050 CR SAE A 2-hole ø25mm Black 25 mm Cylindrical 2 SAE-A2
11199460 Orbit Motor WP 080 CR SAE A 2-hole ø25mm Black 25 mm Cylindrical 2 SAE-A2
11199473 Orbit Motor WP 100 CR SAE A 2-hole ø25mm Black 25 mm Cylindrical 2 SAE-A2
11199486 Orbit Motor WP 160 CR SAE A 2-hole ø25mm Black 25 mm Cylindrical 2 SAE-A2
11199498 Orbit Motor WP 200 CR SAE A 2-hole ø25mm Black 25 mm Cylindrical 2 SAE-A2
11199506 Orbit Motor WP 250 CR SAE A 2-hole ø25mm Black 25 mm Cylindrical 2 SAE-A2
11199513 Orbit Motor WP 315 CR SAE A 2-hole ø25mm Black 25 mm Cylindrical 2 SAE-A2
Brand Name
Impro Fluidtek
Drainport
G 1/4
Holes circle
106.4
Mounting flange
SAE-A2
Number of mounting holes
2
Oil viscocity recommended
20 - 43
Port position
Side
Recess
82,5
Shaft diameter
25
Shaft keyway
8,0
Shaft type
Cylindrical
Working ports
G 1/2
