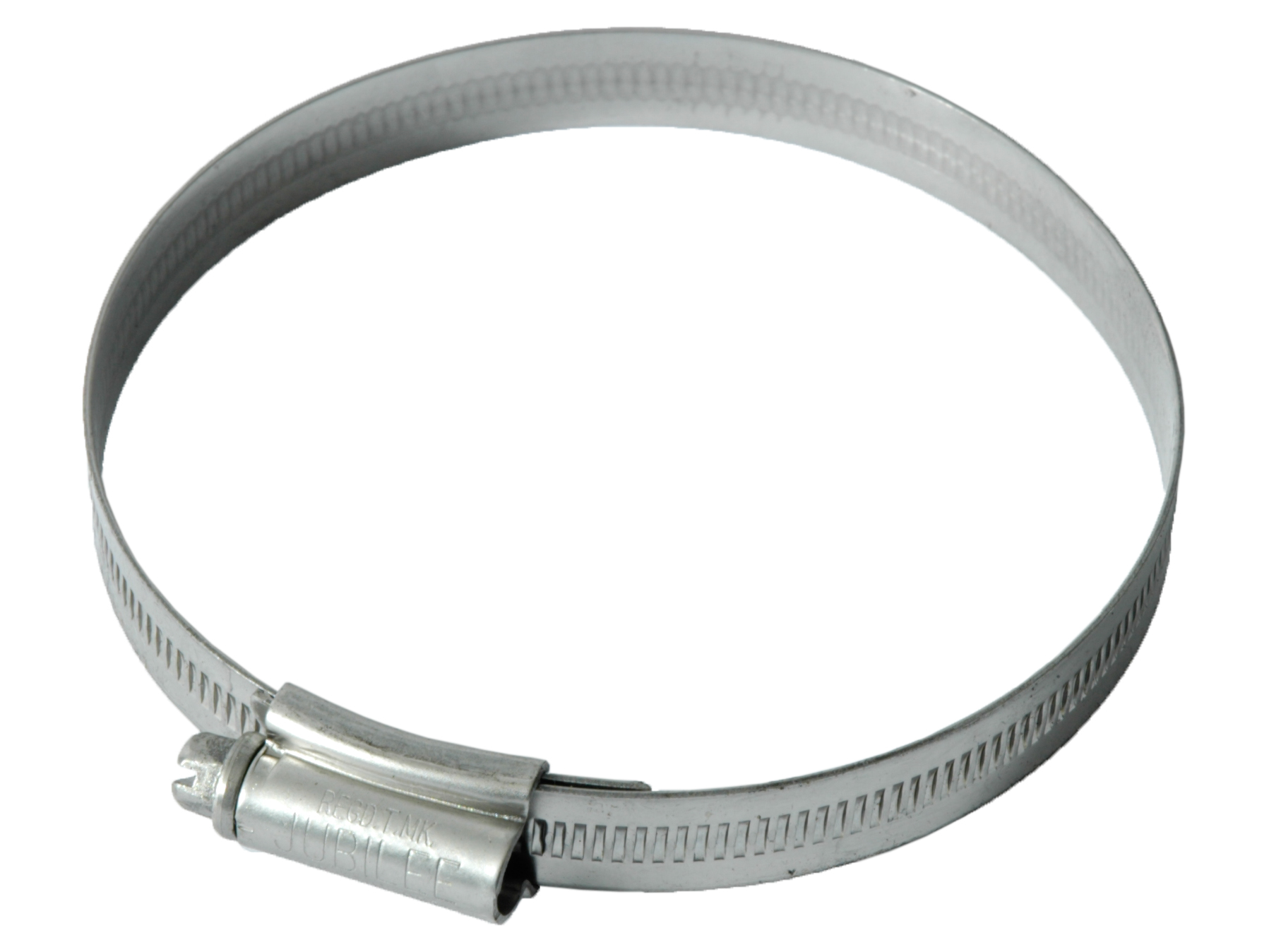

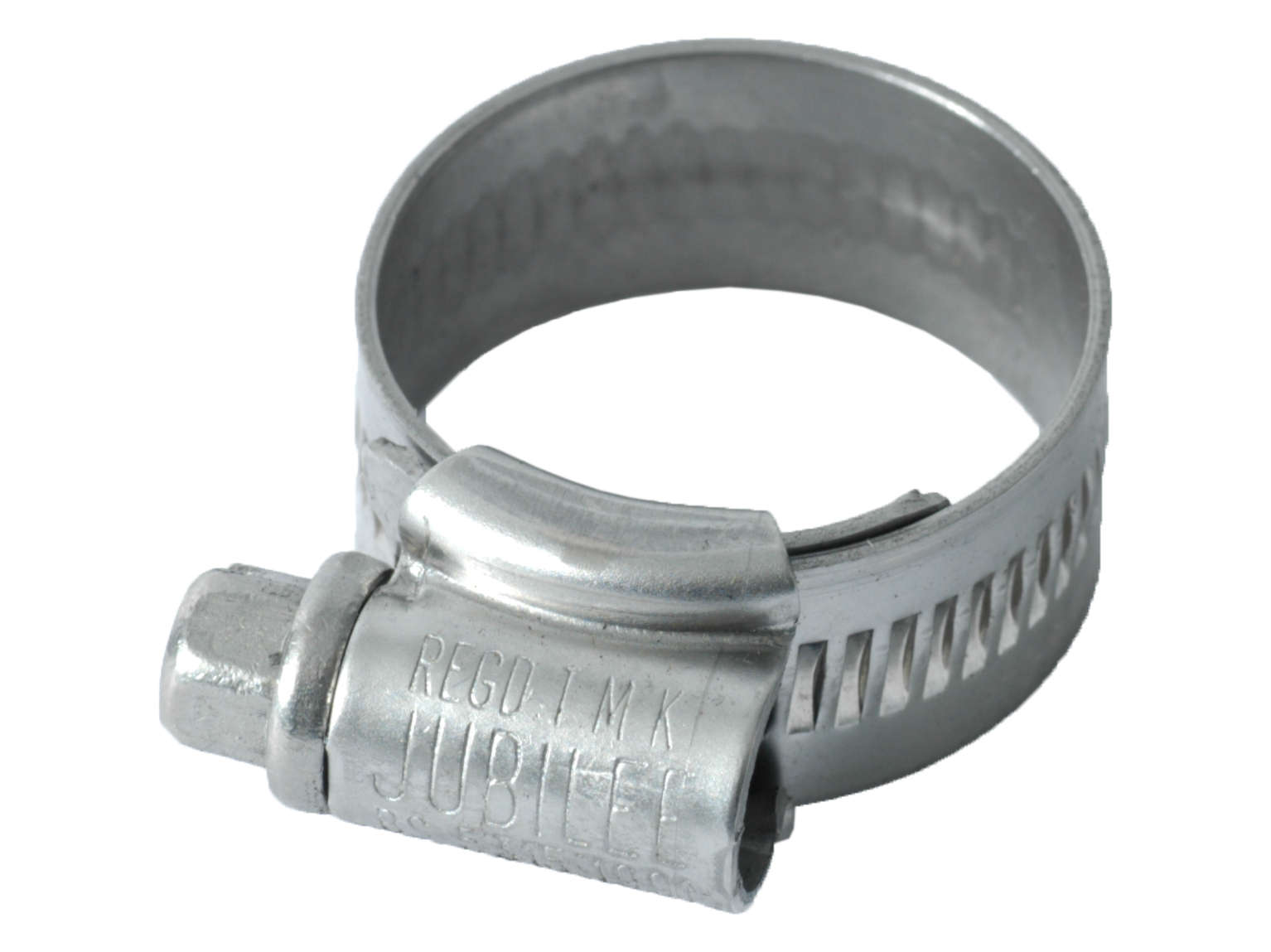

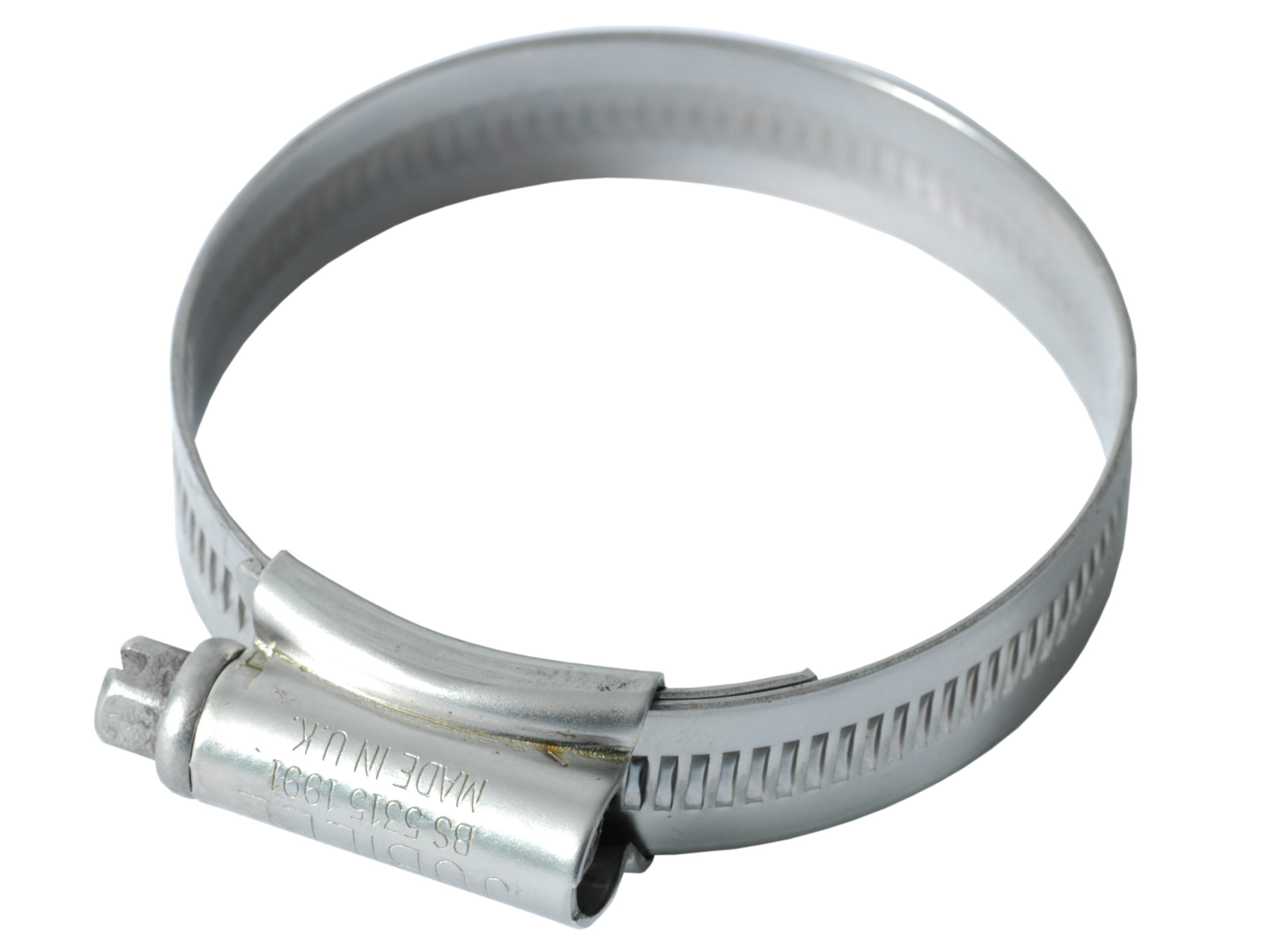

Hose clamps stainless Jubilee 0116030

SELECT VARIANT

Partnumber	Description	Width	Diameter min.	Diameter max.
0116030012	Jubilee stainless clamp Lr, 8-12	9.9 mm	9.5 mm	12 mm
0116030016	Jubilee stainless clamp Lr, 10-16	9.9 mm	11 mm	16 mm
0116030020	Jubilee stainless clamp Lr, 12-20	9.9 mm	13 mm	20 mm
0116030022	Jubilee stainless clamp NO. o	13 mm	16 mm	22 mm
0116030025	Jubilee stainless clamp NO. ox	13 mm	18 mm	25 mm
0116030030	Jubilee stainless clamp NO. 1A	13 mm	22 mm	30 mm
0116030035	Jubilee stainless clamp NO. 1	13 mm	25 mm	35 mm
0116030040	Jubilee stainless clamp NO. 1x	13 mm	30 mm	40 mm
0116030050	Jubilee stainless clamp NO. 2A	13 mm	35 mm	50 mm
0116030055	Jubilee stainless clamp NO. 2	13 mm	40 mm	55 mm
0116030060	Jubilee stainless clamp NO. 2X	13 mm	45 mm	60 mm
0116030070	Jubilee stainless clamp NO. 3	13 mm	55 mm	70 mm
0116030080	Jubilee stainless clamp NO. 3X	13 mm	60 mm	80 mm
0116030090	Jubilee stainless clamp NO. 4	13 mm	70 mm	90 mm
0116030100	Stainless steel clips, size NO. 4X	13 mm	85 mm	100 mm
0116030120	Stainless steel clips, size NO. 5	13 mm	90 mm	120 mm
0116030140	Stainless steel clips, size NO. 6	13 mm	110 mm	140 mm
0116030150	Stainless steel clips, size NO. 6X	13 mm	130 mm	150 mm
0116030165	Stainless steel clips, size NO. 7	13 mm	135 mm	165 mm
0116030190	Jubilee stainless clamp NO. 7 1/2	13 mm	158 mm	190 mm

Corrosion resistance

1000 hours salt spray UNI ISO 9227

Hexagon

Material

Stainless steel

Material quality

1.4301 / AISI304
