NG06 pressure relief valves Atos HM

SELECT VARIANT

Partnumber	Description	Pressure setting min.	Pressure setting max.

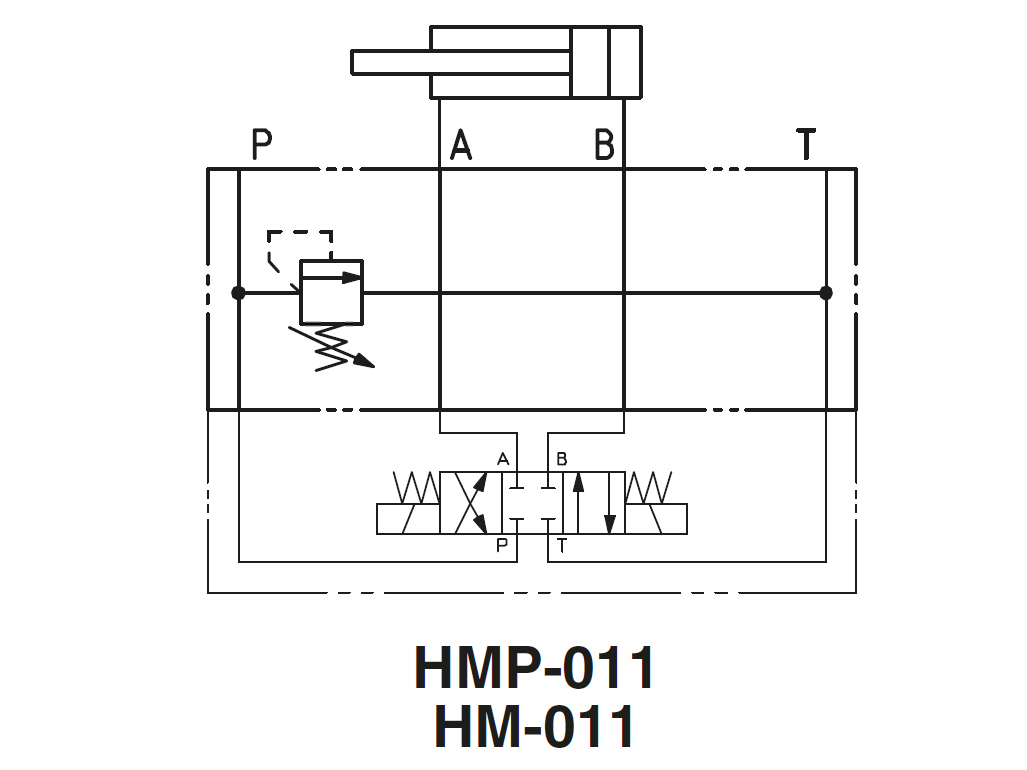

HM011/100	Cetop3 pressure relief valve P 5-100 bar	5 bar	100 bar
HM011/210	Cetop3 pressure relief valve P->T 5-210 bar	5 bar	210 bar
HM011/350	Cetop3 pressure relief valve P 5-350 bar	5 bar	350 bar

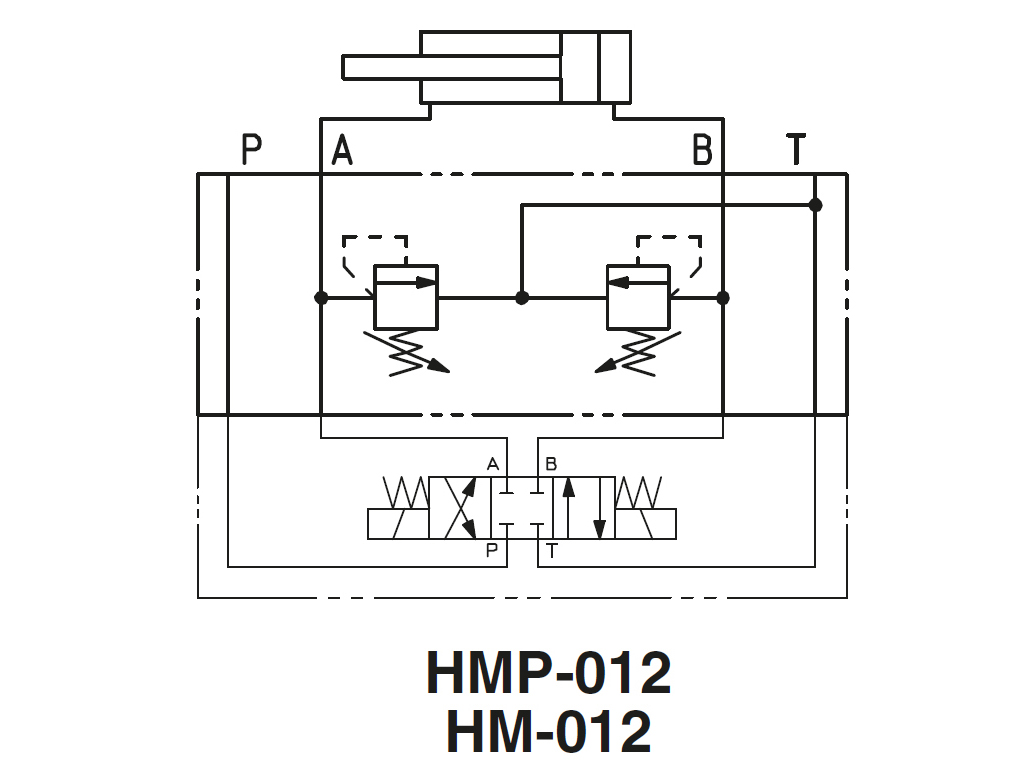

HM012/100	Cetop3 pressure relief valve A 5-100 bar	5 bar	100 bar
HM012/210	Cetop3 pressure relief valve A 5-210 bar	5 bar	210 bar
HM012/350	Cetop3 pressure relief valve A 5-350 bar	5 bar	350 bar

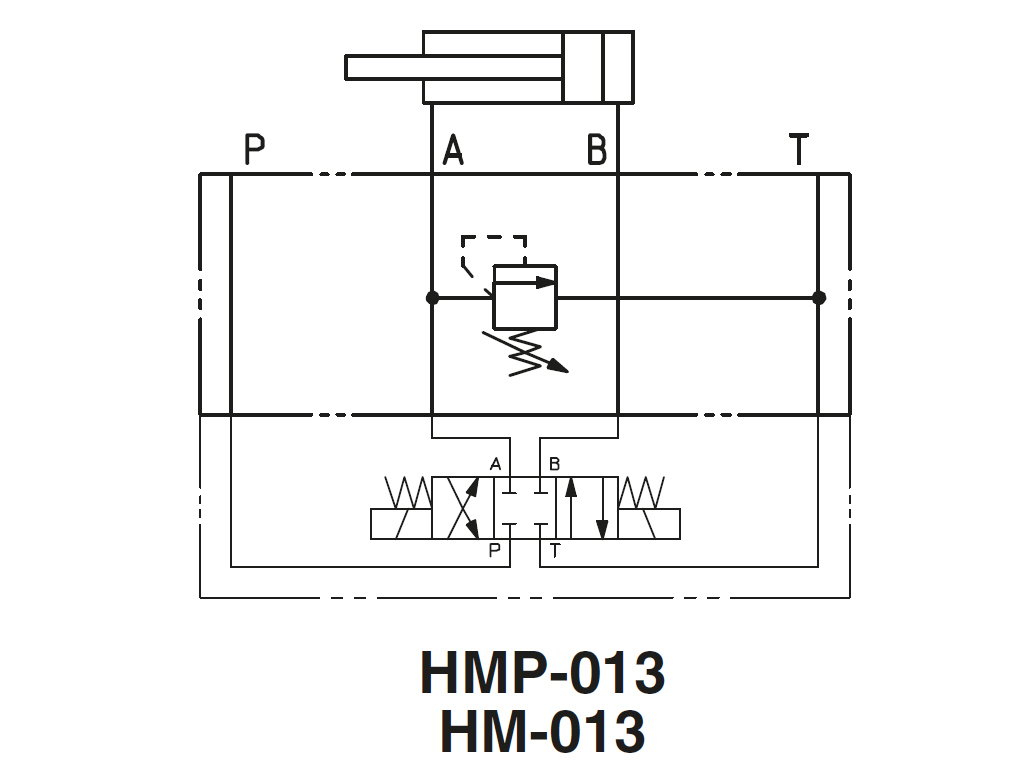

HM013/100	Cetop3 pressure relief valve A 5-100 bar	5 bar	100 bar
HM013/210	Cetop3 pressure relief valve A 5-210 bar	5 bar	210 bar
HM013/350	Cetop3 pressure relief valve A 5-350 bar	5 bar	350 bar

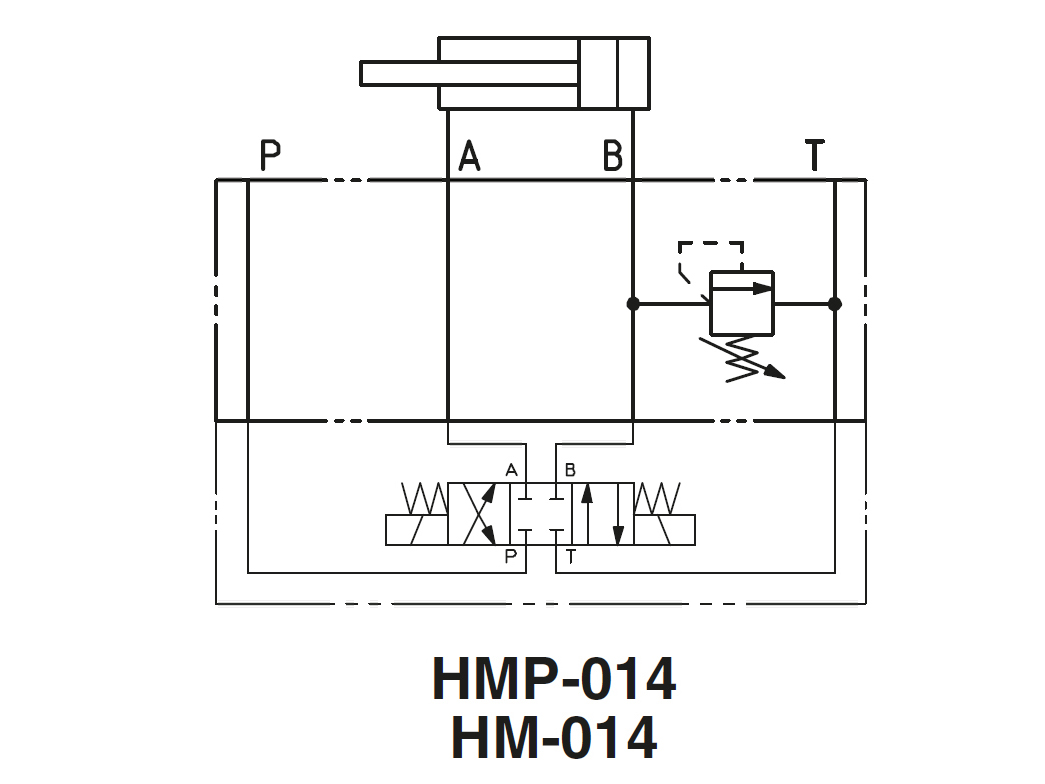

HM014/100	Cetop3 pressure relief valve B 5-100 bar	5 bar	100 bar
HM014/210	Cetop3 pressure relief valve B 5-210 bar	5 bar	210 bar
HM014/350	Cetop3 pressure relief valve B 5-350 bar	5 bar	350 bar

Brand Name

Atos

Contamination level max.

20/18/15 - ISO 4406

Flow rate nominal LMin

NG ISO-size

NG06

Oil viscocity recommended

15 - 100

Pressure max.

350

Pressure setting min.

Standard ISO

ISO 4401

Temperature max.

+80

Temperature min.

-20

Valve type

Pressure relief valve
