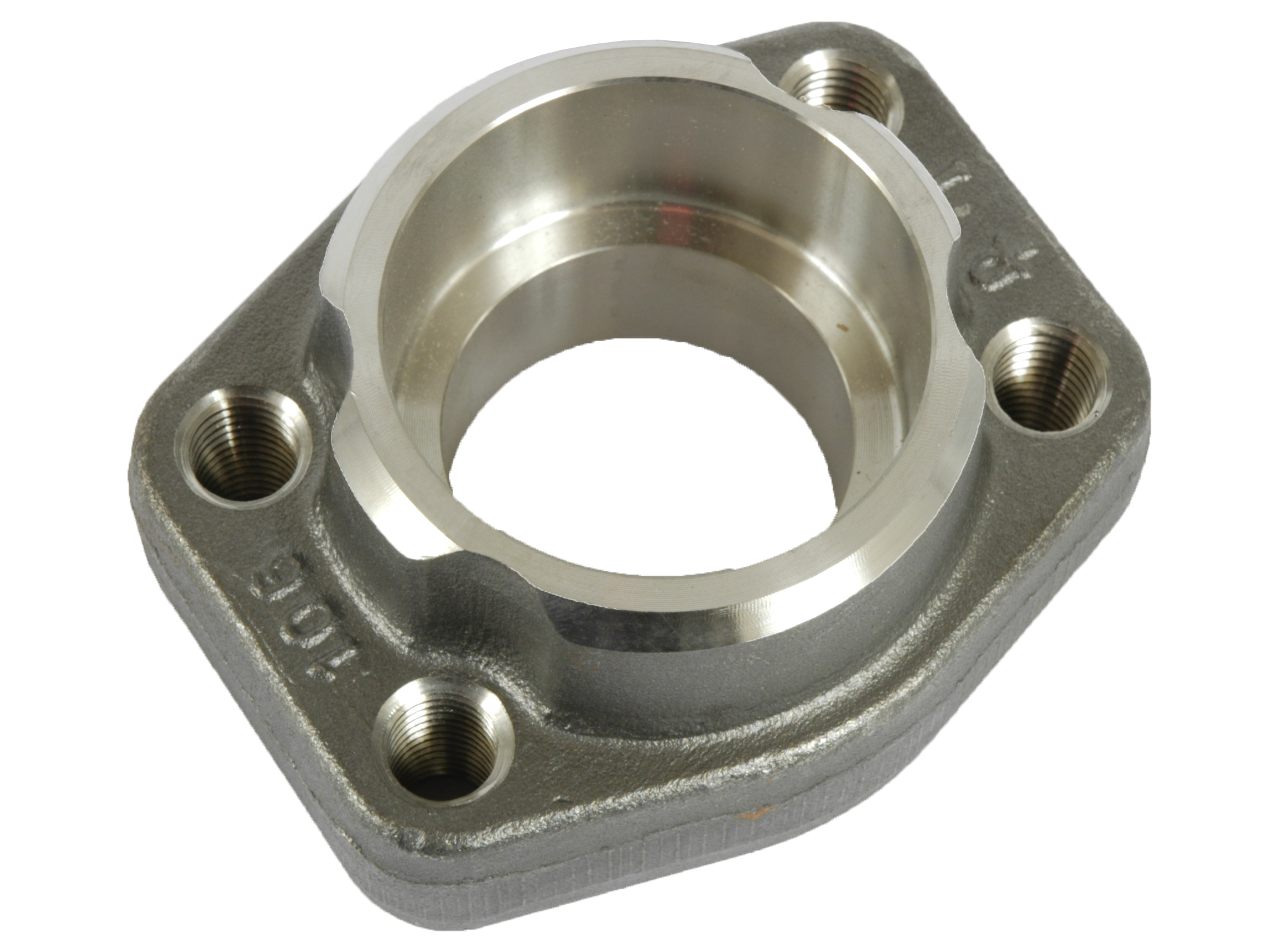

Socket weld flange 0° SAE 3000 PSI stainless - GFX-S

Socket weld flange 3/4" SAE3000 - stainless AISI316L

Socket weld flange 1" SAE3000 - stainless AISI316L

Socket weld flange 1.1/4" SAE3000 - stainless AISI316L

Socket weld flange 1.1/2" SAE3000 - stainless AISI316L

Socket weld flange 2" SAE3000 - stainless AISI316L

Socket weld flange 2.1/2" SAE3000 - stainless AISI316L

SELECT VARIANT

Partnumber	Description	Flange SAE/DIN	Flange
GFX100S	Socket weld flange 3/4" SAE3000 - stainless AISI316L	3000 PSI	3/4 "
GFX102S	Socket weld flange 1" SAE3000 - stainless AISI316L	3000 PSI	1 "
GFX104S	Socket weld flange 1.1/4" SAE3000 - stainless AISI316L	3000 PSI	1.1/4 "
GFX106S	Socket weld flange 1.1/2" SAE3000 - stainless AISI316L	3000 PSI	1.1/2 "
GFX108S	Socket weld flange 2" SAE3000 - stainless AISI316L	3000 PSI	2 "
GFX110S	Socket weld flange 2.1/2" SAE3000 - stainless AISI316L	3000 PSI	2.1/2 "

Brand Name

Havit

Flange SAE/DIN

3000 PSI

Material

Stainless steel

Material quality

1.4404 / AISI316L

Shore

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Temperature max.

+90

Temperature min.

-40
