Threaded flange 90° SAE 6000 PSI x BSP female - AFS4-/90GM

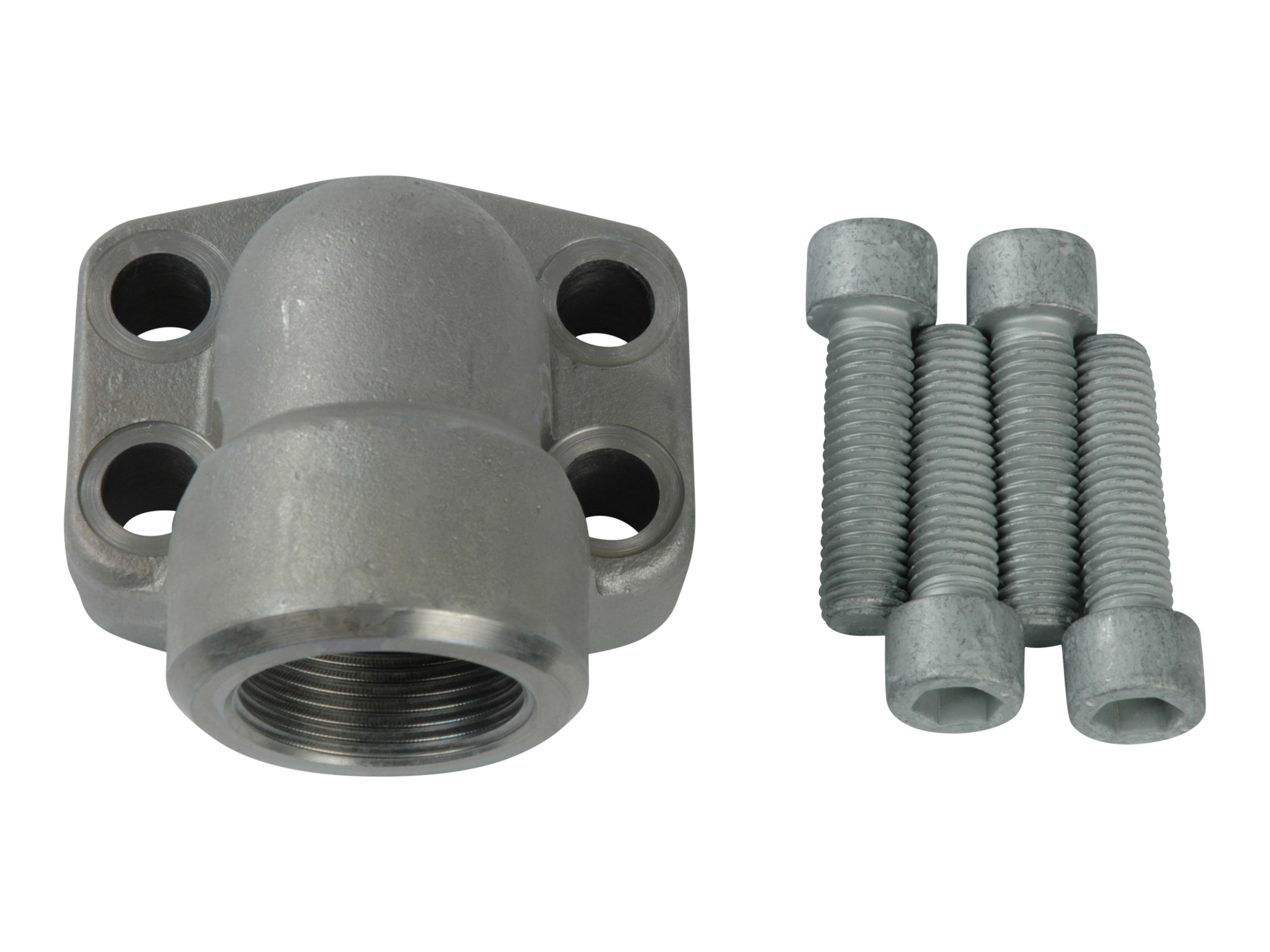

Flange 90° 1/2" SAE6000 x 1/2" BSP - complete

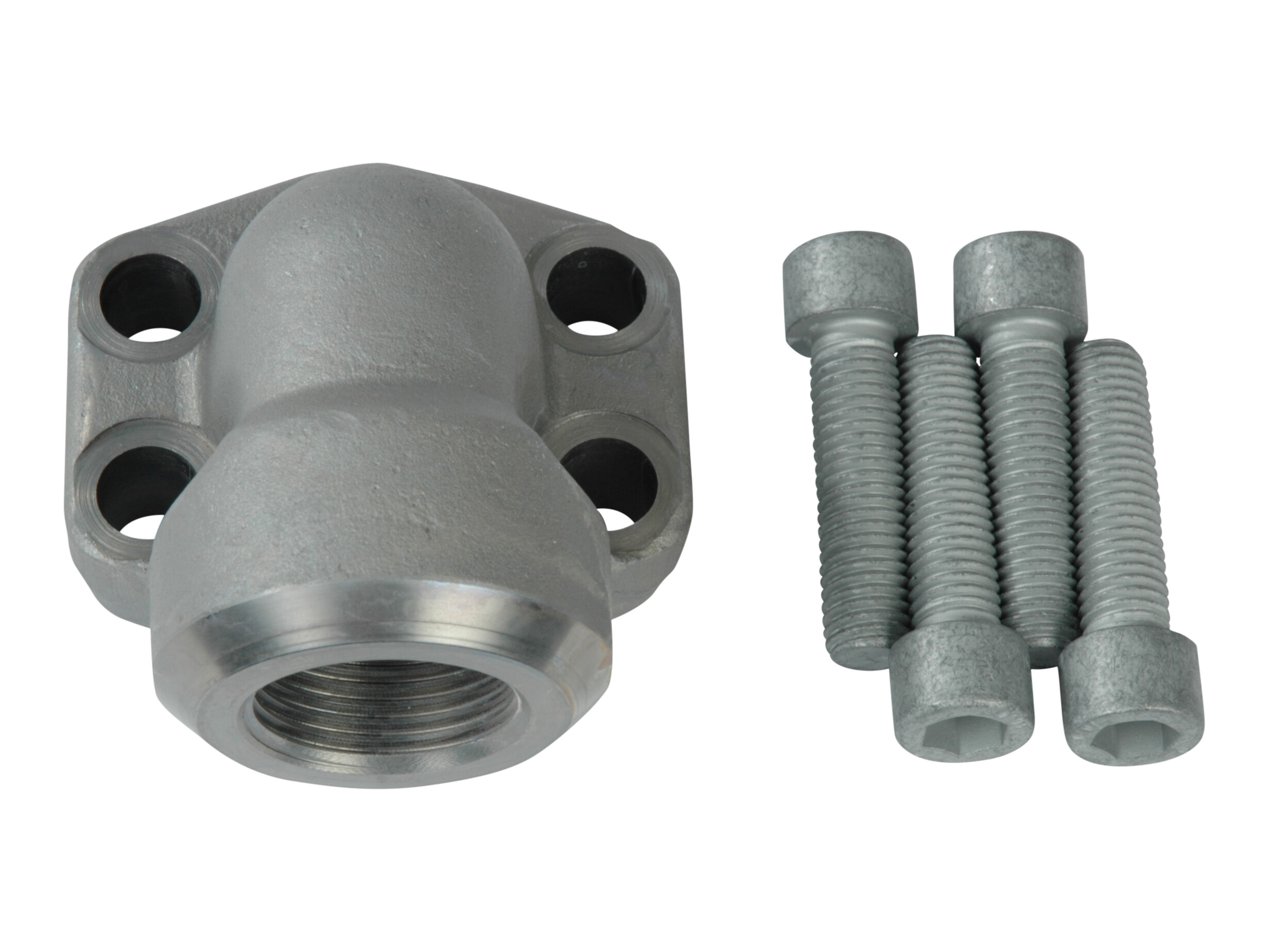

Flange 90° 3/4" SAE6000 x 3/4" BSP - complete

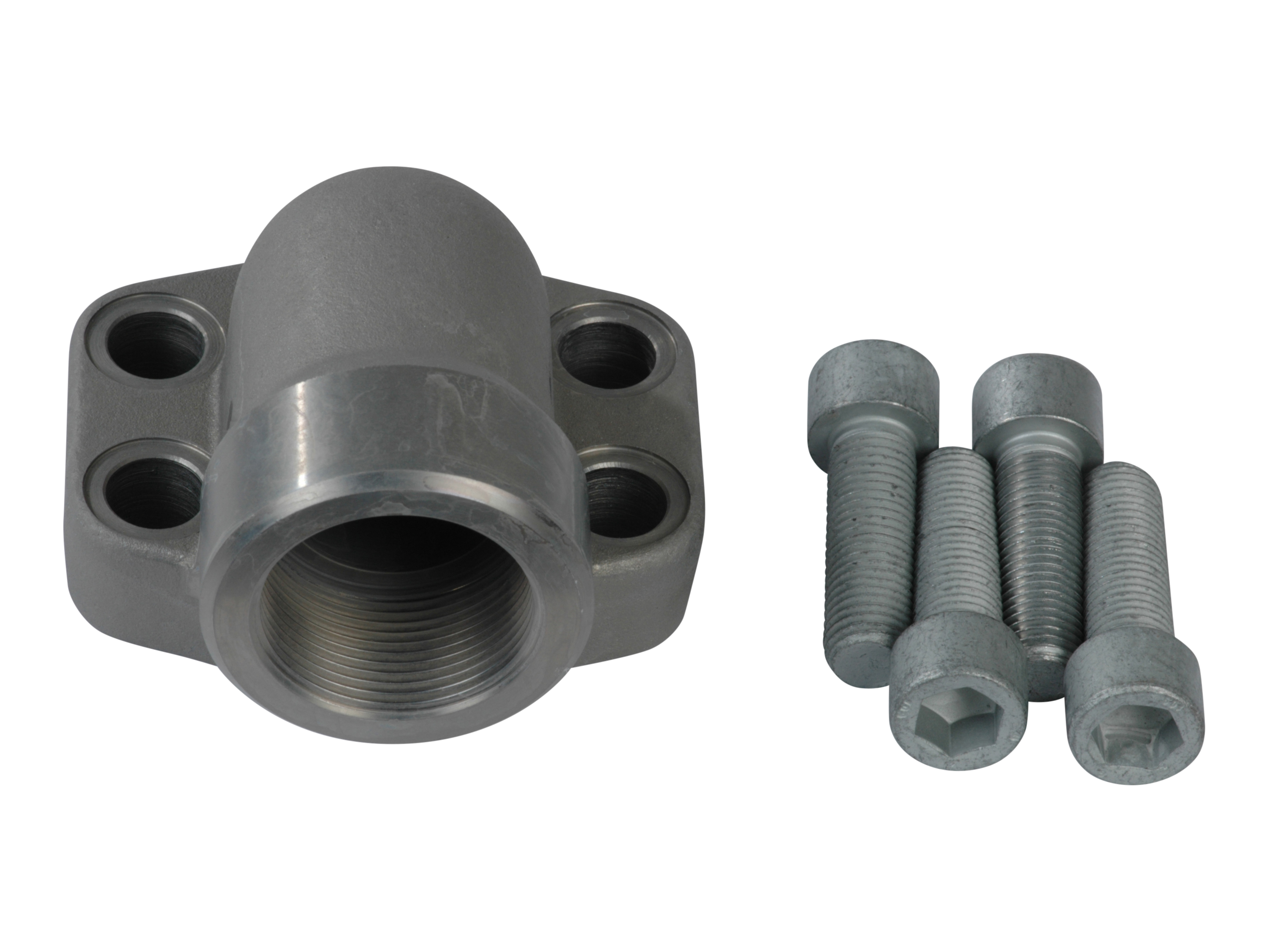

Flange 90° 1" SAE6000 x 1" BSP - complete

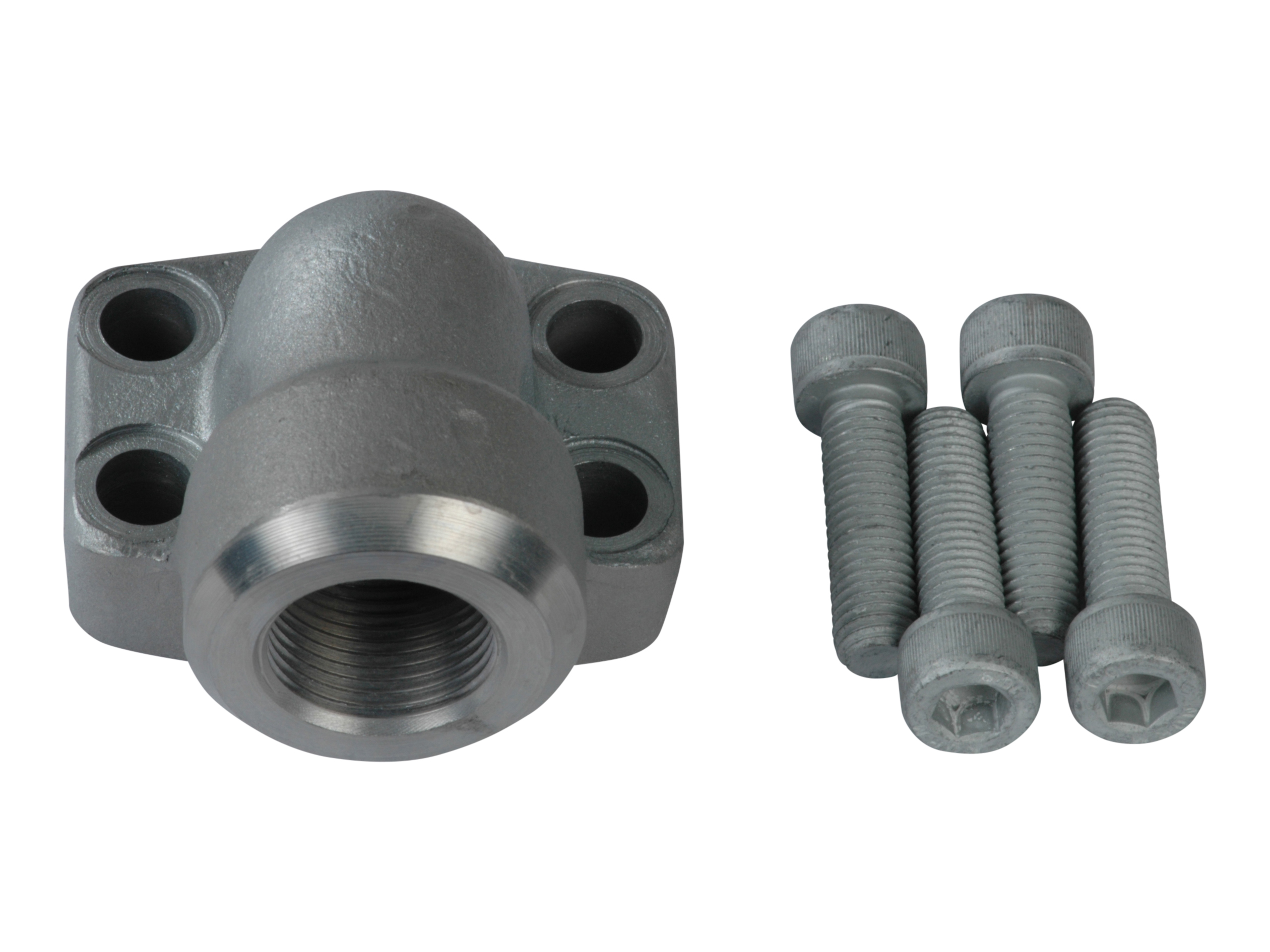

Flange 90° 1.1/4" SAE6000 x 1.1/4" BSP - complete

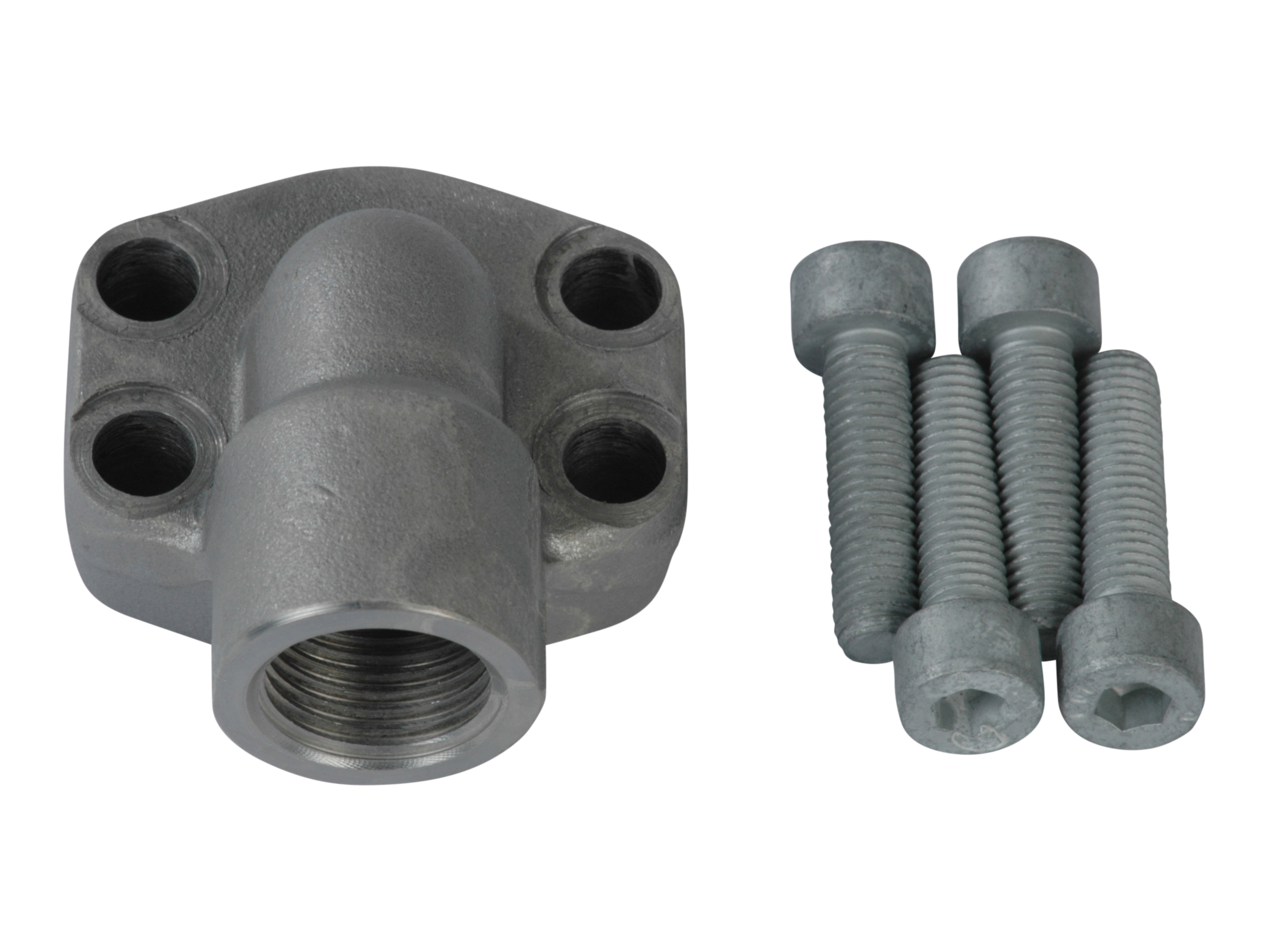

Flange 90° 1.1/2" SAE6000 x 1.1/2" BSP - complete

SELECT VARIANT

Partnumber	Description	Flange SAE/DIN	Flange	Thread inner
AFS401/90GM	Flange 90° 1/2" SAE6000 x 1/2" BSP - complete	6000 PSI	1/2 "	G 1/2 BSP
AFS402/90GM	Flange 90° 3/4" SAE6000 x 3/4" BSP - complete	6000 PSI	3/4 "	G 3/4 BSP
AFS403/90GM	Flange 90° 1" SAE6000 x 1" BSP - complete	6000 PSI	1 "	G 1 BSP
AFS404/90GM	Flange 90° 1.1/4" SAE6000 x 1.1/4" BSP - complete	6000 PSI	1.1/4 "	G 1.1/4 BSP
AFS405/90GM	Flange 90° 1.1/2" SAE6000 x 1.1/2" BSP - complete	6000 PSI	1.1/2 "	G 1.1/2 BSP

Angle

Brand Name

Havit

Corrosion resistance

480 hours salt spray DIN EN 9227

Flange SAE/DIN

6000 PSI

Material

Steel

Number of bolts

Pressure max.

420

Sealing material

NBR

Shore

Standard ISO

ISO 6162-2

Standard SAE

SAE J518 Code 62

Surface treatment

Zinc-Nickel plated

Temperature max.

+90

Temperature min.

-40
