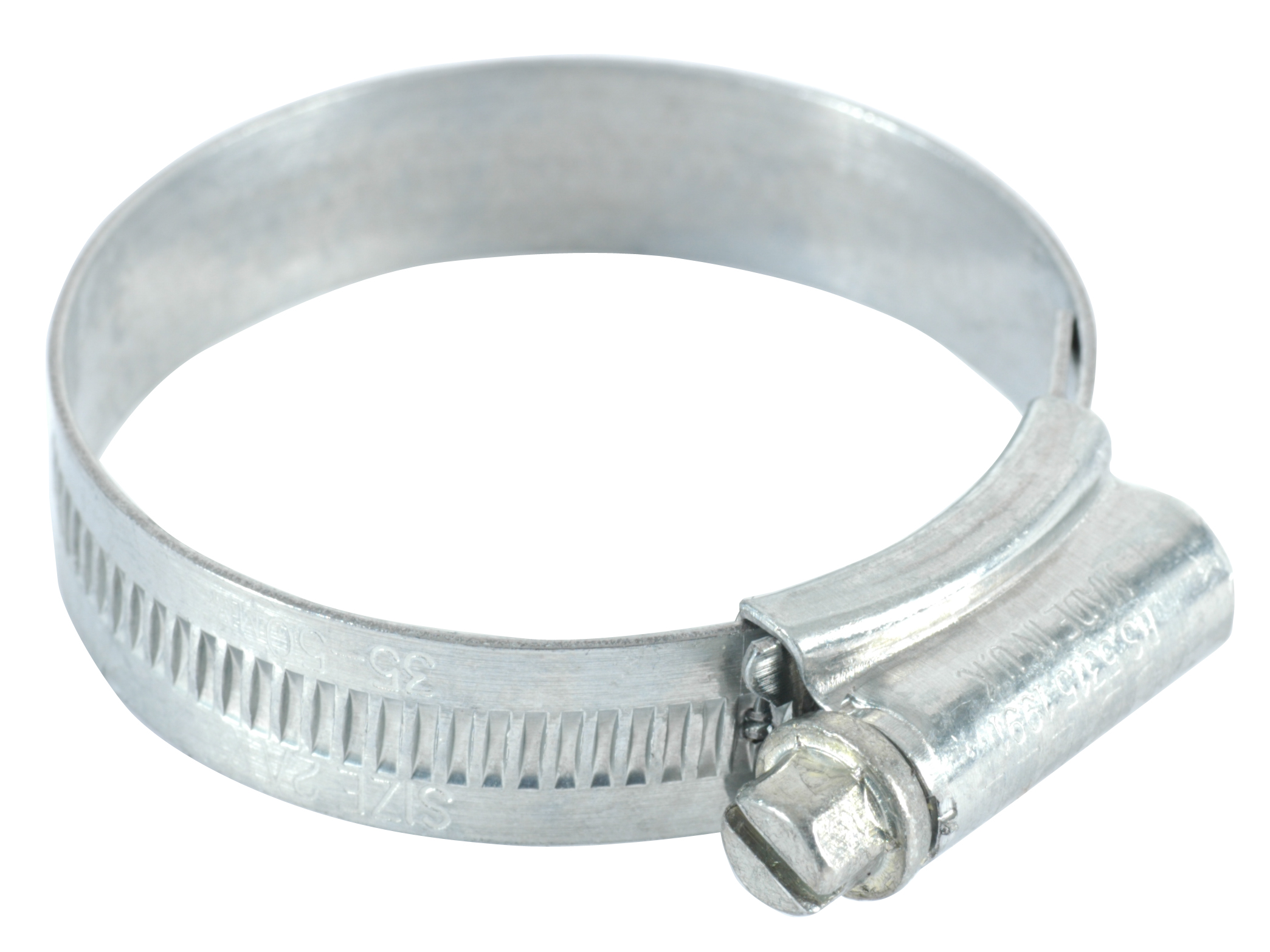

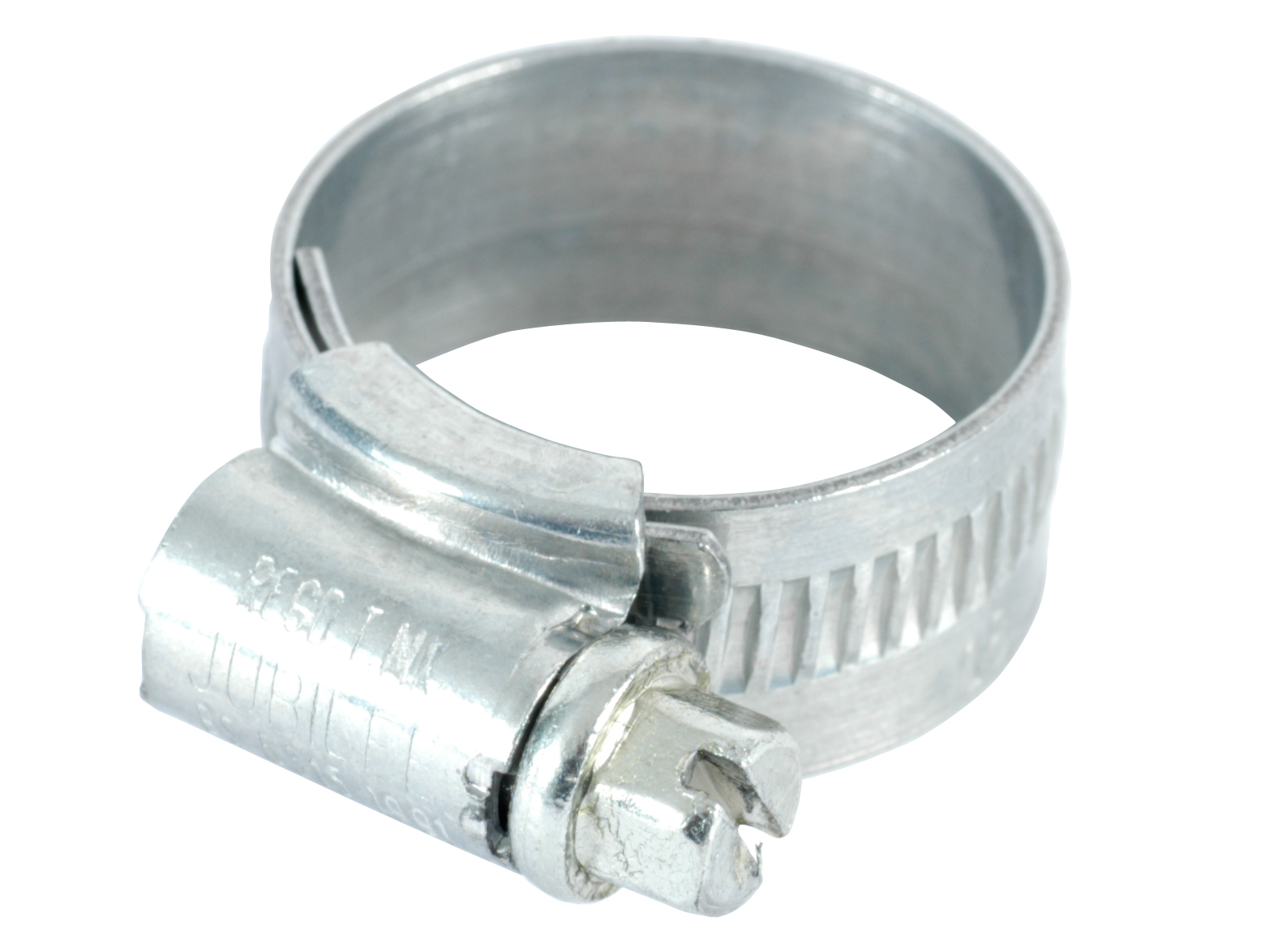

Hose clamps Jubilee LR

SELECT VARIANT

Partnumber	Description	Width	Diameter min.	Diameter max.
0116022012	Mild steel clips, type lr, 8-12	9.5 mm	9.5 mm	12 mm
0116022016	Mild steel clips, type lr, 10-16	9.5 mm	11 mm	16 mm
0116022020	Mild steel clips, type lr, 12-20	9.5 mm	13 mm	20 mm
0116022022	Mild steel clips, size NO. o	13 mm	16 mm	22 mm
0116022025	Mild steel clips, size NO. ox	13 mm	18 mm	25 mm
0116022030	Mild steel clips, size NO. 1A	13 mm	22 mm	30 mm
0116022035	Mild steel clips, size NO. 1	13 mm	25 mm	35 mm
0116022040	Mild steel clips, size NO. 1x	13 mm	30 mm	40 mm
0116022050	Mild steel clips, size NO. 2A	13 mm	35 mm	50 mm
0116022055	Mild steel clips, size NO. 2	13 mm	40 mm	55 mm
0116022060	Mild steel clips, size NO. 2X	13 mm	45 mm	60 mm
0116022070	Mild steel clips, size NO. 3	13 mm	55 mm	70 mm
0116022080	Mild steel clips, size NO. 3X	13 mm	60 mm	80 mm
0116022090	Mild steel clips, size NO. 4	13 mm	70 mm	90 mm
0116022100	Mild steel clips, size NO. 4X	13 mm	85 mm	100 mm
0116022120	Mild steel clips, size NO. 5	13 mm	90 mm	120 mm
0116022140	Mild steel clips, size NO. 6	13 mm	110 mm	140 mm
0116022150	Mild steel clips, size NO. 6X	13 mm	130 mm	150 mm
0116022165	Mild steel clips, size NO. 7	13 mm	135 mm	165 mm
0116022190	Mild steel clips, size NO. 7 1/2	13 mm	158 mm	190 mm
0116022215	Mild steel clips, size NO. 8 1/2	13 mm	184 mm	216 mm
0116022240	Mild steel clips, size NO. 9 1/2	13 mm	210 mm	242 mm
0116022270	Mild steel clips, size NO. 10 1/2	13 mm	235 mm	267 mm
0116022290	Mild steel clips, size NO. 11 1/2	13 mm	260 mm	292 mm
0116022320	Mild steel clips, size 12 1/2	13 mm	286 mm	318 mm

Material

Steel

Surface treatment

Electro-galvanized / White chromatized
