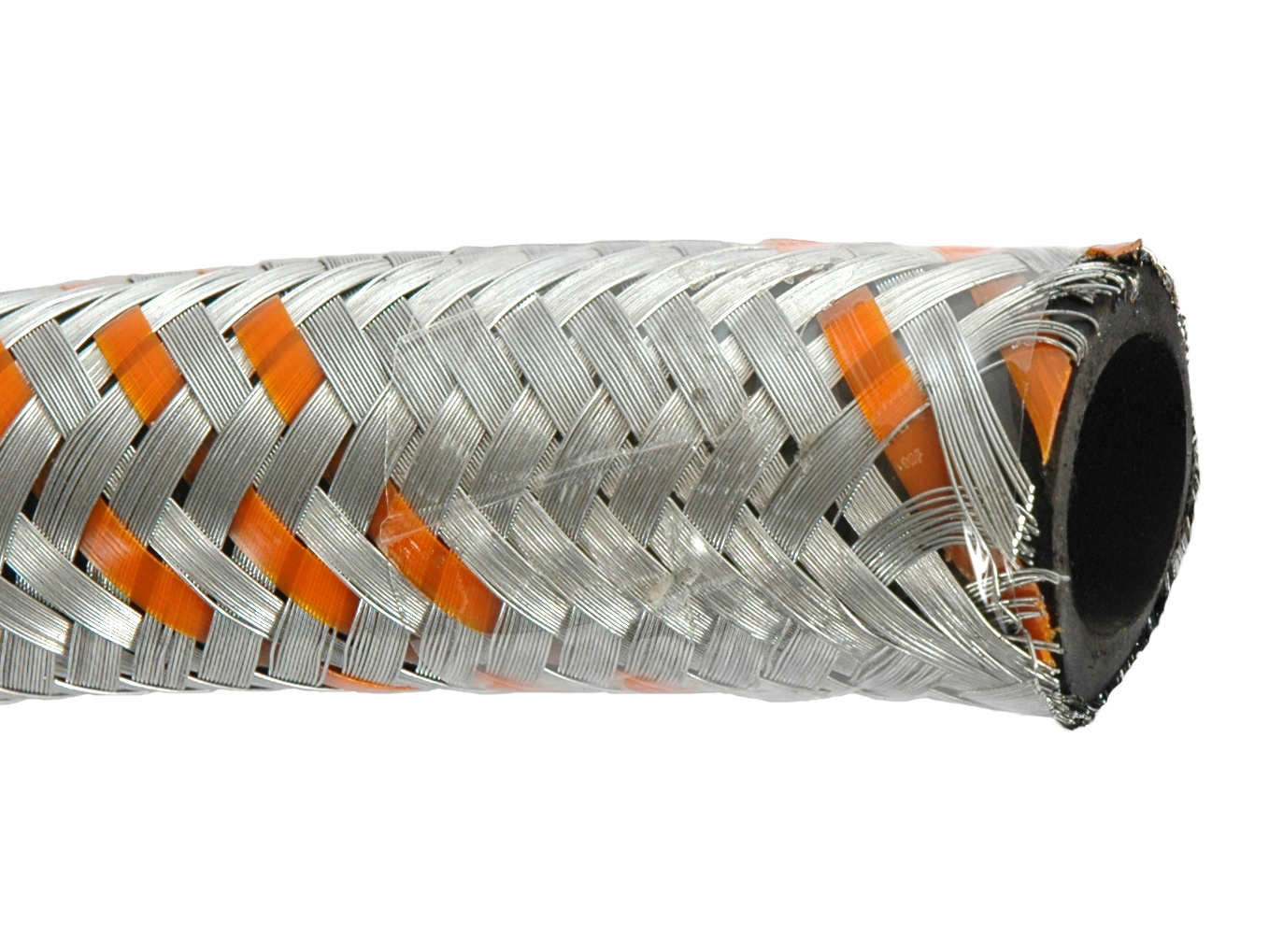

A - fuel hose with steel wire braid DIN73379c

Nw 2 hose with steel braid 4,5x9,5mm

Nw 4 hose with steel braid 5,5x10,5mm

Nw 6 hose with steel braid 7,5x12,5mm

Nw 8 hose with steel braid 9,5x15mm

Nw 10 hose with steel braid 11x17,5mm

Nw 16 hose with steel braid 17,5x26mm

SELECT VARIANT

Partnumber	Description	Diameter inner	Pressure max.	Bend radius
A02	Nw 2 hose with steel braid 4,5x9,5mm	4.5 mm	20 bar	25 mm
A04	Nw 4 hose with steel braid 5,5x10,5mm	5.5 mm	20 bar	25 mm
A06	Nw 6 hose with steel braid 7,5x12,5mm	7.5 mm	15 bar	30 mm
A08	Nw 8 hose with steel braid 9,5x15mm	9.5 mm	15 bar	40 mm
A10	Nw 10 hose with steel braid 11x17,5mm	11 mm	15 bar	45 mm
A16	Nw 16 hose with steel braid 17,5x26mm	17.5 mm	15 bar	70 mm

Area of use

Air, Diesel, Gasoline, Oil, Water

Brand Name

Hydraspecma

Field of application

Air, Diesel, Glycol, Grease, Olie, Water

Standard DIN

DIN 73379 C

Standard ISO

ISO 6806

Temperature max.

+80

Temperature min.

-30

Tube

NBR (Nitrile)
