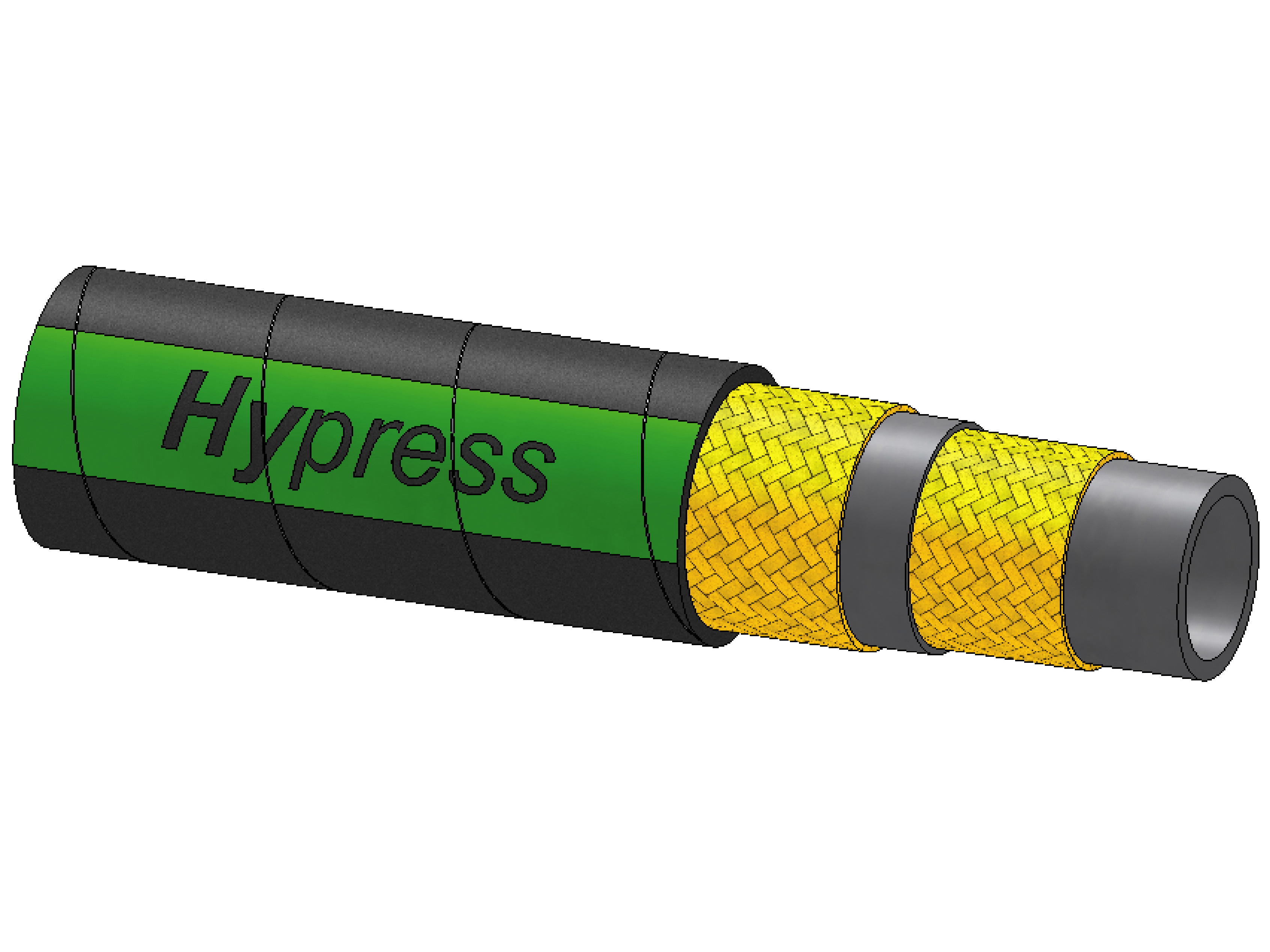

THD2SN hydraulic hoses

THD2SN hydraulic hoses

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Hose size Pressure max. Hose type Bend radius
THD2SN16 1" Hydraulic hose THD - 175 bar - 2SN 1 " 175 bar 2SN 300 mm
THD2SN20 1.1/4" Hydraulic hose THD - 140 bar - 2SN 1.1/4 " 140 bar 2SN 420 mm
THD2SN24 1.1/2" Hydraulic hose THD - 90 bar - 2SN 1.1/2 " 90 bar 2SN 500 mm
Brand Name
I.M.M Hydraulics
Cover
Synthetic rubber
Flameresistant
Yes
Hose type
2SN
Hoseapprovals
BV, DNV, GL, LLOYD, MED, RINA
Standard DIN
DIN EN 853 2SN
Standard EN
EN 853 2SN
Standard ISO
ISO 1436 2SN
Temperature intermittent max.
+120
Temperature max.
+100
Temperature min.
-40
Tube
Synthetic rubber
