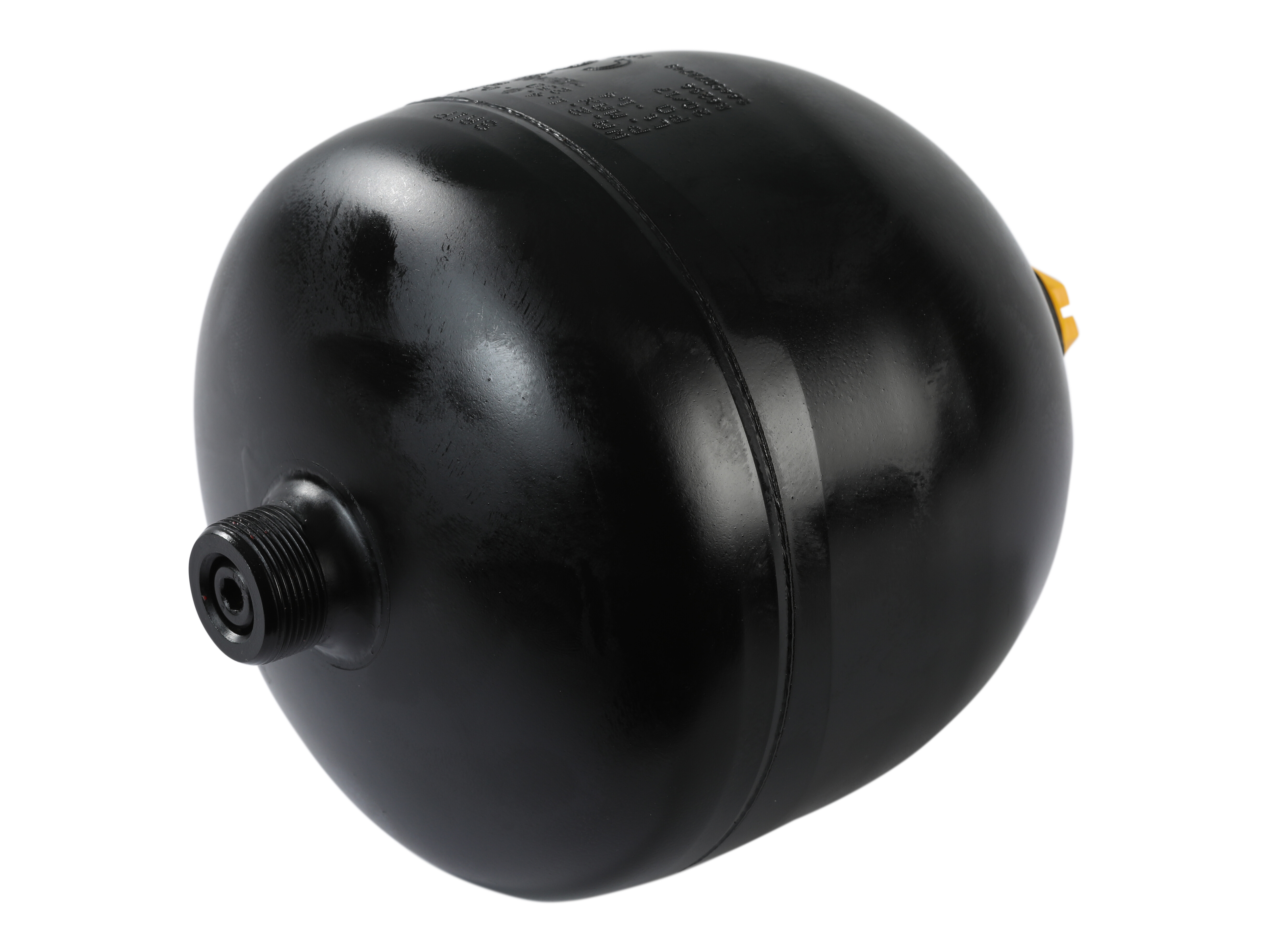

Membrane accumulator 1,4 L WA.2.1,4.1.O.G4.A.250

WA diaphragm accumulator (1.4 L) for 250 bar. Suitable for industrial and mobile hydraulic systems with a need for energy storage, pulse damping and pressure compensation. Connection: G1/2".

Advantages

  • High energy density thanks to compact, spherical design
  • Efficient for shock absorption, vibration and leak compensation
  • Light weight and mountable in all positions
  • Compliant with PED 2014/68/EU and EN 14359:2017

Typical applications

  • Mobile machinery such as tractors and construction equipment
  • Suspension and emergency braking systems
  • Machine tools and automated systems
  • Hydraulic systems with pulsating flow or temperature fluctuations

Supplied without nitrogen precharge. For pre-charging we offer customized solutions - please contact sales.

Partnumber:
WA140000

Package size:
0 pcs

Min. order quantity is:
1 pcs
Saip accumulator clamp 162-174mm
Partnumber: CF159LF210
Brand Name
Saip

Connection Thread
G1/2"

Diameter
153 mm

Dimension A
154 mm

Dimension B
153 mm

Dimension CH
30 mm

Dimension D
20 mm

Dimension E
15 mm

Flow rate max. recommended
90 lpm

Gas valve
M28X1.5

Length
154 mm

Material
Carbon steel

Pressure difference ratio max.
6:1

Pressure max.
250 bar

Separating Element
NBR

Temperature max.
+80 °C

Temperature min.
-40 °C

Test Standards
PED 2014/68/EU, EN 14359:2017, EN13445-3:2021

Type
Membrane

Volume
1.4 ltr
Package size
0 pcs

Barcode
5704334534341

Gross weight
5,62 Kg

Net weight
5,62 Kg

Country of origin
ITA

Intrastat code
73110091

WA diaphragm accumulator (1.4 L) for 250 bar. Suitable for industrial and mobile hydraulic systems with a need for energy storage, pulse damping and pressure compensation. Connection: G1/2".

Advantages

  • High energy density thanks to compact, spherical design
  • Efficient for shock absorption, vibration and leak compensation
  • Light weight and mountable in all positions
  • Compliant with PED 2014/68/EU and EN 14359:2017

Typical applications

  • Mobile machinery such as tractors and construction equipment
  • Suspension and emergency braking systems
  • Machine tools and automated systems
  • Hydraulic systems with pulsating flow or temperature fluctuations

Supplied without nitrogen precharge. For pre-charging we offer customized solutions - please contact sales.
