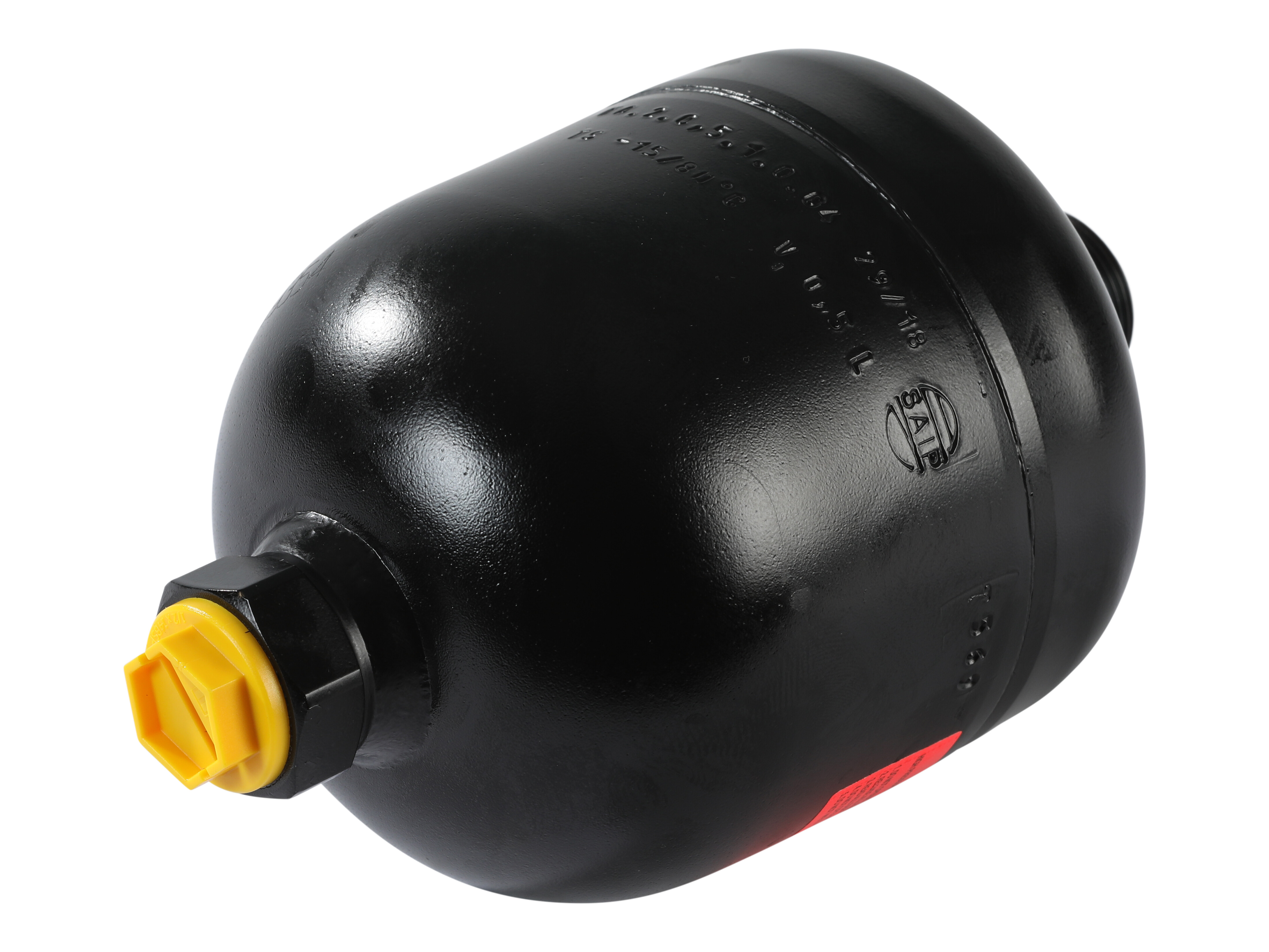

Membrane accumulator 0,35 L WA.2.0,35.1.O.G4.A.250
WA diaphragm accumulator (0.35 L) for 250 bar. Suitable for industrial and mobile hydraulic systems with a need for energy storage, pulse damping and pressure compensation. Connection: G1/2".
Advantages
- High energy density thanks to compact, spherical design
- Efficient for pressure surge damping, vibration and leak compensation
- Light weight and mountable in all positions
- Compliant with PED 2014/68/EU and EN 14359:2017
Typical applications
- Mobile machinery such as tractors and construction equipment
- Suspension and emergency braking systems
- Machine tools and automated systems
- Hydraulic systems with pulsating flow or temperature fluctuations
Supplied without nitrogen precharge. For pre-charging we offer customized solutions - please contact sales.
Artikelnummer:
WA035000
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Brand Name
Saip
Connection Thread
G1/2"
Diameter
97 mm

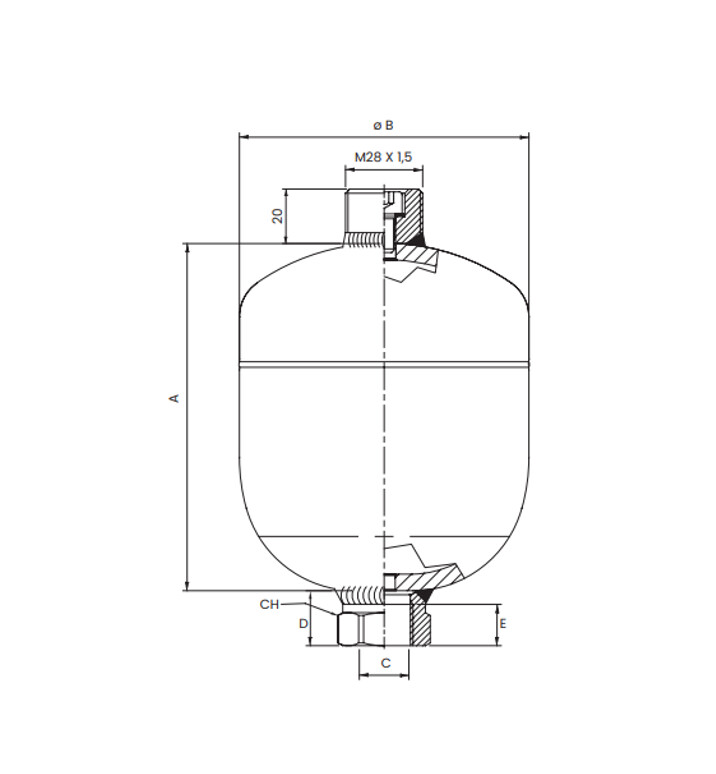

Dimension A
112 mm
Dimension B
97 mm
Dimension CH
30 mm
Dimension D
20 mm
Dimension E
15 mm
Flow rate max. recommended
40 lpm
Gas valve
M28X1.5
Length
112 mm
Material
Carbon steel
Pressure difference ratio max.
8:1
Pressure max.
250 bar
Separating Element
NBR
Temperature max.
+80 °C
Temperature min.
-40 °C
Test Standards
PED 2014/68/EU, EN 14359:2017, EN13445-3:2021
Type
Membrane
Volume
0.35 ltr
Förpackningsstorlek
0 pcs
Streckkod
5704334534198
Bruttovikt
1,70 Kg
Nettovikt
1,70 Kg
Ursprungsland
ITA
Intrastat artikelkod
73110091
WA diaphragm accumulator (0.35 L) for 250 bar. Suitable for industrial and mobile hydraulic systems with a need for energy storage, pulse damping and pressure compensation. Connection: G1/2".
Advantages
- High energy density thanks to compact, spherical design
- Efficient for pressure surge damping, vibration and leak compensation
- Light weight and mountable in all positions
- Compliant with PED 2014/68/EU and EN 14359:2017
Typical applications
- Mobile machinery such as tractors and construction equipment
- Suspension and emergency braking systems
- Machine tools and automated systems
- Hydraulic systems with pulsating flow or temperature fluctuations
Supplied without nitrogen precharge. For pre-charging we offer customized solutions - please contact sales.
