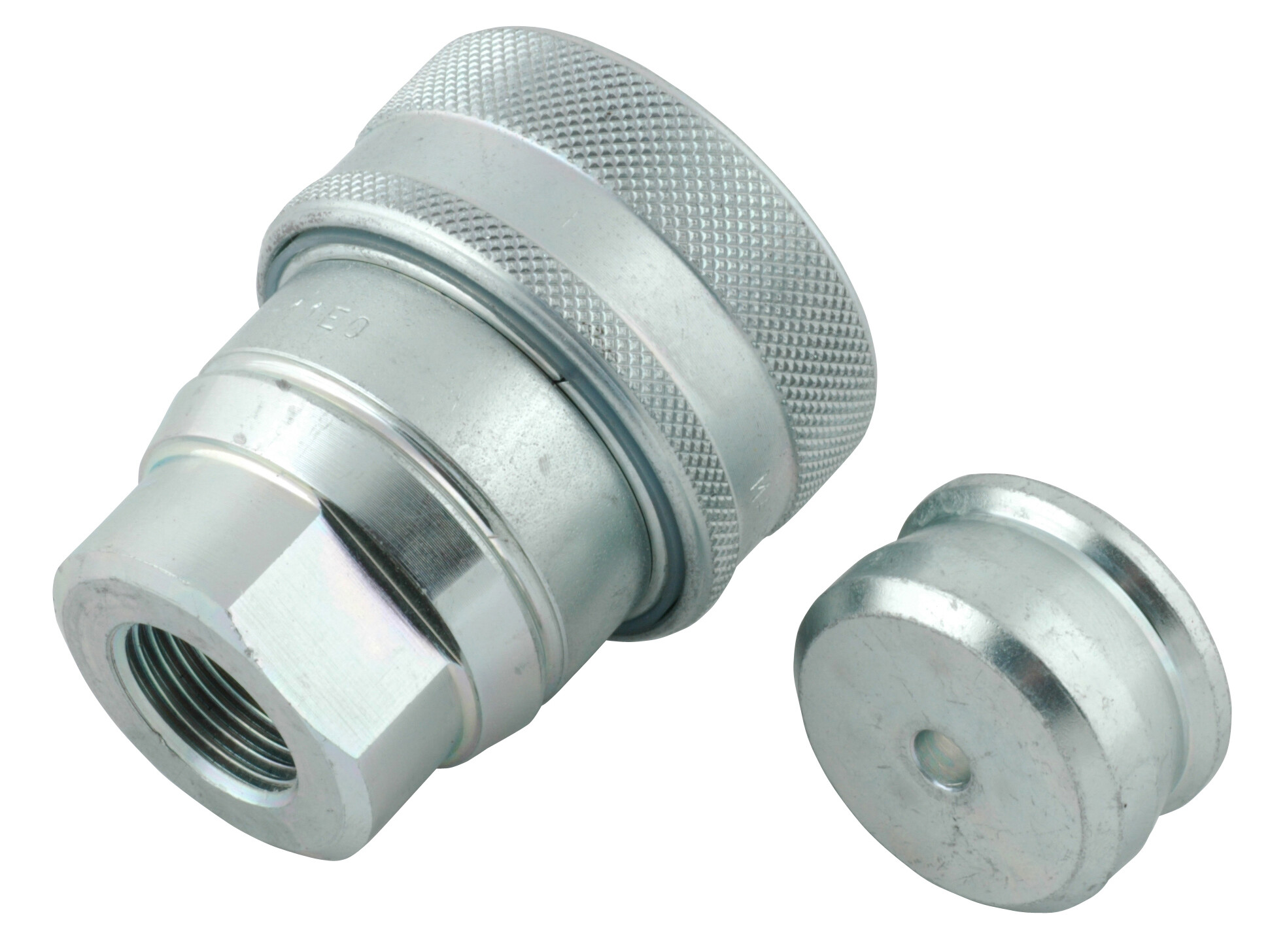

Breakaway coupling female VF - DN06 - M18x1.5 (12L)
Breakaway coupling female for hydraulic quick-coupler connections. The breakaway function is used where a coupling may be exposed to unintended pull-off, allowing separation at the coupling interface.
The coupling is specified with nominal size DN06 and a threaded connection M18x1.5 (12L). Designed to ISO 5676 interface requirements for hydraulic quick couplers.
Typical Applications
- Hydraulic quick-coupler connections where a breakaway function is required
- Hydraulic lines with DN06 quick coupling interface and M18x1.5 (12L) connection
Partnumber:
VF18MF
Package size:
0 pcs
Min. order quantity is:
1 pcs
A
M18x1,5
Arbetstryck
150 bar
Arbetstryck
15 MPa
B
55 mm
D
44 mm
Flöde
40 lpm
Flödeshastighet nominell LMin
40 lpm
Gänga inv. metrisk
M18x1,5
Gänga utv. metrisk
M18x1,5
Koppling under tryck
Not allowed
Kraft för anslutning
100 N
Modell kod
VF 1815 F
Märke namn
Faster
Packningsmaterial
NBR
Rostbeständighet
500 hours salt spray ISO 9227
Sexkant
27 mm
Standard ISO
ISO 5676
Storlek
10 mm
Storlek
3/8 "
Störrelse nominella
06
Temperatur max.
+125 °C
Temperatur min.
-25 °C
Tillverkningsmaterial
Steel
Tryck max.
150 bar
Tryck max. kopplad
150 bar
Tryck spräng min.
2500 bar
Tryckeliminator
No
Ventiltyp
Flat
X
27 mm
Ytskiktbehandling
MATE 500 (CrIII)
Package size
0 pcs
Barcode
5704334306184
Gross weight
0,38 Kg
Net weight
0,38 Kg
Country of origin
ITA
Intrastat code
84812010
Breakaway coupling female for hydraulic quick-coupler connections. The breakaway function is used where a coupling may be exposed to unintended pull-off, allowing separation at the coupling interface.
The coupling is specified with nominal size DN06 and a threaded connection M18x1.5 (12L). Designed to ISO 5676 interface requirements for hydraulic quick couplers.
Typical Applications
- Hydraulic quick-coupler connections where a breakaway function is required
- Hydraulic lines with DN06 quick coupling interface and M18x1.5 (12L) connection
