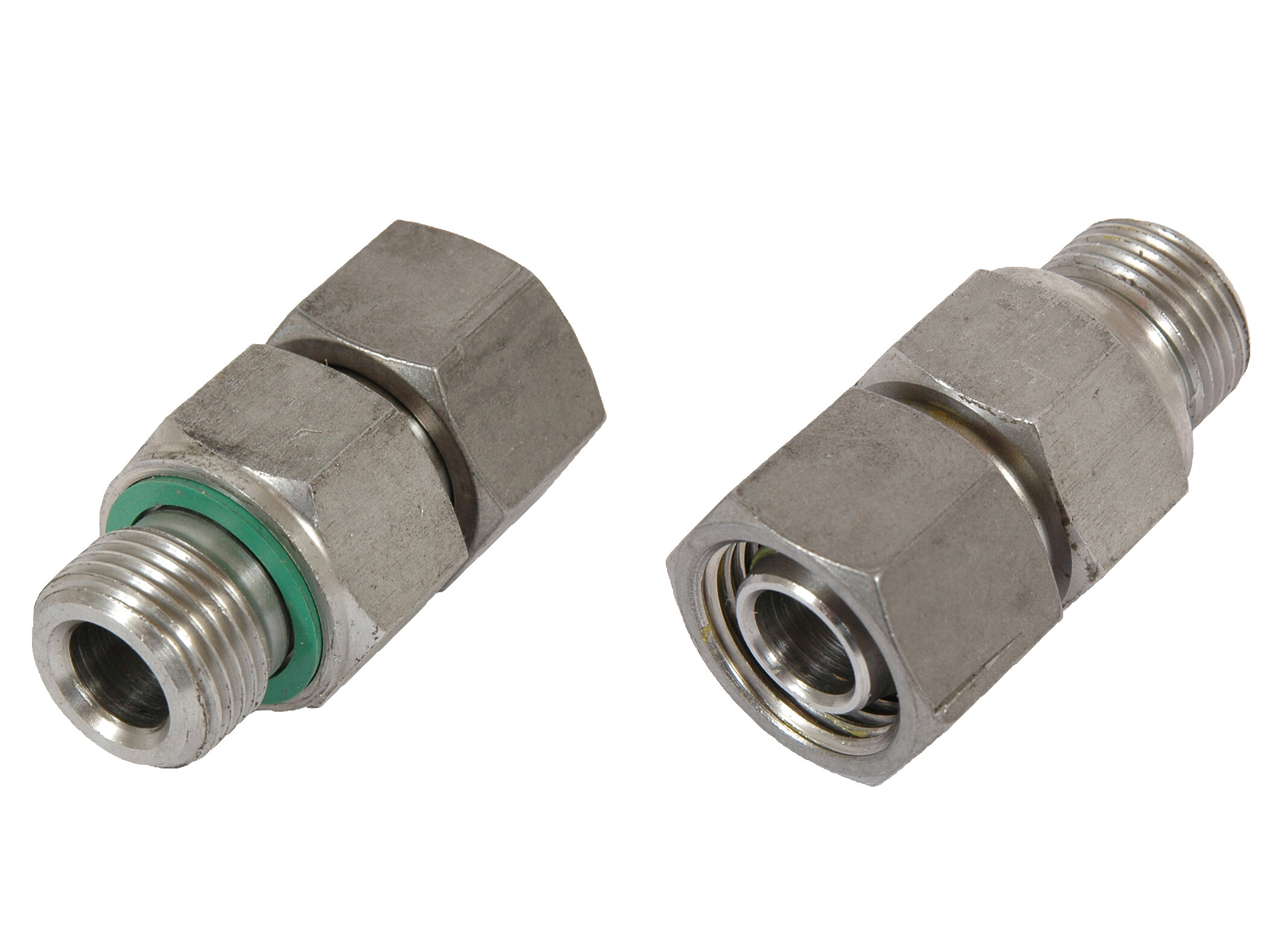

Stud fitting- ø12S female x 1/2" BSP - o-ring seal -AISI316
Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
VA12SR12DK/7
Package size:
0 pcs
Min. order quantity is:
1 pcs
D3
8 mm
Diameter rör
12 mm
Dimension i
14 mm
Gevind T
M20x1,5
Gänga inv. metrisk
M20x1,5 MM
Gänga utv.
G 1/2 BSP
L1
50 mm
L2
34,4 mm
Materialkvalitet
1.4571 / AISI316Ti
Modell kod
EGVD 12 SR 1/2 WD
Märke namn
Volz
Packningsmaterial
FKM/FPM (Viton®)
REACH compliant
Yes
RoHs compliant
Yes
S1
27 mm
S2
24 mm
Serie
S
Säkerhetsfaktor
4
T2
115 mm
Temperatur max.
+200 °C
Temperatur min.
-25 °C
Thread T2
G 1/2 BSP
Tillverkningsmaterial
Steel
Tryck max.
630 bar
Vinkel
0 °
d1
12 mm
d2
8 mm
i
14 mm
Package size
0 pcs
Barcode
5704295453156
Gross weight
0,13 Kg
Net weight
0,13 Kg
Country of origin
DEU
Intrastat code
73072910
Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Note: Opening 3D files requires a program that supports the file format
