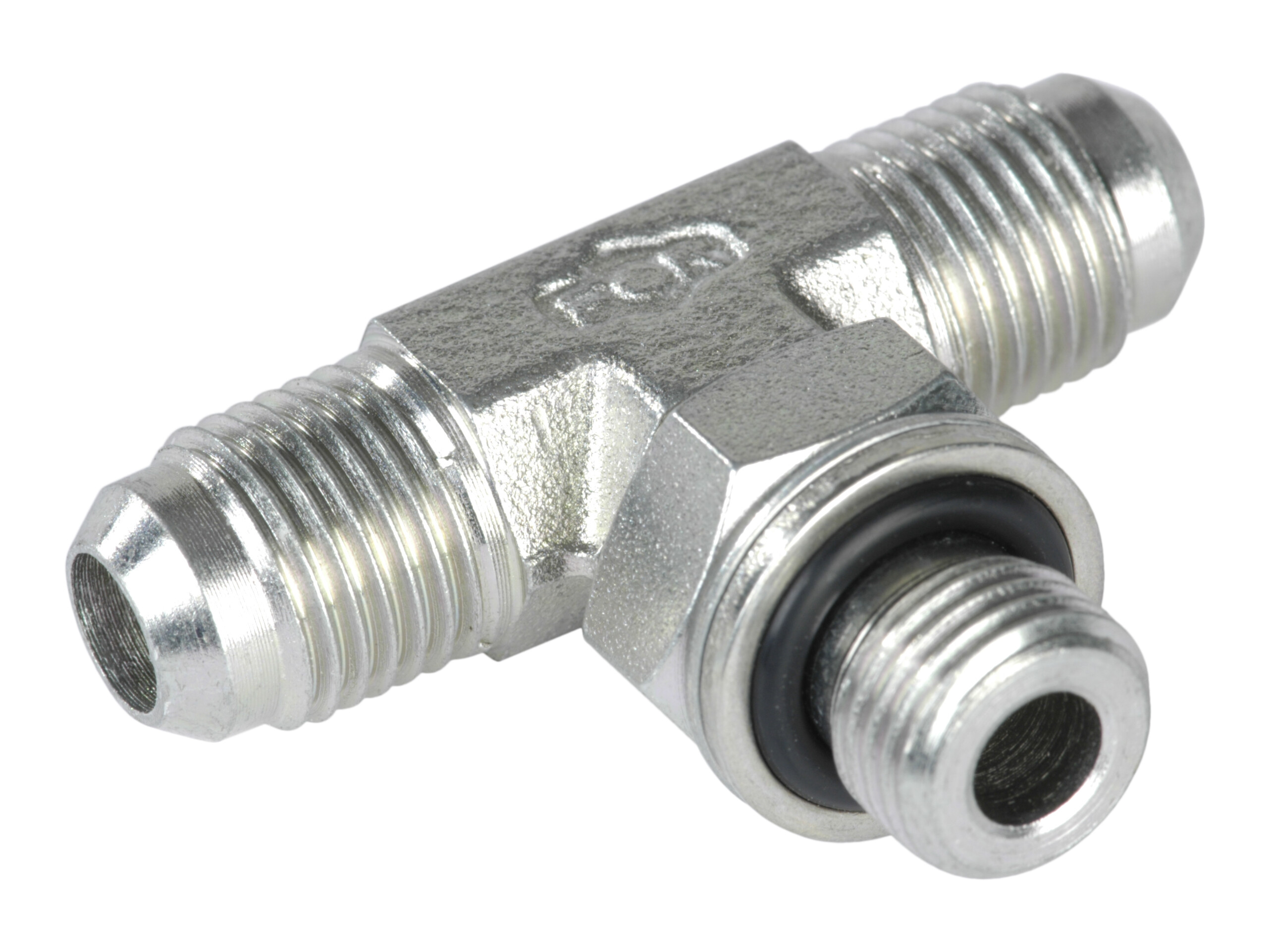

S610-10-13G Tee BSP

T-forskruning stilbar 9/16-18 JIC udv x 1/4 BSP udv

Partnumber:

TOL-10-1/4

Package size:

0 pcs

Min. order quantity is:

1 pcs

Accessories (2)

Bushing Ø10

Partnumber: B-10

Nut 9/16 -18 JIC NW 17 mm

Partnumber: J-10

Specifications
Dimensions and shipping

27 mm

Brand Name

FOR

31,5 mm

19 mm

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Diameter pipe

10 mm

Dimension J1

9/16-18 JIC

G 1/4 BSP

9/16-18 JIC

Material

Steel

Model code

A111034/1013

Pressure max.

350 bar

Surface treatment

Electro-galvanized / White chromatized

10 mm

Thread outer

9/16-18 JIC

Thread outer

G 1/4 BSP

Package size

0 pcs

Barcode

5704334106418

Gross weight

0,07 Kg

Net weight

0,07 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

T-forskruning stilbar 9/16-18 JIC udv x 1/4 BSP udv

Note: Opening 3D files requires a program that supports the file format
